| Fender Super-Amp | |||||||||||||||||||||||||||||||||||||||
| This is a Fender Super-Amp that I'm working on restoring to close to it's origonal condition. This amp had it's fase replaced with some type of fabric streached over a peice of plywood spray painted neon orange. The rest of the amp was spray painted black. Yuck. Later on the speakers were replaced due to holes riped in the speaker cones, but one was hoocked up backwards making it extremly quiet. Also the tubes were replaced improperly with the wrong type of tube. So far I have switched the polarity of one of the speakers and am now looking for replacement tubes. When I finshed restoring it I will add some more pictures to this page. |
|||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||

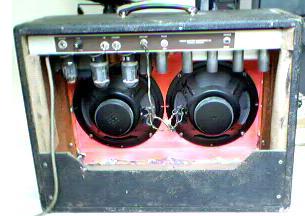

| I can't belive someone would do this to such a great amp, this mess will soon be repaired. | This is the back, the speakers were replaced by the previus owner (polarity was reversed on the left speaker), you can see the origional Tolex on the edge. | ||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||

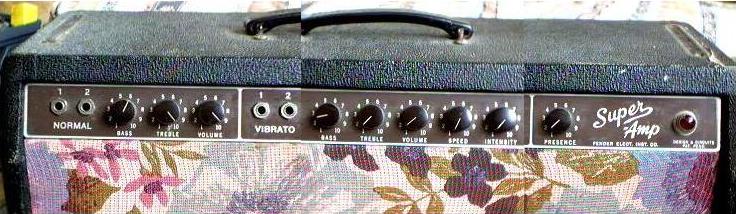

| Here is a view of the controls. | This is a view of the back. Some of the toobs were replaced with improper ones by the origonal owner |
||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||

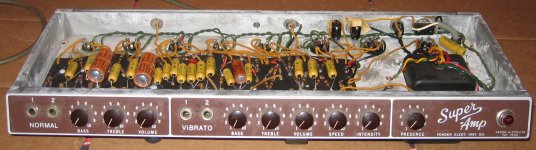

| A view of the elctronics from above. They seem to be relativly untouched except for the tubes. | |||||||||||||||||||||||||||||||||||||||

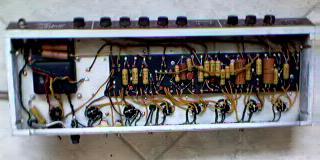

| The inside of the elctronics shown above are in almost new condition due to the fact that it was used for a few years and then put in storage. | |||||||||||||||||||||||||||||||||||||||
 |
 |
||||||||||||||||||||||||||||||||||||||
| This is a view of the tubes and electronics separate form the amp. Unlike other amps that I have seen this one only has 5 tubes where others have 6 | |||||||||||||||||||||||||||||||||||||||
| This is a lable that I found inside the amp, but I haven't found any info on the electronics | |||||||||||||||||||||||||||||||||||||||
