| YAMAHA WARRIOR 550 PROJECT |
| 1987 Yamaha Warrior Frame w/ 1983 Yamaha Seca 550 Motor Started 9/03 Lapeer, MI Member of Michigan Dirt Slingers off-road club |

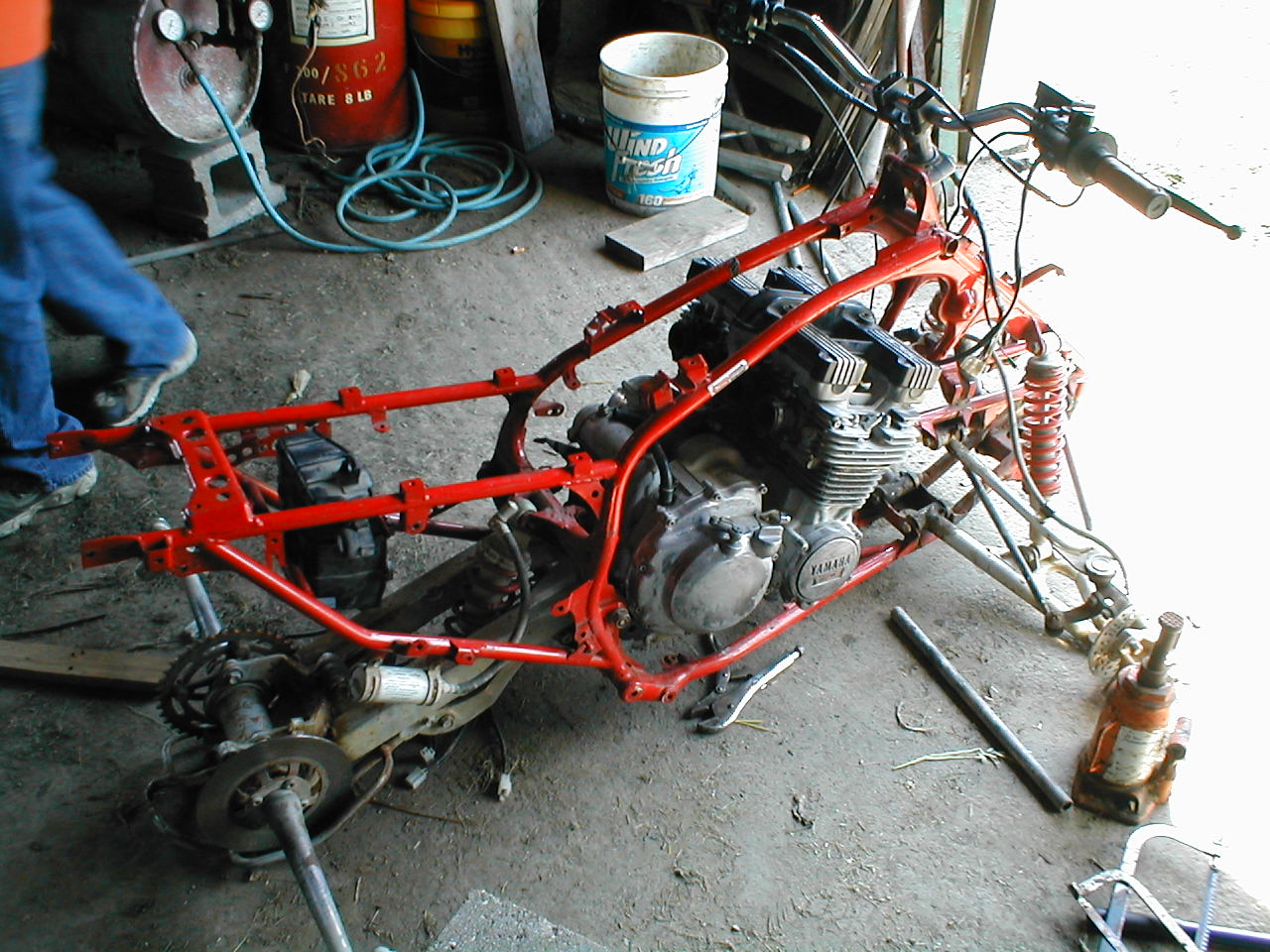

| Had to cut away some of the front frame and then jacked frame open to allow motor to fit (floorjack) Oil filter hangs slightly below bottom frame rails. A custom skid plate will have to be made. |

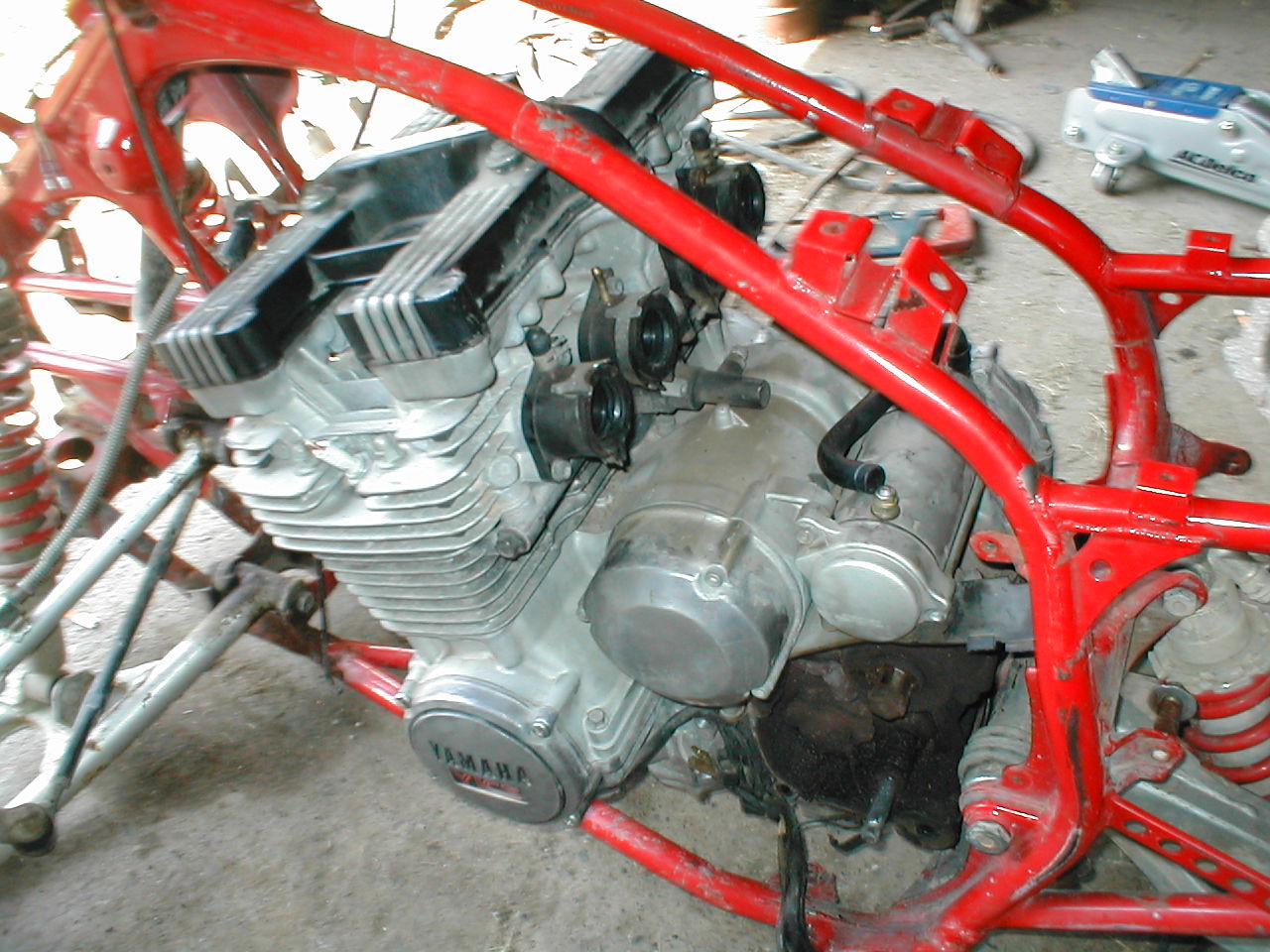

| Motor fits perfectly. Stock rear motor mount was used. Need to custom fabricate front mounts. A sprocket from a 1984 KX 250 has to be used to fit the seca spline and use a 520 chain. |
 |

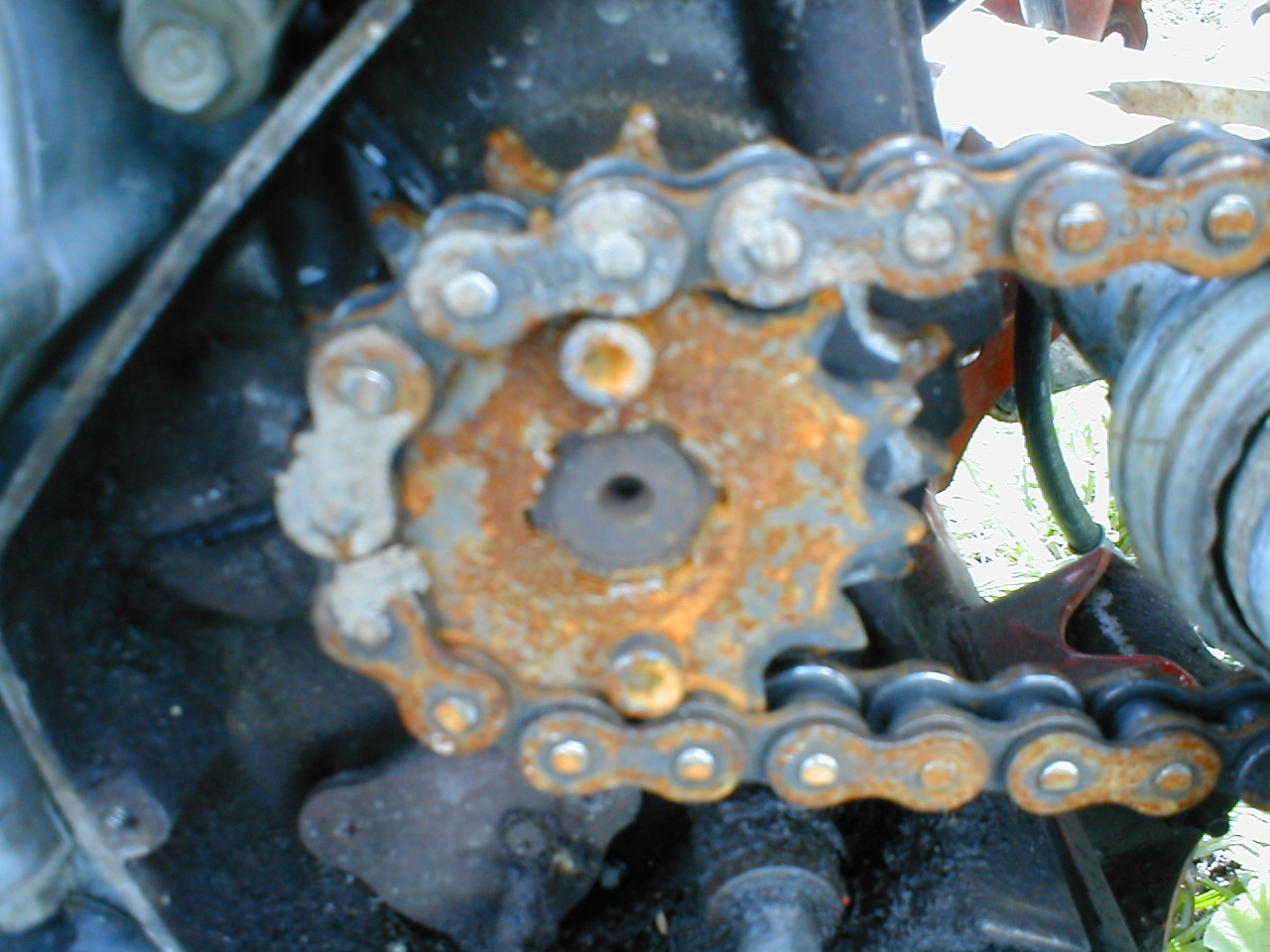

| A sproket from a kx dirt bike had to be used for a lower gear ratio. It fit it on the spline but had to bolt it to the original Seca sprocket to align with the rear sprocket |

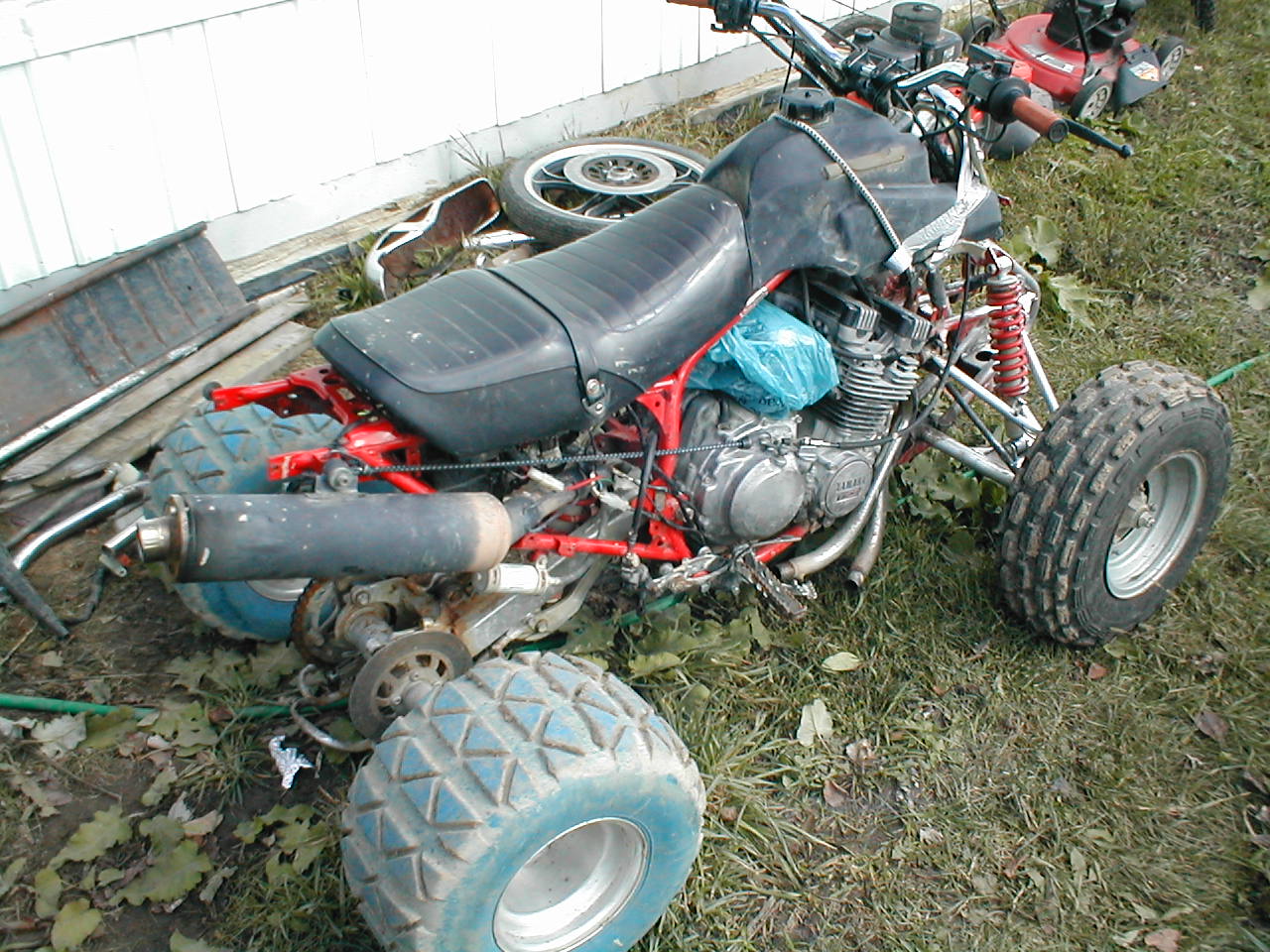

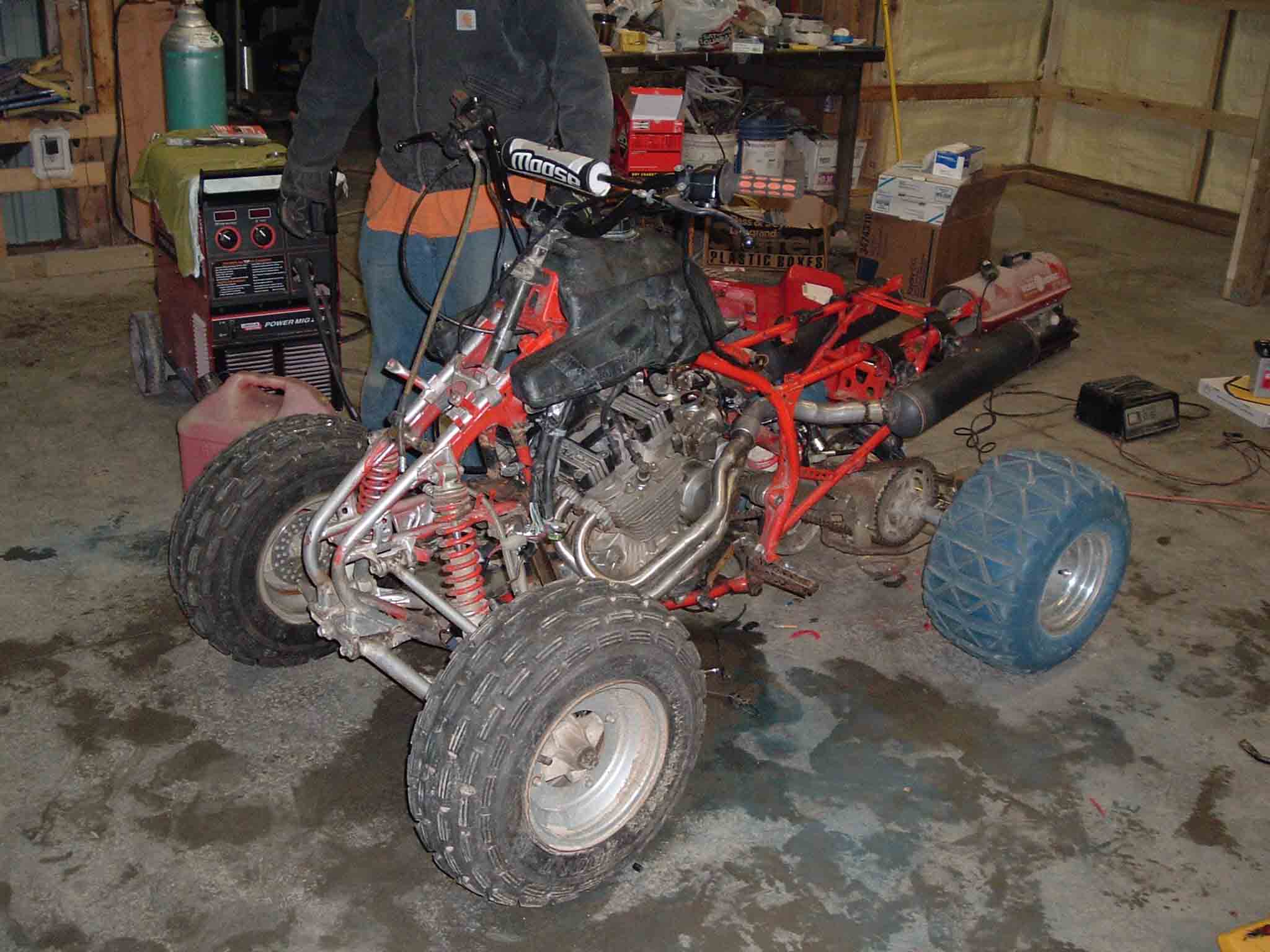

| Here is the quad with tires on. The Seca seat and tires are only temporary so we can test ride it I will buy better tires later when complete |
 |

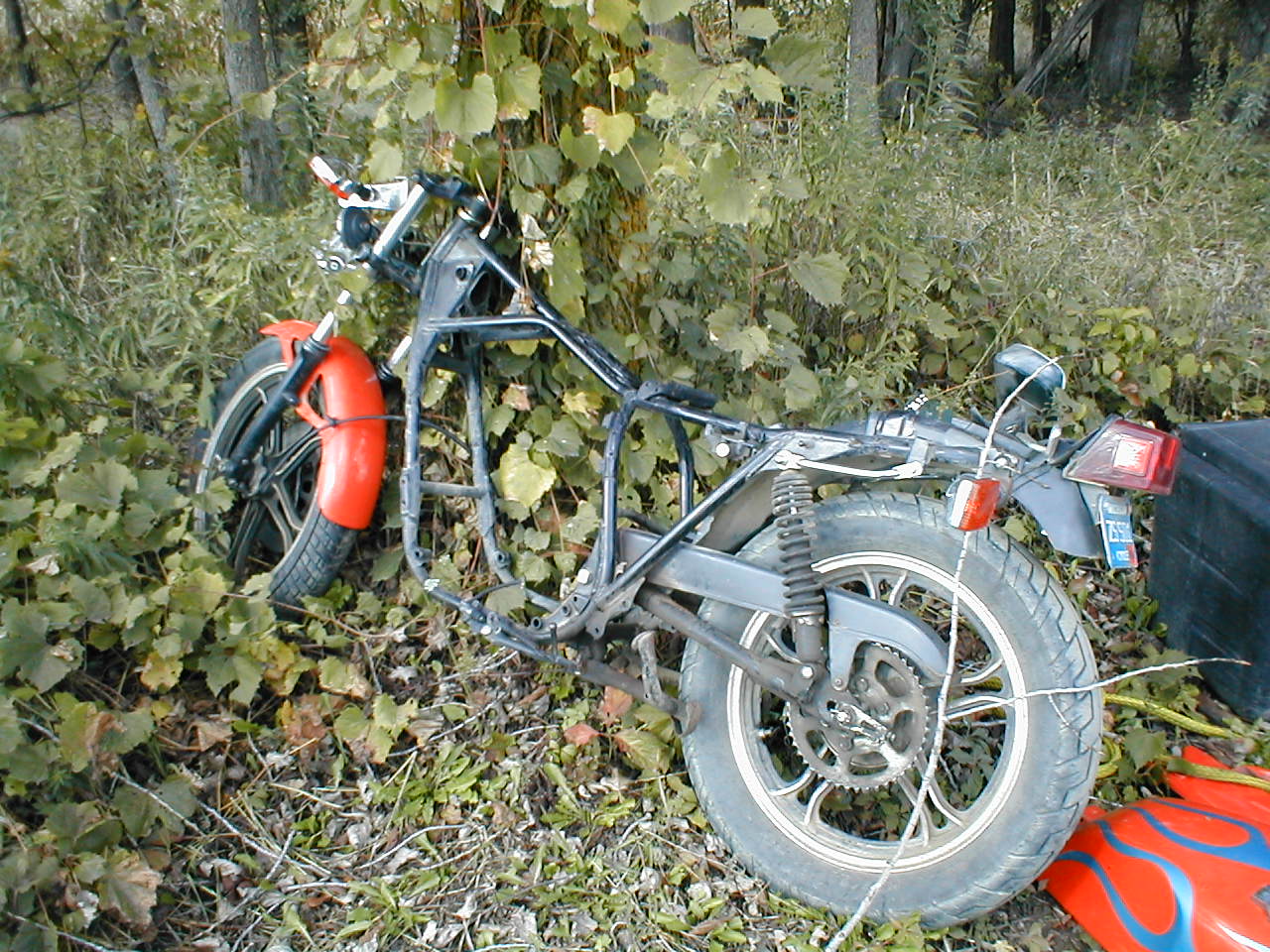

| Here is the donor bike |
 |
 |
| Here's the quad mine has to beat, a 2003 KFX400, rider WickedKFX, also a member of Michigan Dirt Slingers! |
 |
 |
 |

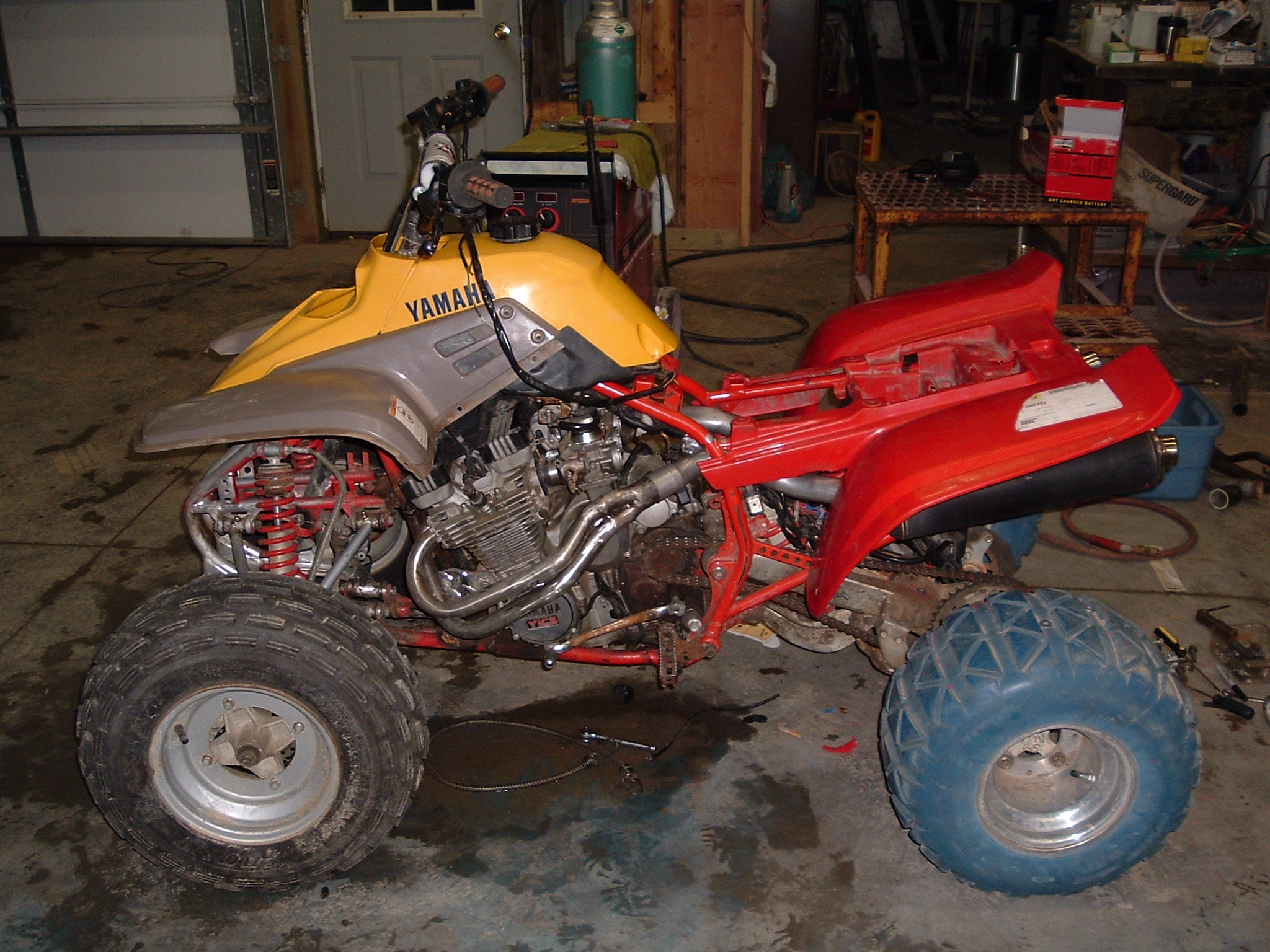

| New custom exhaust is now installed. Two stock KFX muffler were used. |

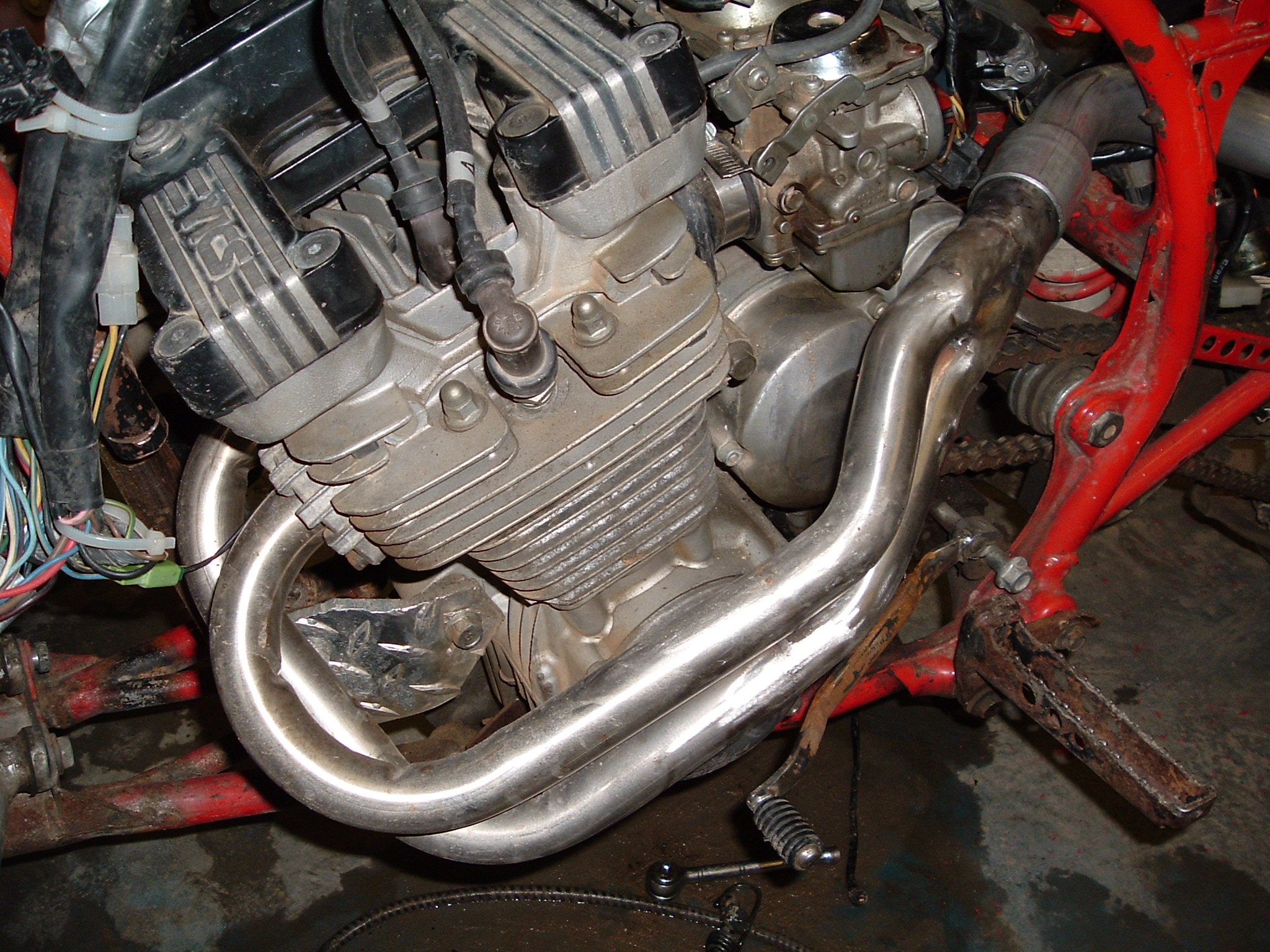

| Closeup of custom header pipes made out of stainless steel. |

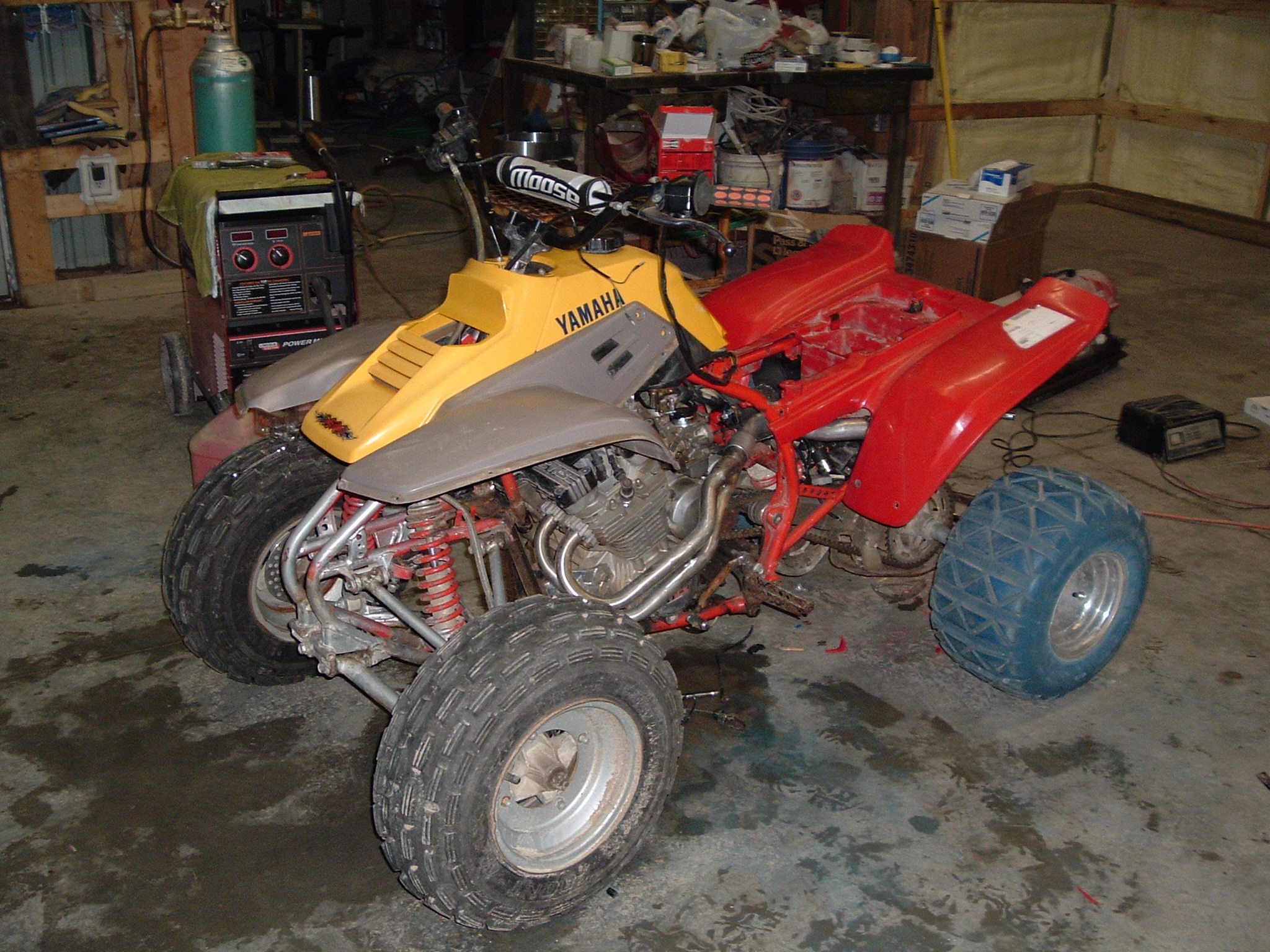

| The Warrior 550 project is near completion. Have all the plastic and the seat. Will have to paint plastic as you can see. |
 |
| Big motor for a small quad! |
