72

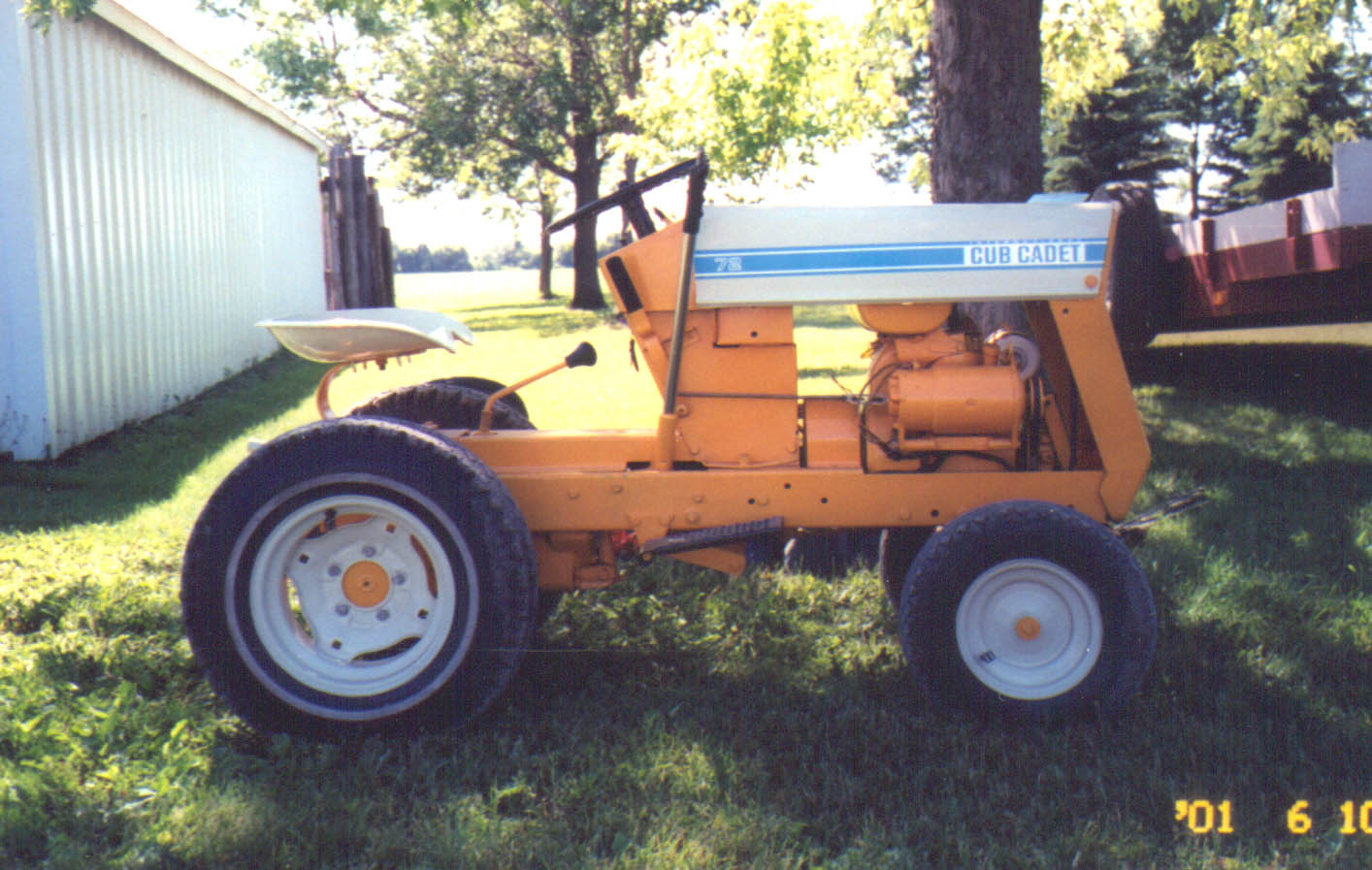

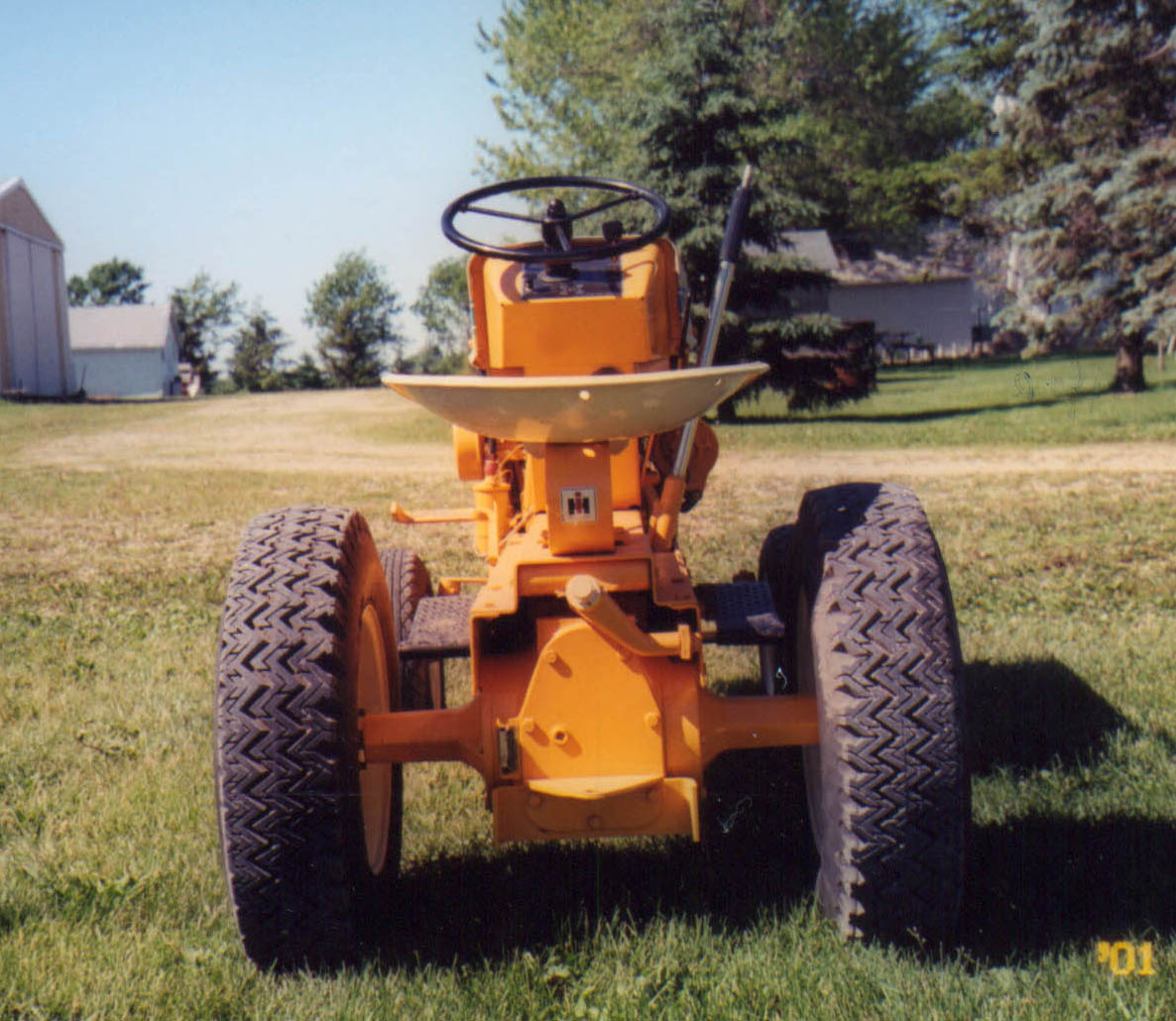

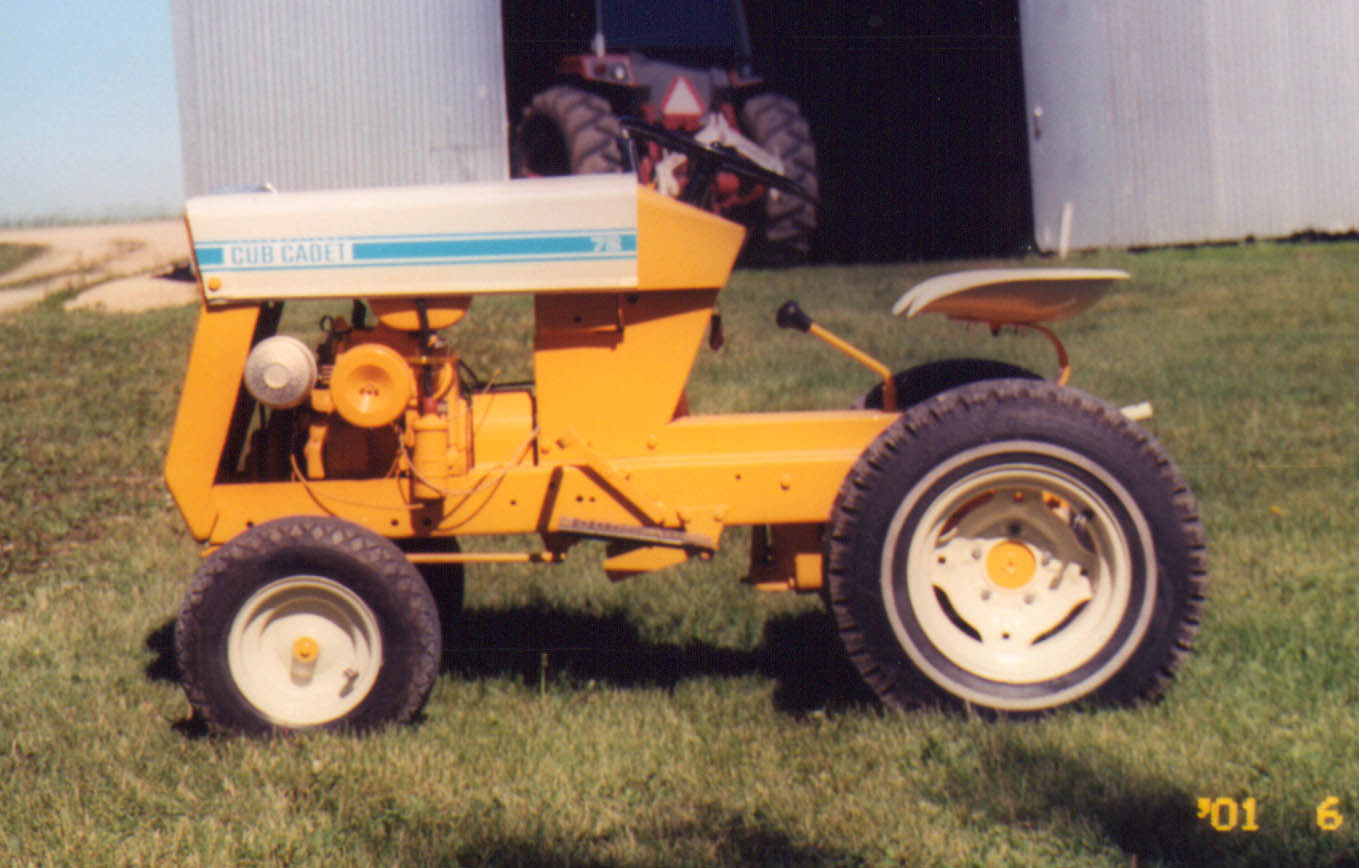

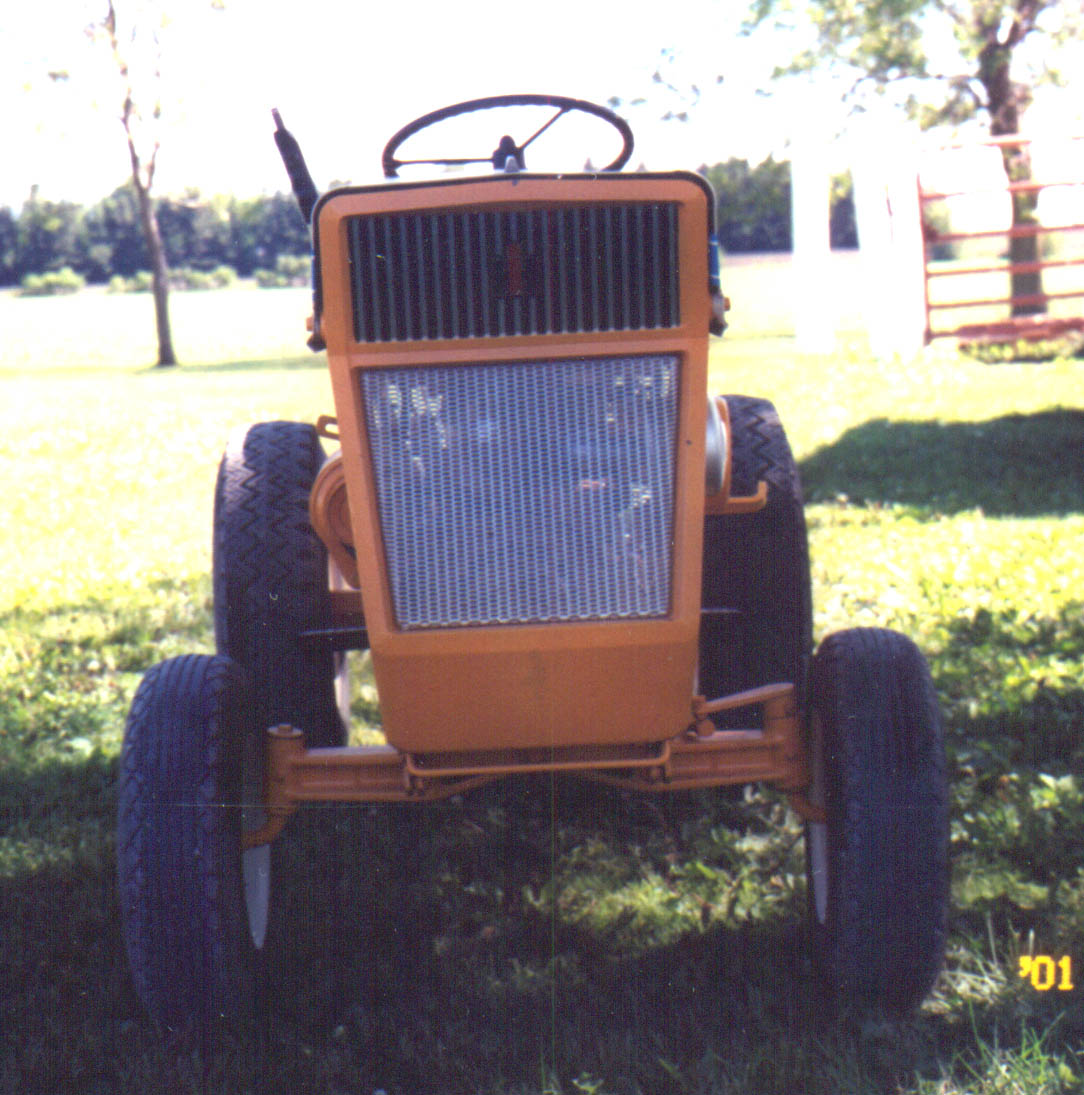

Pictures courtesy of Nick Queensland, Grand Meadow, MN
ORIGINAL SPECIFICATIONS
**Original Specifications are not necessarily represented in the above photos**
Tractor Model | 72 |
Engine | K-161 S or K-161 T (recoil) |
Horsepower Rating | 7 |
Transmission | Gear Drive |
Foot Brake | Disc type, on trans shaft |
Clutch | Double-plate, dry disc, spring loaded |
Front Wheels | 4.80/4.00-8 |
Rear Wheels | 6-12* |
*Other pneumatic tire sizes are/were available |
ACCESSORIES AND ATTACHMENTS
Landscaping and Ground Maintenance | Gardening Equipment | Mowing Equipment | Sweeping and Spraying | Utility Equipment |
