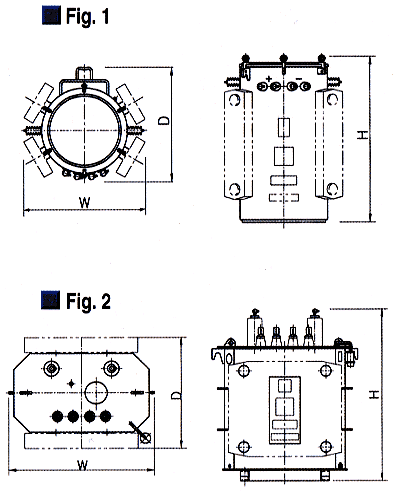

ingle Phase Trasnformer     6.6KV SINGLE PHASE TRANSFORMER Ratings ■ Frequency : 60Hz, 50Hz ■ High Voltage : 6600V, 3300V ■ Low Voltage : 210/105V, 230/115V, 240/120V                          , 460/230V, 480/240V ■ Tap Voltage : 6900/6600/6300/6000/5700V                          3450/3300/3150/3000/2850V           Characteristics & Dimensions   ■ Single phase 6600/3300V-L.V  Capacity  Eff. Voltage  Exciting     Dimension  Oil Total Fig.  (KVA) (%)  Reg  Current   W D H (ℓ) WT. NO.     (%) (%) (㎜) (㎜) (㎜)   (㎏)    10  97.5  2.1  2.0  600  540  720  38  125 1  15  97.7  1.9  1.7  620  560  740  45  145  20  97.8  1.8  1.6  640  580  770  50  170  30  98.0  1.6  1.6  670  610  820  65  220  50  98.1  1.5  1.6  760  670  850  90  220  75  98.1  1.5  1.5  840  690  900  130  400  100  98.2  1.5  1.5  970  730  950  140  475  150  98.2  1.5  5.5  810  920  1180  165  680   2  200  98.2  1.5  5.5  850  1100  1200  190  830  250  98.3  1.4  5.0  850  1250  1300  220  980  300  98.3  1.4  5.0  850  1300  1350  225  1100  400  98.4  1.4  4.5  900  1350  1400  250  1250  500  98.4  1.4  4.5  1000  1400  1450  340  1400  600  98.4  1.4  4.5  1400  1450  1500  400  1600  750  98.5  1.4  4.5  1450  1500  1570  490  1700  1000  98.5  1.4  4.0  1550  1600  1800  580  2100

With experience of developing all kinds of transformer ranging from 10 kVA to 10005kVA, our produces high-quality and reliable transformers that meets international and domestic standards such as KS, ESB, IEC, ANSI, IEEE, NEMA, BS, JIS, and JEC.
