| 1968 Firebird Front Lights Wiring Harness Routing |
| While looking at some information on '68 Firebird wiring, I noticed some differences in the location of the harness, as installed by Pontiac. This page shows some differences. |
 |
 |
 |
 |
 |
 |
 |

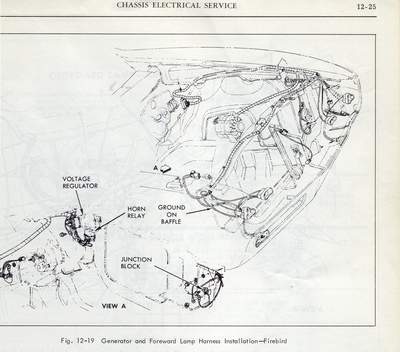

| The 1968 Pontiac Service Manual and the Pontiac Parts Book Illustrations show the harness routed hidden within the left fender. |
| My '68 Firebird has the wiring routed along the inner fender well. The washer bottle hose runs within the fender,. |
| It is secured by a couple of this type strap. |

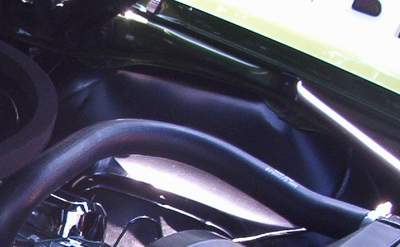

| An undisturbed '68 has the wiring on the bottom of the well |

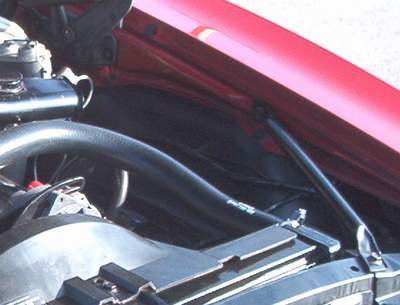

| Another nice '68 has the harness on the well but high on it. |
| Thanks to Bob T. for these 2 photos of his and a friends '68. |
| This beautiful '68 has the harness hidden within the fender. |

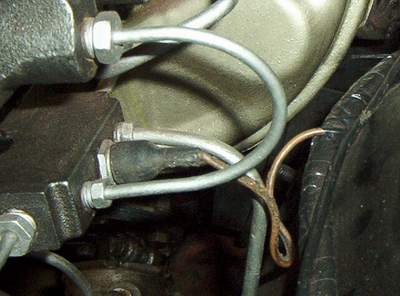

| Does this low brake fluid level circuit wire, which drops out of the harness have anything to do with the difference? |
