| 68 Firebird Fuel Line - 400 |
 |

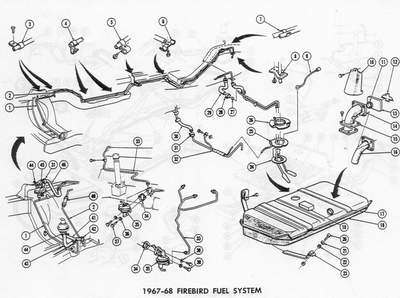

| This shows a factory dual fuel line installation. You will note that the lines have been painted but they are old pitted, but sound, originals Some day, I will be replacing the lines. The two lines are a 5/16 fuel line and a 1/4 return line. |
 |
 |
| looking front to rear: The one line starts from the fuel pump out of view on the right. It crosses sides on the front side of the cross frame |
| Looking forward: The other line starts from the fuel pump out of view on the left. It crosses sides on the rear side of the cross frame |
 |
 |
 |
| Looking forward from right side; The two lines join up on the right side of the engine rear and run along the subframe. They cross over to the inside of the rocker panel area toward the rear of the frame. New body mounts are in planning. |
 |

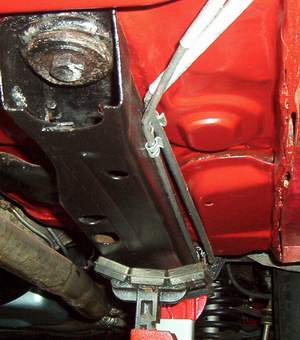

| Looking rearward from right side; The two lines run along the inside rocker panel area. They turn just in front of the right rear spring to avoid the spring. |
 |

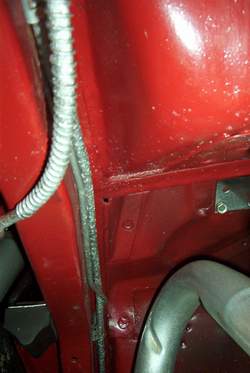

| Looking rearward from right side; After jogging over at the apring front, the lines angle upward along the right rear frame rail to an area adjacent to the sending unit . |
