Exhaust System |
This is the dual exhaust, 400HO (with long branch manifold), convertible system of my car. Pictures were taken at various times during restoration work. |

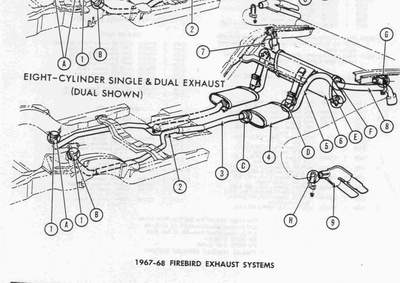

The Pontiac parts book shows the front pipe(s) consisting of (2) and (3) pipes. My system has been replaced several times over the years and I don't recall any time that the front pipes are not single piece. |

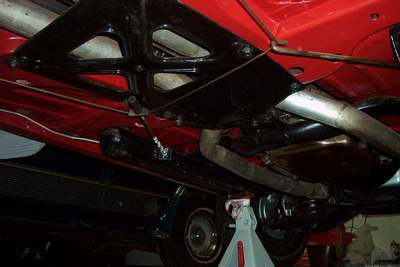

The convertible brace offers a challenge to route the system without interference and rattles. |

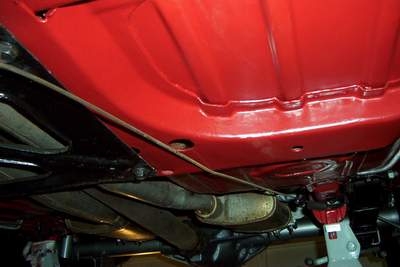

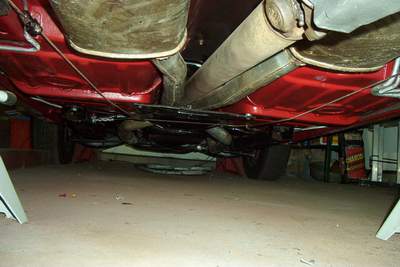

Two resonators |

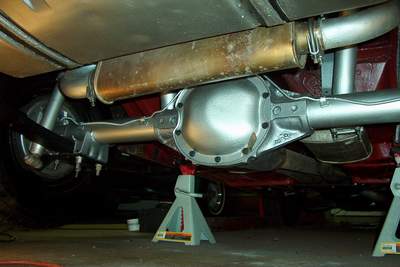

The muffler has two pipes in and two out. Axle looks better here, huh? |

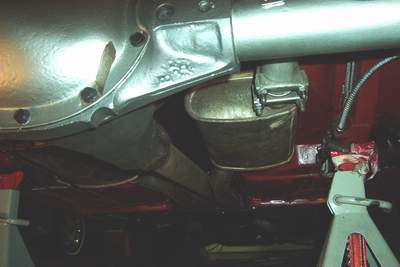

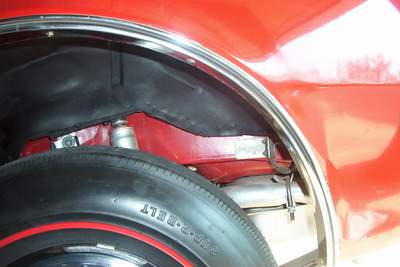

A rear hanger assembly is visible here behind the tire.. |

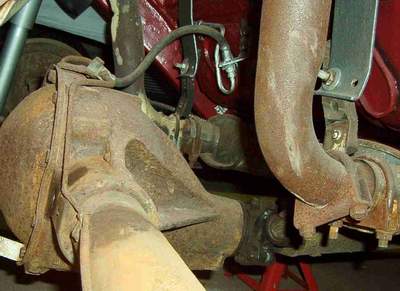

These hanger assemblies are the first thing to hold the system since the manifold. |

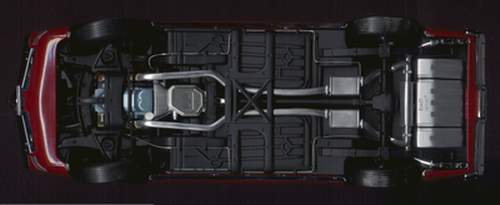

Exact Detail actually captured the system pretty well with their 68 Convertible Model. They just didn't capture the very heavy body color overspray that my car received from the factory. |
