| '68 Firebird Documentation Errors |
 |
| There are errors in Pontiac Documentation relating to the '68 Firebird. This page will be used to document them as I find errors. |
|
| Looking at the axle code and ratio for my car yielded confusing results when looking at different documentation. I have not examined other codes and ratios. |
| Correct Code |
|
| Axle Code and Ratios - Below |
| Fuel Line Routing - Under Construction |
| Axle Code and Ratios |
 |
|
 |

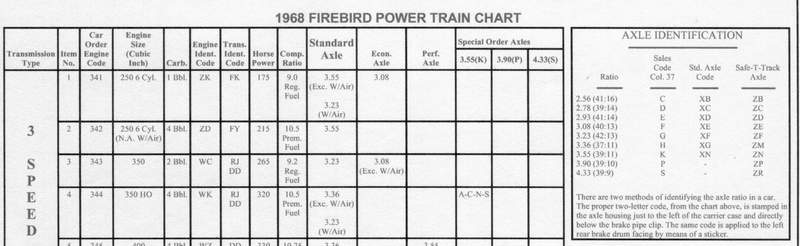

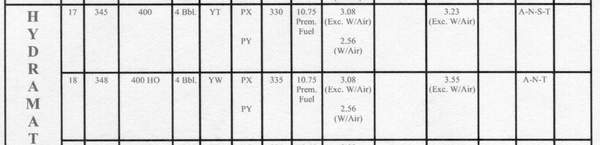

| Sales Guide - Shows the Safe-T-Track axle for the 400HO TH400 with AC is 2.56 ratio and ZB axle code. |
| Incorrect/Confusing Codes |
 |

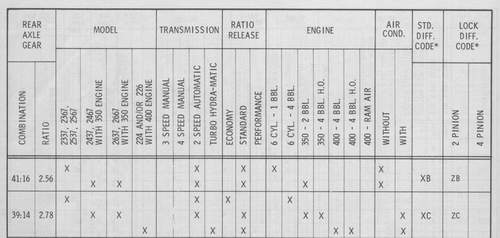

| '68 Pontiac Service Manual Indicates AC equipped cars got a 2.78 axle not 2.56 (I have a ZB stamped axle so I believe this is wrong) |
 |

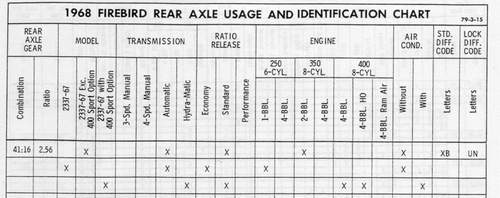

| Pontiac Part Book Illustrations Section Shows the axle is 2.56 but is a UN code (what the heck is that?) |
