const
escape=4.0;
{ escape value }
attract=0.0001;
{
attractor sensitivity }
const
Black = 0;
Blue = 1;
Green = 2;
Cyan = 3;
Red = 4;
Magenta = 5;
Brown = 6;
LightGray = 7;
DarkGray = 8;
LightBlue = 9;
LightGreen =10;
LightCyan =11;
LightRed =12;
LightMagenta =13;
Yellow =14;
White =15;
function GetRGBColor(color:byte):longint;
begin
case Color of
black : GetRGBColor := RGB(0,0,0);
blue : GetRGBColor := RGB(0,0,128);
green : GetRGBColor := RGB(0,128,0);
cyan : GetRGBColor := RGB(0,255,255);
red : GetRGBColor := RGB(128,0,0);
magenta : GetRGBColor := RGB(128,0,128);
brown : GetRGBColor := RGB(128,128,0);
lightgray : GetRGBColor := RGB(192,192,192);
darkgray : GetRGBColor := RGB(128,128,128);
lightBlue : GetRGBColor := RGB(0,0,255);
lightGreen : GetRGBColor := RGB(0,255,0);
lightcyan : GetRGBColor := RGB(0,255,255);
lightRed : GetRGBColor := RGB(255,0,0);
lightmagenta : GetRGBColor := RGB(255,0,255);
yellow: GetRGBColor := RGB(255,255,0);
white : GetRGBColor := RGB(255,255,255);
else
GetRGBColor := RGB(0,0,255);
end;
end;
////////////////////////////////////////////////////////////////////////////////

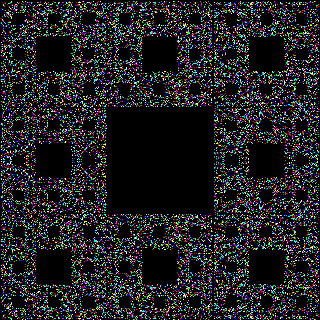

procedure Carpet(ABitmap: TBitmap);
{ compute and display Sierpinski carpet
using Michael Barnsley's IFS algorithm
}
var
x, y : double;
{ pixel
coordinates }
i : integer;
{ loop counters}
k : integer;
{ row selector }
d : array[1..8,1..6] of double;
{ holds data of IFS attractor }
Rect : TRect;
Multiplier : double;
Iterations : word;
MaxX,
MaxY : integer;
CurColor : TColorRef;
xValue,
yValue : integer;
begin
SetRect(Rect, 0, 0,
ABitmap.Width, ABitmap.Height);
with Rect do
begin
MaxX := right - left;
MaxY := bottom - top; {
find maximum Y coordinate }
if (MaxX=0) or (MaxY=0) then exit;
MaxY := Max(MaxX,MaxY);
bottom := top + MaxY;
right := left + MaxY;
{ initialize IFS data array }
d[1,1]:=0.33; d[1,2]:=0; d[1,3]:=0; d[1,4]:=0.33; d[1,5]:=1; d[1,6]:=1;
d[2,1]:=0.33; d[2,2]:=0; d[2,3]:=0; d[2,4]:=0.33; d[2,5]:=MaxY;
d[2,6]:=1;
d[3,1]:=0.33; d[3,2]:=0; d[3,3]:=0; d[3,4]:=0.33; d[3,5]:=1; d[3,6]:=MaxY;
d[4,1]:=0.33; d[4,2]:=0; d[4,3]:=0; d[4,4]:=0.33; d[4,5]:=MaxY;
d[4,6]:=MaxY;
d[5,1]:=0.33; d[5,2]:=0; d[5,3]:=0; d[5,4]:=0.33; d[5,5]:=MaxY
div 2; d[5,6]:=1;
d[6,1]:=0.33; d[6,2]:=0; d[6,3]:=0; d[6,4]:=0.33; d[6,5]:=MaxY;
d[6,6]:=MaxY div 2;
d[7,1]:=0.33; d[7,2]:=0; d[7,3]:=0; d[7,4]:=0.33; d[7,5]:=1; d[7,6]:=MaxY
div 2;
d[8,1]:=0.33; d[8,2]:=0; d[8,3]:=0; d[8,4]:=0.33; d[8,5]:=MaxY
div 2; d[8,6]:=MaxY;
x := 0;
{set starting coordinates}
y := 0;
Iterations := MaxY * 50;
Multiplier := 2/3;
for i := 1 to 10 do
{ skip first 10 iterations }
begin
k := random(8) + 1;
{ pick random row }
x := d[k,1]*x +
d[k,2]*y + d[k,5]; { transform coordinates }
y := d[k,3]*x +
d[k,4]*y + d[k,6];
end;
for i := 11 to Iterations do
begin
k := random(8) + 1;
{ pick random row }
x := d[k,1]*x +
d[k,2]*y + d[k,5]; { transform coordinates }
y := d[k,3]*x +
d[k,4]*y + d[k,6];
CurColor := GetRGBColor( random(15)+
1 );
xValue := round(x*Multiplier)+Left;
yValue := round(y*Multiplier);
ABitmap.Canvas.Pixels[xValue,yValue+top] := curColor;
ABitmap.Canvas.Pixels[xValue,bottom-yValue] := curColor;
end;
end;
end;
////////////////////////////////////////////////////////////////////////////////
