Don't you tap your fingers while listing to a piece of music............? Yes, you absolutely do. It's becouse you have rhythm.What about , if you are given an Electronic Drumset.....? Nothing else ..........but play.............!
The electronic drum sets avaiable in the market are very expensive and they have complicated circuits inside. But if you want to have such a drum set without purchasing it.
This is how you do it.
Wait a bit............!!!
I spend days and days in designing the structure of the machine in mind. Then it cost me a few thousands rupees to construct the circuits. The key component in the unit was PIC MICROCONTROLER. Though wasted a few month for programing and testing it. However I got great result in my effort in the end.

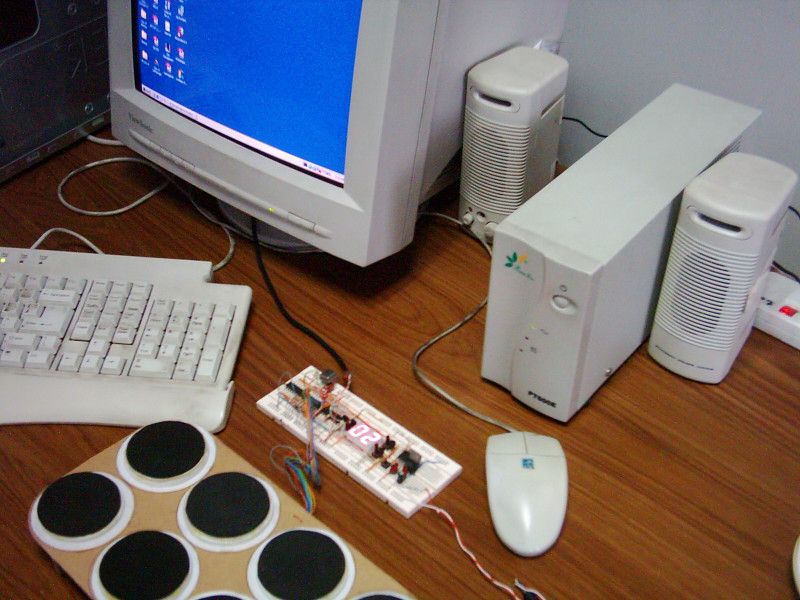

This unit has '8 Pad Trigger input and MIDI Out port'. You can connect 8 number of any external pads (piezo sensor also suport in triggering) according to your requirements. The MIDI port should be connected to any MIDI compatible device (I.e. Computer,Synthesizer,or sequencer)
The trigger unit contains a two digit Seven Segment Display and 3 control buttons. All the function including Sound, Patch, Voice Edit, Volume Edit, MIDI Channel Edit and memory capabilities are displayed in SSD unit. These function can be change according the three buttons of DOWN, UP and OK. You can also save the setting, made by pressing the OK button for 5 seconds.
