| ESPECIFICACIONES |
| General |
|
| Maximum Recommended Amplifier Power |
100 Watts |
| Impedance |
8 Ohms |
| Power Handling (Continuous/Peak) |
50 Watts/100 Watts |
| Sensitivity (2.83V @ 1m) |
86dB |
| Frequency Response (–3dB) |
70Hz – 20kHz |
| Crossover Frequency |
3000Hz |
| High-Frequency Driver |
3/4" (19mm) Titanium-laminate dome, shielded, with EOS waveguide |
| Low-Frequency Driver |
4" (100mm) PolyPlas™ cone |
Dimensions
(H x W x D) |
9-1/2" x 6-3/4" x 5-5/8"
(241mm x 171mm x 143mm) |
| Weight |
4.6 lb (2.1kg) | |
|
|  |
|
|
|

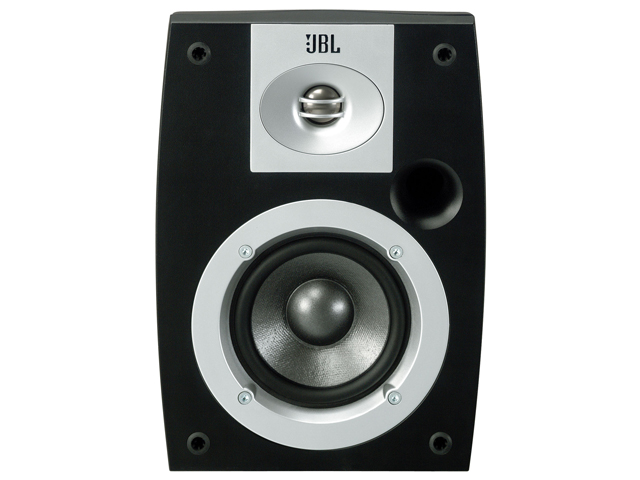

TOUR – Venue Series , 2-Way, 4" Bookshelf/On-Wall Speaker
• The Venue™ Series Tour reproduces sound with unmatched clarity and power. It features shielded PolyPlas™-cone woofers. The FreeFlow™ flared port increases bass response without adding unwanted port noise.
|
• JBL's custom-designed drivers allow the use of simple, Straight-line Signal Path™ (SSP) crossover networks with high-quality electrical components that minimize processing that could degrade the signal.
|
• Tour's high-impact molded enclosure is also wall-mountable.
|
| • Wall-mount brackets are included. |
|
