| ESPECIFICACIONES |
| General |
|
| Maximum Recommended Amplifier Power |
100 Watts |
| Power Handling (Continuous/Peak) |
50/200 Watts |
| Impedance |
8 Ohms nominal |
| Sensitivity (2.83V/1m) |
86dB |
| Frequency Response (–3dB) |
65Hz – 20kHz |
| Crossover Frequency |
2000Hz |
| High-Frequency Transducer |
3/4" (19mm) Titanium-laminate dome, shielded |
| Low-Frequency Transducer |
4" (100mm) PolyPlas™, shielded |
Dimensions
(H x W x D) |
10" x 10-1/8" x 6"
(254mm x 257mm x 152mm) |
| Weight per Speaker |
8 lb (3.6kg) | |
|
|  |
|
|
|

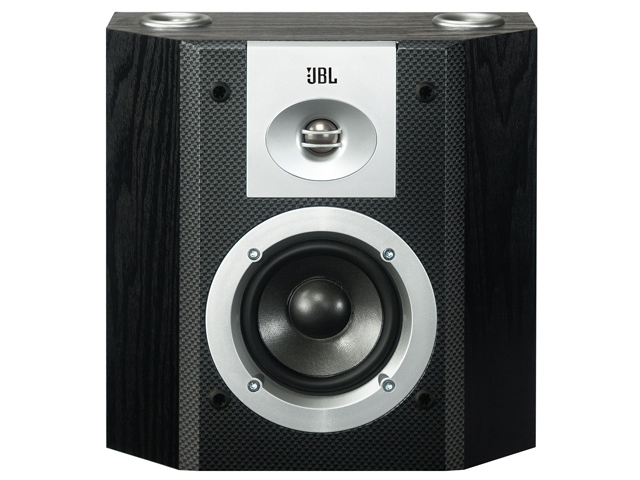

BALCONY – Venue Series, 2-Way, 4"Wall-Mount/Bookshelf Speakers
• The diminutive Venue™ Series Balcony loudspeaker reproduces audio in a big way. With its built-in keyhole mounting bracket and an angled baffle designed to disperse sound, Balcony is an excellent choice for wall-mounted side or rear surround speakers.
|
• Balcony performs like a pro, with technology developed by JBL's Professional division. Equipped with JBL's tried-and-true titanium-laminate tweeters and PolyPlas™ woofers, the speaker reproduces high notes with extreme clarity. The lows and mids, assisted by the dual FreeFlow™ flared ports, are loud and clear, without unwanted distortion or boominess. The Elliptical Oblate Spheroidal™ (EOS) waveguide ensures that every seat is the best in the house for sweet music and intelligible dialogue, or for just rocking out. Since the transducers were purpose-designed to work together harmoniously, JBL's simple Straight-Line Signal Path™ (SSP) crossover network divides the signal with minimal processing (and minimal opportunity to degrade the signal). Sturdy gold-plated, five-way binding posts provide a strong connection that preserves all of the nuances of the original program. The computer-designed, lock-mitred cabinet virtually eliminates distortion, and its slim profile won’t overpower your room.
|
• Available in a black wood-grain finish with an attractive silver grille.
|
 |
|
