| ESPECIFICACIONES |
| General |
|
| Maximum Recommended Amplifier Power |
125 Watts |
| Power Handling (Continuous/Peak) |
60/240 Watts |
| Impedance |
8 Ohms nominal |
| Sensitivity (2.83V/1m) |
86dB |
| Frequency Response (–3dB) |
68Hz – 20kHz |
| Crossover Frequency |
3000Hz |
| High-Frequency Transducer |
3/4" (19mm) Titanium-laminate dome, shielded |
| Low-Frequency Transducer |
5" (130mm) PolyPlas™, shielded |
Dimensions
(H x W x D) |
10-7/8" x 6" x 8-5/8"
(275mm x 153mm x 219mm) |
| Weight per Speaker |
7 lb (3.2kg) | |
|
|  |
|
|
|

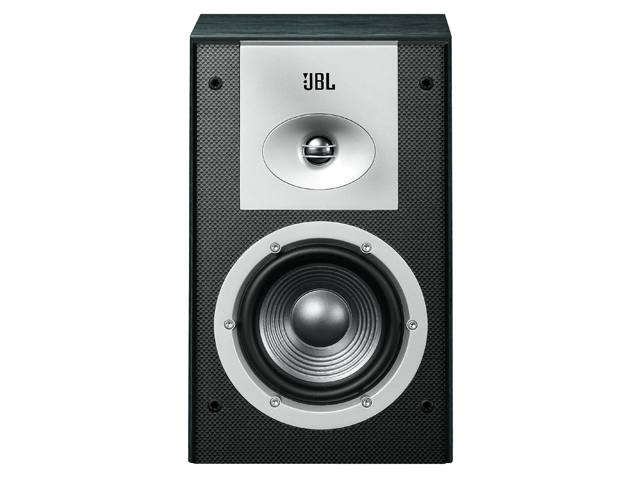

MONITOR – Venue Series
• The Venue™ series Monitor is the ideal choice for a home, office or dorm room stereo system where space is limited, but outstanding performance is demanded. Monitor is also the perfect choice for main or surround speakers in a home theater system.
|
• Monitor performs like a pro, utilizing technology derived directly from JBL’s Professional products. Equipped with JBL's tried-and-true titanium-laminate tweeters and PolyPlas™ woofers, the speaker reproduces the high notes with extreme clarity. The lows and mids, assisted by the FreeFlow™ flared port, are loud and clear, without unwanted distortion or boominess. The Elliptical Oblate Spheroidal™ (EOS) waveguide ensures that every seat is the best seat in the house for sweet music and intelligible dialogue, or for just rocking out.
|
• Available in a black wood-grain finish with an attractive silver grille.
|
 |
Caractersiticas del parlante:
- Parlante para piso de 3 vias con woofer de 8¨
- Uso, musica y cine
- Potencia maxima de amplificador recomendada de 175 watts
- Impedancia Nominal : 8 ohm
- Sensibilidad (2.83v/1m) : 90 db
- Respuesta de frecuencias (-3db) : 45hz - 20khz
- Frecuencias de crossover: 1000hz - 5000hz
- Parlanate de alta frecuencia (tweter) : domo de lamina de titanio de 3/4¨
- Parlante de medios de PoliPlas de 4¨
- Paralnte de baja frecuencia de 8¨de PoliPlas
- Fino acabado negro
- Dimensiones: 864mm x 267mm x 305mm
- Peso: 15.9 kg
|
