| FEATURES |
|
| GENERAL |
| Power Output; Watts Per Channel |
130 |
 |
| All Channels Rated @ 0.05 THD |
 |
|
| All Channels Rated @ 0.08 THD |
– |
|
| Weight: In Pounds |
40.8 |
|
| Width (inches) |
17.1 |
|
| Height (inches) |
6.75 |
|
| Depth (inches) |
16.9 |
|
| SOUND MODES |
| THX Ultra2-Certified |
– |
|
| Dynamic Discrete Surround Circuit – D.D.S.C - D |
|
|
| Processor(s) – Bit Depth and Type |
32-bit Floating Point |
|
| Dolby Pro Logic IIx – with Cinema, Music, Game Modes |
|
|
| THX Post-Processing – DPL (4.0), DPL2 Cinema, DD/DTS (5.1), ES Discrete (6.1), ES Matrix, Neo:6 Cinema |
– |
|
| THX Ultra2 7.1 Cinema, Music and Game Modes |
– |
|
| THX Surround EX Decoding |
– |
|
| Dolby Digital Surround EX Decoding |
|
|
| dts ES Discrete 6.1 Decoding |
|
|
| dts ES Matrix 6.1 Decoding |
|
|
| dts Neo:6 Stereo-to-Surround Cinema and Music Modes |
|
|
| dts 96/24 5.1 for DVD-Video Processing |
|
|
| Dolby Headphone |
– |
|
| HDCD Decoder |
|
|
| Audio Signal Delay (Sync. Audio with Video signal) – By source |
|
|
| Pure Direct/Direct/Stereo Modes on Digital/Analog inputs |
|
|
| Stereo/Direct Modes w/Pure Analog Path |
|
|
| 5-Channel Stereo Mode |
– |
|
| Video Game Mode |
|
|
| Wide Screen 7.1 Mode |
|
|
| Mono Movie Surround Mode |
|
|
| Rock Arena Surround Mode |
|
|
| Matrix Surround Mode |
|
|
| Jazz Club Surround Mode |
|
|
| Virtual Surround Mode – For 2 Speakers/Headphones |
|
|
| Multi-Channel Stereo Mode |
5/6/7 |
|
| DSP Effect Modes |
10 |
|
| Auto Surround Mode (Analog or Digital Input Type) |
|
|
| Active Center Channel In All Surround Modes |
|
|

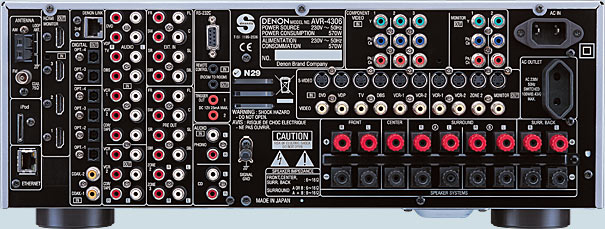

| CONNECTIVITY |
| True 24-bit/96-kHz Digital Input Capability |
|
|
| True 24-bit/192-kHz Digital Input Capability (Denon Link & 1394) |
|
|
| Assignable Digital Inputs |
|
|
| Digital Input – DENON Link 3rd (SACD Ready) |
|
|
| IEEE-1394 Digital Audio Input/Output |
– |
|
| Digital Inputs: Coaxial |
2 |
|
| Digital Inputs: Optical |
5 |
|
| Digital Outputs: Optical |
2 |
|
| Digital to Analog REC Out |
PCM source |
|
| Analog Audio Inputs, Incl. Tuner |
11 |
|
| Phono Input |
MM type |
|
| Source Function Renaming |
|
|
| Analog Record Outputs |
3 |
|
| Front Panel A/V Inputs w/Cover * Composite and S-Video |
* with Optical in |
|
| Video Conversion –Composite to S-Video to Component |
|
|
| Video Conversion – Composite to S-Video to Composite |
|
|
| Video Conversion – Analog to HDMI |
|
|
| DVI/HDMI Video Inputs – Compatible with 1.1 Spec. – Multi-Channel Audio *1080p HDMI |
*3 HDMI |
|
| HDMI Video Outputs *1080p |
*1 |
|
| Composite Video Inputs |
7 |
|
| Composite Video Outputs |
3 |
|
| S-Video Inputs |
7 |
|
| S-Video Outputs |
2 plus Mon/Z2 |
|
| Component Video Inputs x Bandwidth - *Assignable |
*3 x 100MHz |
|
| Component Video Outputs |
2 |
|
| 6-Ch. External Analog Input |
– |
|
| 8-Ch. External Analog Input |
|
|
| Banana Plug Speaker Terminals, All Channels |
|
|
| Cinema EQ |
|
|
| Front A/B Speaker Selector |
– |
|
| 56 Station Auto-Preset Memory Tuning |
|
|
| Radio Data System (RDS) |
– |
|
| XM Satellite Radio 'Connect and Play' Ready – with optional antenna |
|
|
| Direct Function (Tone Bypass) |
|
|
| Volume Control Un-muting |
|
|
| Selectable Muting Levels (Full/-40/-20) |
|
|
| Video Select Control |
|
|
| RS-232 Port – Third Party Remote Controllers |
|
|
| RJ-45 Ethernet Port – Same Functionality as AVR-5805/4806 |
|
|
| PC Setup and Control Capability |
|
|
| IR Serial Remote In/Out terminals |
|
|
| +12v Trigger Output - Assignable |
2/25mA |
|
| Multi-Source/Multi-Zone (*Uses REC OUT) |
3AS/3AZ; 2VS/2VZ |
|
| Pre-amp Outputs for Multi-Zone |
|
|
| High Pass Filter for Multi-Zone Outputs |
– |
|
| Multi-Zone Pre-Amp Outputs – Selectable Output Levels |
|
|
| Discrete Multi-Zone Composite Video Output - *S-Video also |
* |
|
| Discrete Remote Power On/Off, Source Selection and Volume for Main and Second/Third* Zones |
|
|
| Discrete Remote Source Selection for Zone 3 |
|
|
| Assignable Amplifier Configuration of Surround Back Channels |
Y/with Volume |
|
| Speaker Time-Delay and Level Controls: L/R, Sub, C, Surr. L/R, Surround Back |
|
|
| Pre-Amp Outputs |
All (8) |
|
| Internet Radio |
|
|
| iPod Port (Using optional AKP-100 cable) |
|
|
| iPod Dock Control Port (Using optional ASD-1R Denon iDock) |
– |
|
| USB Flash Drive Port |
|
|
| COMPONENT TECHNOLOGY |
| Equal Power Amplifiers |
7 ch |
|
| Low Impedance Drive Capability |
|
|
| High-Current/Discrete Amplifiers |
|
|
| Independent Power Supplies |
|
|
| Pure Audio Construction |
– |
|
| Toroidal Power Transformer |
– |
|
| Dolby Digital, dts and DSP Modes – Analog Devices, HammerHead SHARC |
|
|
| Dolby Digital, dts and DSP Modes – Texas Instruments Aureus |
– |
|
| AL24 Processing - All Channels |
|
|
| 24-bit/192-kHz DACs – Burr-Brown PCM-1791 |
|
|
| 24-bit/192-kHz DACs - Analog Devices |
– |
|
| Analog-to-Digital Conversion - Bit Depth/Sampling Rate |
24-bit/192kHz |
|
| Variable High/Low Pass Crossover Points (12/24dB) 40/60/80/100/120/150/200/250 |
|
|
| Built In Time Based Correction |
|
|
| CONVENIENCE FEATURES |
| Front Panel A/B Speaker Selector |
– |
|
| Auto Setup Calibration |
|
|
| Auto/Manual Room Equalization |
|
|
| Audyssey MultEqxt Room Eq. with up to eight position setup |
|
|
| Auto Setup Microphone Included/Type |
Y/Mold DM-S205 |
|
| Dual Surround Mode Spkr. Selector |
|
|
| Icon-Based On-Screen Display |
|
|
| Front Panel System Setup Control |
|
|
| Personal Memory Plus |
|
|
| System Setup/Surround Parameters Lockout |
|
|
| Relay-Controlled Protection Circuits |
|
|
| Microprocessor User Re-set |
|
|
| Detachable Power Cord |
|
|
| Subwoofer Peak-Level Limiter (THX) |
– |
|
| Pre-programmed (10 Devices) Glow Key Remote Control with Punch Through Commands |
– |
|
| Pre-programmed/Learning EL Remote with Backlighting and Punch Through Commands |
Y/RC-1024 |
