| ESPECIFICACIONES |
| General |
|
| Maximum Recommended Amplifier Power |
150 Watts |
| Power Handling (Continuous/Peak) |
80/320 Watts |
| Impedance |
8 Ohms nominal |
| Frequency Response (–3dB) |
47Hz – 20kHz |
| Sensitivity (2.83V/1m) |
90dB |
| Crossover Frequencies |
600Hz, 3500Hz |
| High-Frequency Transducer |
3/4" (19mm) Titanium-laminate dome, shielded |
| Midrange Transducer |
4" (100mm) PolyPlas™, shielded |
| Low-Frequency Transducer |
8" (200mm) PolyPlas™, shielded |
Dimensions
(H x W x D) |
34-3/4" x 9" x 13-1/8"
(883mm x 229mm x 333mm) |
| Weight per Speaker |
31.2 lb (14.5kg) | |
|
|  |
|
|
|

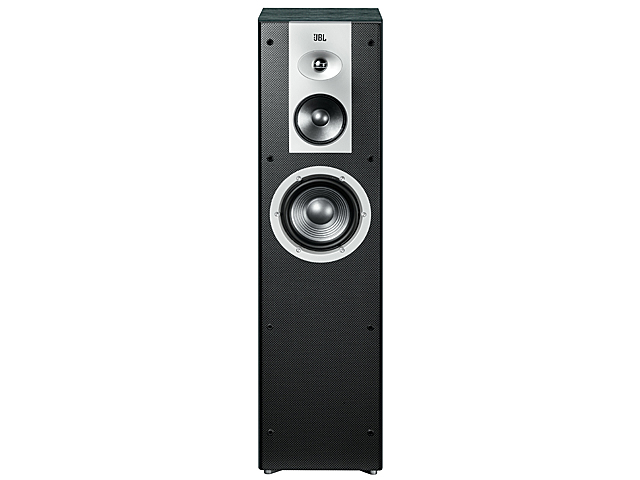

STAGE – Venue Series, 3-Way, 6" Floorstanding Loudspeaker
• The Venue™ Series Stage floorstanding loudspeaker delivers superb audio, whether used for critical listening in a stereo system, or combined with a Voice center channel, bookshelf surrounds and a subwoofer to create a home theater system.
|
• Stage performs like a pro, with technology developed by JBL’s Professional division. Equipped with JBL's tried-and-true titanium-laminate tweeters and PolyPlas™ drivers, the speaker reproduces the high notes with extreme clarity. The lows and mids, assisted by the FreeFlow™ flared port, are loud and clear, without unwanted distortion or boominess. The Elliptical Oblate Spheroidal™ (EOS) waveguide ensures that every seat is the best seat in the house for sweet music and intelligible dialogue, or for just rocking out.
|
• Available in a black wood-grain finish with an attractive silver grille.
|
|
