| Shogun/Zoom 400 | |||||||||||||||||||
 |
|||||||||||||||||||

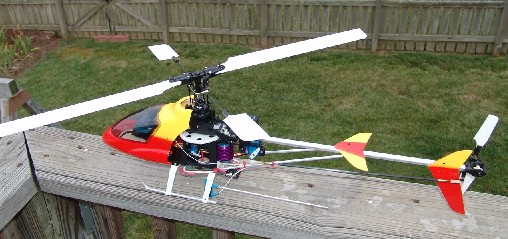

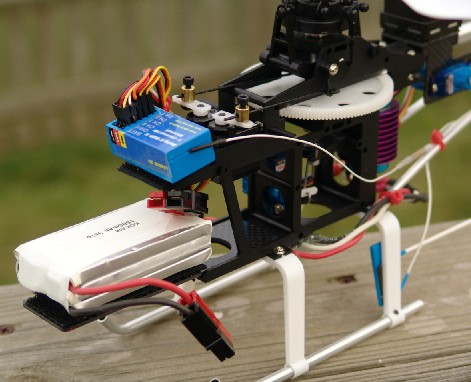

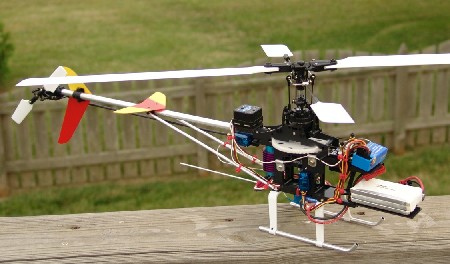

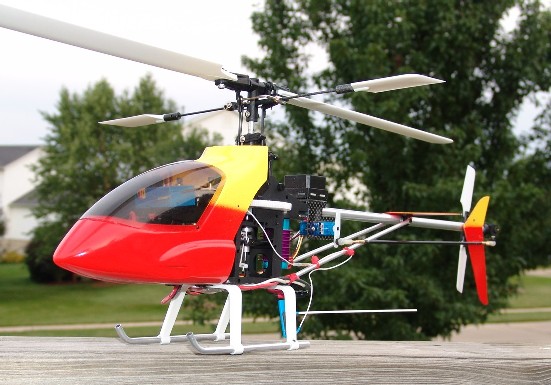

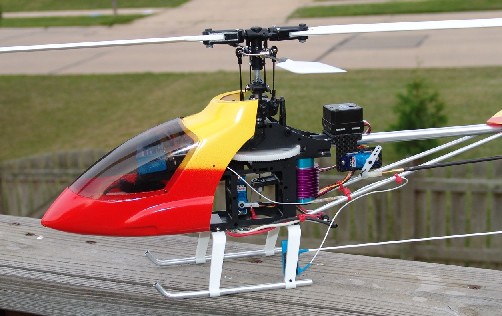

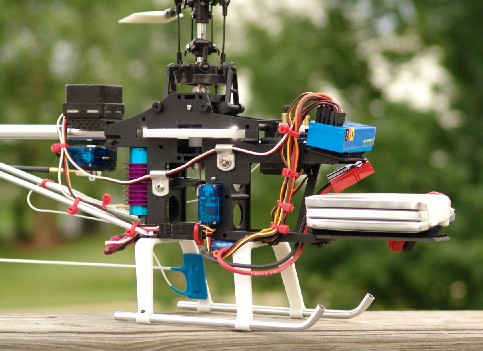

| This is my electric heli, the Shogun 400. It's relatively new on the scene but it's definitely a quantum leapp forward in micro-electric helis. My first electric heli was an MS Hornet. That machine was a big disappointment. However the Shogun more than makes up for it. This helicopter is more like my larger gas versions. Both in mechanics and performance. I've equipped my Shogun with a bruhless motor rather than using the stock brushed speed 400 that comes with it. I did add some carbon fiber upgrades from MJP Carbon. They include the gyro/tail rotor servo boom mount, battery extender plate and the tail rotor pushrod. Here are the machine's specs: HiMaxx 2500-4200 brushless motor w/8 tooth pinions (stacked) Hacker heat sink on the motor CC Phoenix 25 ESC (in govenor mode) Berg 5ch Rx HiTec HS-55 servos all around Futaba GY-240 gyro Kokam 3s 1500 LiPo battery or TP 3s 2100 LiPo battery HiTec Eclipse Tx Performance is outstanding. Although I haven't done aerobatics with it yet it looks to be a definite keeper and addition to the fleet. |
|||||||||||||||||||
 |
|||||||||||||||||||
 |
|||||||||||||||||||
 |
|||||||||||||||||||
 |
 |
||||||||||||||||||
 |
|||||||||||||||||||
