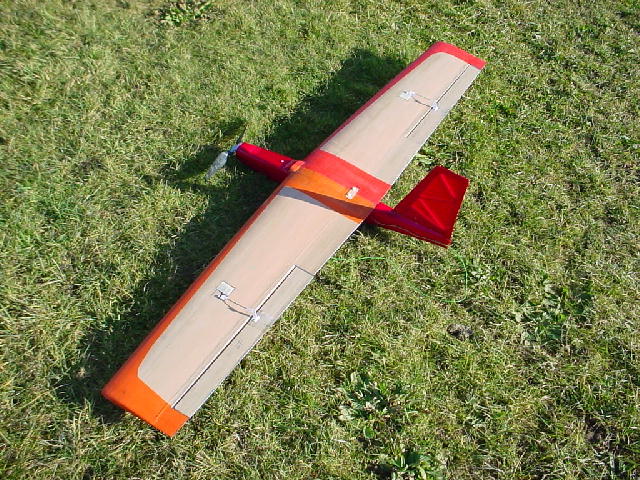

Construction. Wing: Brown Paper over white foam. Fuse: Balsa. Specifications. Motor: Jamara 480 HS BB Gearbox: 4.5:1 Planetary Prop: 12 x 10 Aeronaut Folder Batteries: 7 x KAN 1300 Nimh Span: 1500mm Weight: 760 grams Area: 458 Sq. In Loading: 8.5 oz/sq. ft Foil: MH45 modified. I used XFOIL and followed Mark Drela's instructions to make the moment coefficient more positive (MH45 is designed for swept wing gliders) and thinned it to 9% as well. Flight Report After a fair amount of trimming (I had to move the wing forward by 12mm to get the CG right) the model is flying really great for a 7 cell model. I did a 15 minute flight the other day with a bit of hooning around. It will thermal in strong lift. Just a simple fun model. I would like to make a higher powered version some time in the future. |
||||
