| CB CONSOLE |
| ________________________________________________________ |
| ________________________________________________________ |
 |
 |

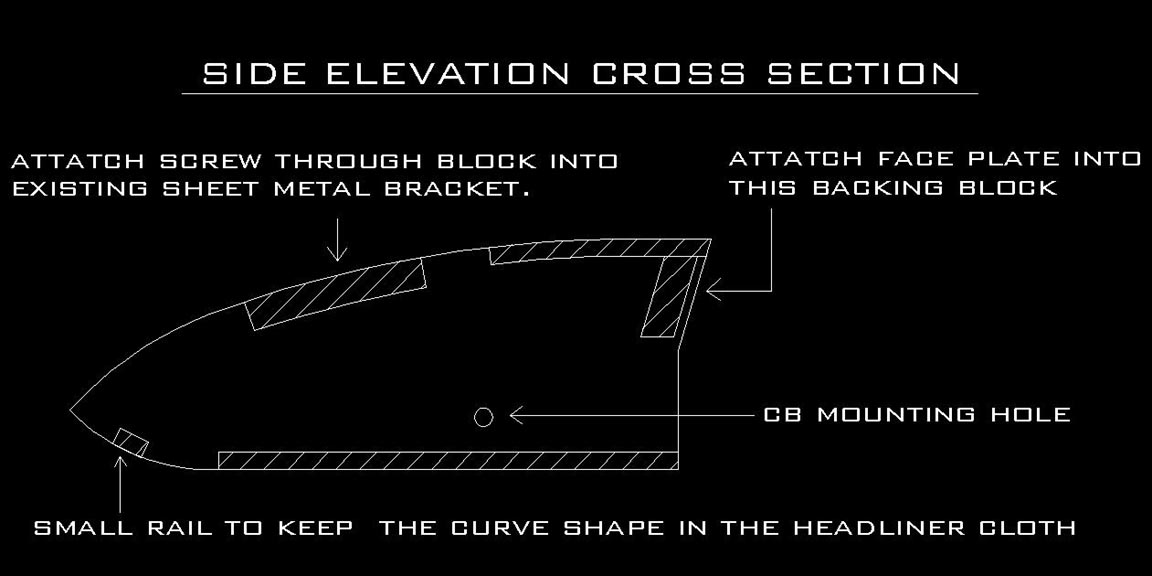

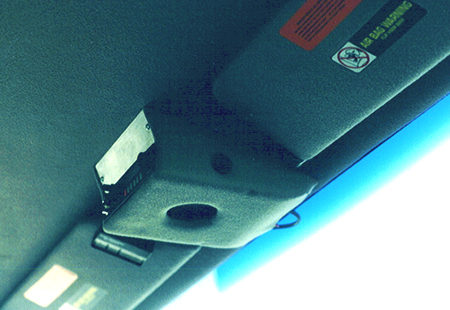

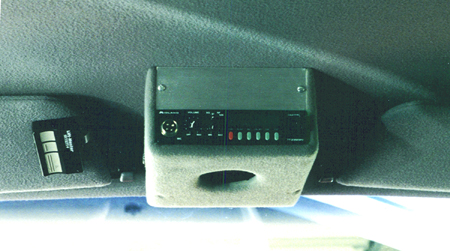

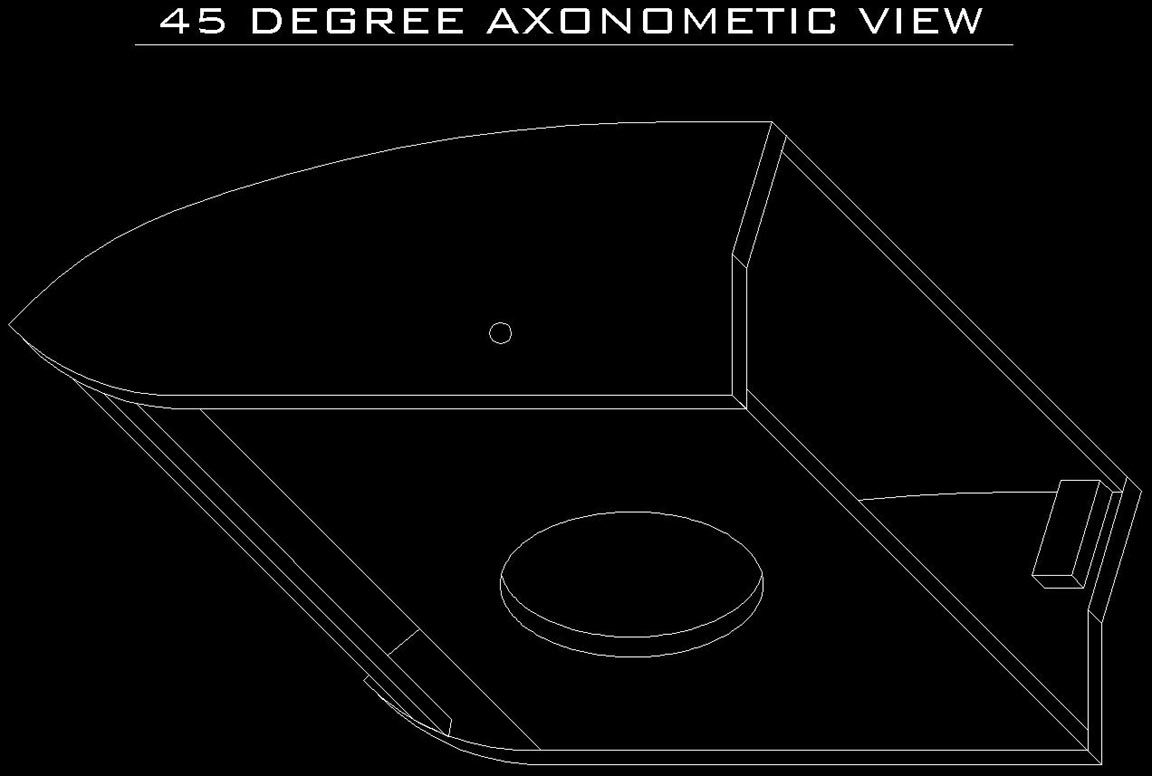

| THE CONSOLE IS CONSTRUCTED OF 1/4 INCH PLYWOOD, COVERED WITH STANDARD HEADLINER MATERIAL. IT'S ATTACHED TO THE STOCK SHEET METAL BRACKET WITH THREE SHEET METAL SCREWS. THE MIC WIRE IS RUN OUT THE BACK OF THE CB, TO UNDER THE DASH, SO THE MIC COULD BE NEXT TO THE STEERING COLUMN, AND OUT OF MY FACE. TOGGLE SWITCHES WILL GO IN THE PLATE ABOVE THE CB. CHECK THE LINKS BELOW FOR ILLUSTARIONS ON HOW THE CONSOLE WAS CONSTRUCTED. |
