My Plymouth Laser RS-T
Pictures and mods.
This page will under-go updates...new pictures, and much more...as time provides...and of course... when I am able to get more pictures taken.>>until then...enjoy what I've got...even though they aren't the best pictures.  :)
(List of mods. at bottom of page).

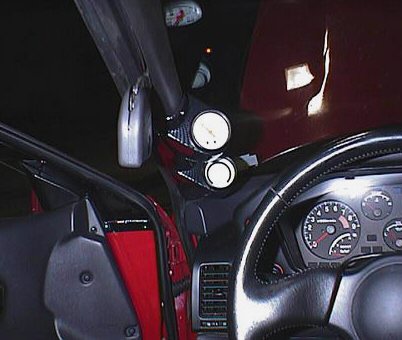

my Autometer gauges in the car....

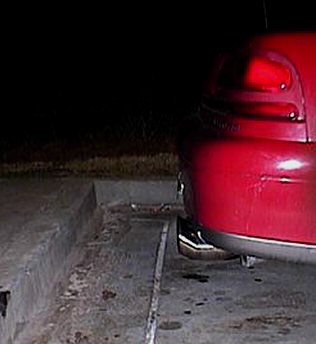

Side view of my custom exhaust

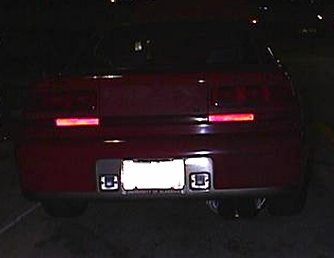

Rear view of my custom exhaust

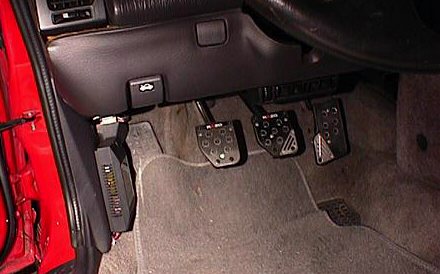

My Razo race pedals

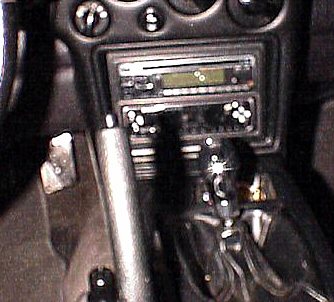

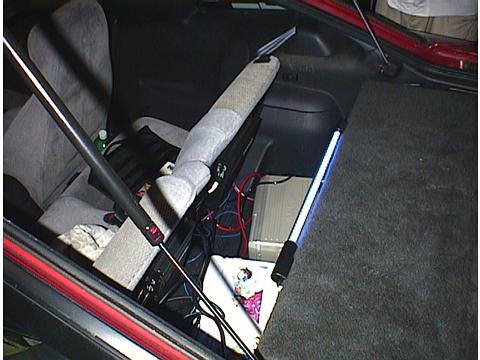

Shift knob/boost controller/stereo My messy stereo..

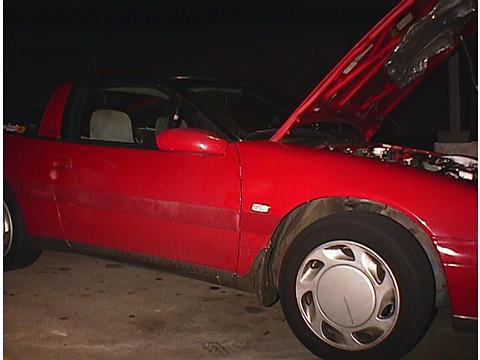

My custom sidemarkers and stealth turbo.

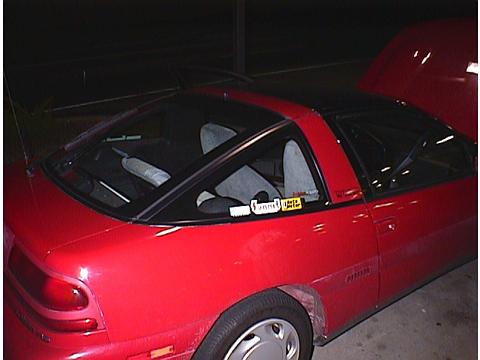

My few stickers on the car...

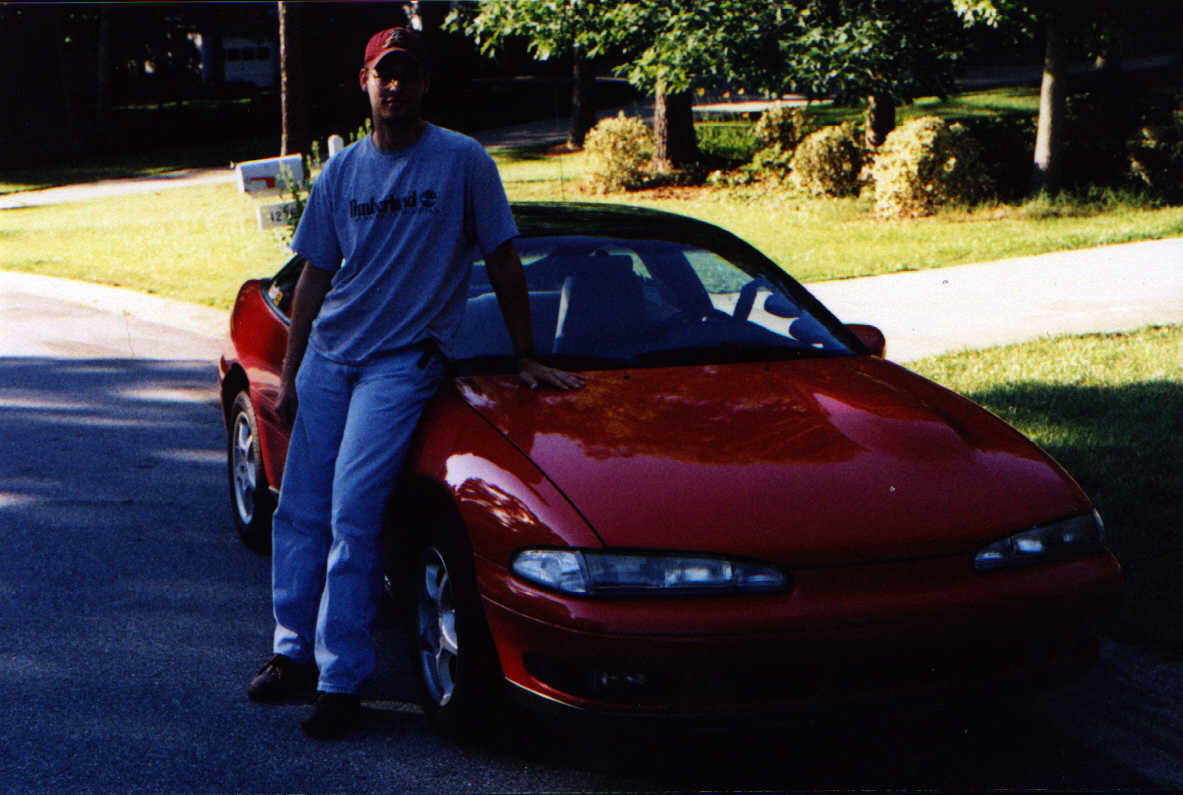

Pic. #1 at my place.

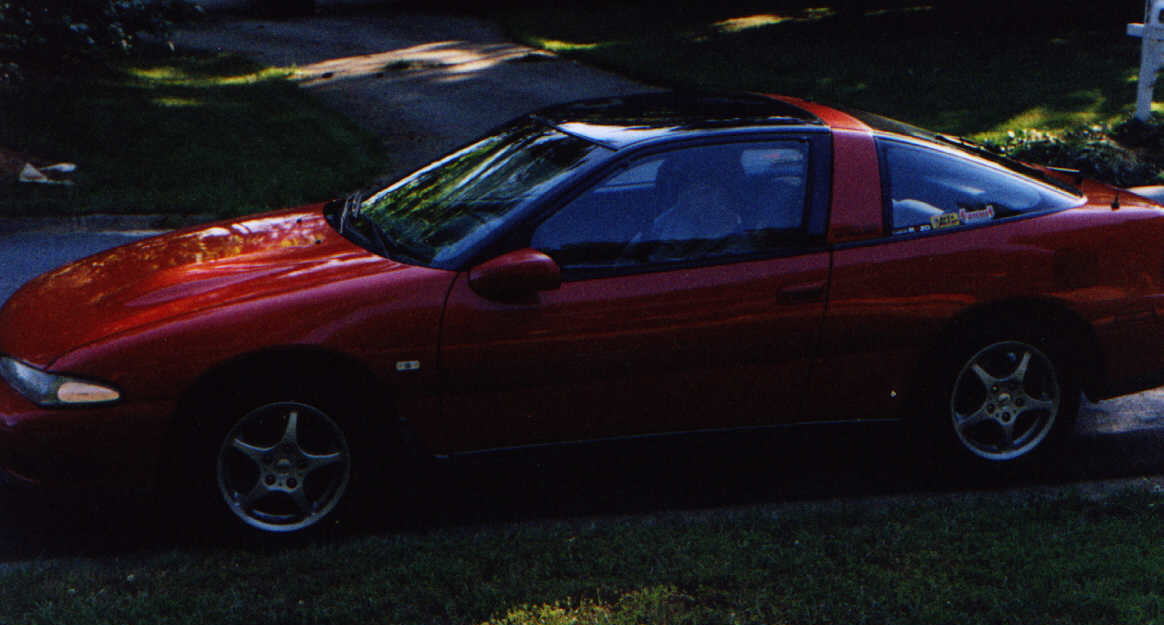

Pic. #3

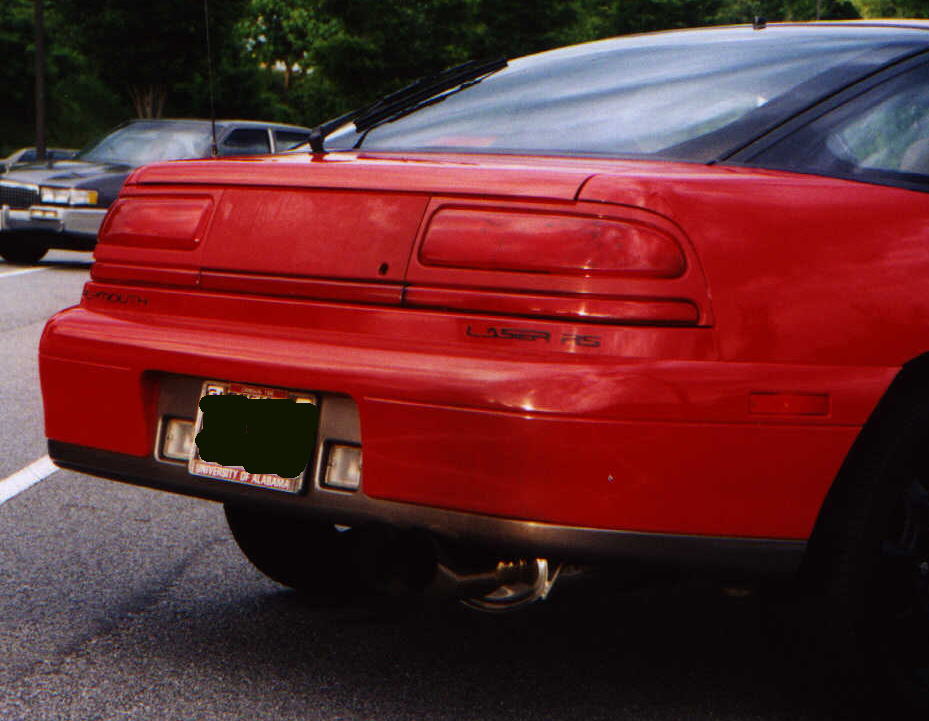

custom exhaust view (a bit dark..but oh well).
Side view of exhaust.
FUEL PUMP INSTALL:

Install took ~1.5hrs (working slowly).
by installing it myself...I saved $115!!!
that's what a shop I work for was gonna charge me in labor!?! what a rip!
oh well..it wasn't all that hard to install.
I also got a great deal on the pump.
Modifications to my Laser RS-T(FWD)--just before I swapped to AWD:
Dyno'd the car at ~304hp/323tq--at 22psi on pump gas.

Power:
*Weapon*R intake filter (for now/free from a friend).>>
UPDATE: Replaced with 2G MAS air and Ractive air filter.
*Custom 3" pvc intake pipe to turbo(similar to unit pictured above..but mine was LOTS cheaper--homemade.
UPDATE: Replaced with Injen intake pipe(2G).
*2.5" upper intercooler piping>with '95 style TB elbow and all connections.
UPDATE: Replaced with Starion FMIC with 2" custom piping and HKS SS bov.
*Custom 3" downpipe with ball/spring flex piece.
*3" high flow catalytic converter.
*Custom 3" catback piping with Maxspeed muffler{stainless muffler/with dual 4" DTM style tips}.
UPDATE: Replaced with Custom 3" O2 eliminator external wastegate, side dump/no cat exhaust.
*Turbonetics Manual boost controller {set between 15-18psi}.
UPDATE: Replaced with Greddy Profec B electronic boost controller.
*Apexi S-AFC(new style).
*Walbro 255-HighPressure fuel pump.
UPDATE: Installed Big 16G turbo>5^ clip/no porting.
UPDATE: Installed 550cc injectors and a Holley FPRegulator.
Wheels/Suspension:
*KYB AGX adjustable shocks 4way-front and 8way-rear.
*Eibach Pro kit springs.
*Freedom Design Front strut bar.
UPDATE: Enkei RSF-2 wheels (16x7") were installed, with Yoko A520 225 50 16" front tires.
UPDATE: RRE rear strut bar installed.

Other/Misc:
*Removed air can/hacked silencer and lower honeycomb out.--replaced.
*Eliminated BOV dump tube(venting to atmosphere).--Replacd.
*Custom integrated MBC into factory cig. lighter location.
*Re-located cig. lighter to pssgr. side left floor>great for accessory hookup>non-smokers.
*Autometer "phantom" series (white face) boost gauge...and A/F ratio gauge>>mounted in carbon fiber look dual gauge pillar pod.
*"Razo" Race--carbon fiber pedals.
*"Hp Motorsports" shift knob--carbon fiber cobra style.
*EuroLight Hyperwhite low beam headlight bulbs.
*Clear Corner light housings.
*Hyperwhite color turn signal and corner light bulbs.
*Custom clear sidemarkers installed with hyperwhite bulbs(blink and steady).
UPDATE: 5% window tint installed.
Stereo:
*Sony CDX-C510--Cd headunit
*Pioneer DEQ-9200--EQ/DSP/X'over
*Boston Acoustics Pro 6.5>>seperates in front.
*(still have stock in rear>to be upgraded later to Boston Acoustics).
*MTX Thunder 280>for front(80Wx2).
*MTX Thunder 280>for rear(80Wx2).
*MTX Thunder 1500dx>for sub(~800Wx1).
*Boston Acoustics Pro 12.5 subwoofer in custom box.
*and a touch of blue neon to give some looks. :)
