My 1988 Fiero Coupe

General Info

Hi,

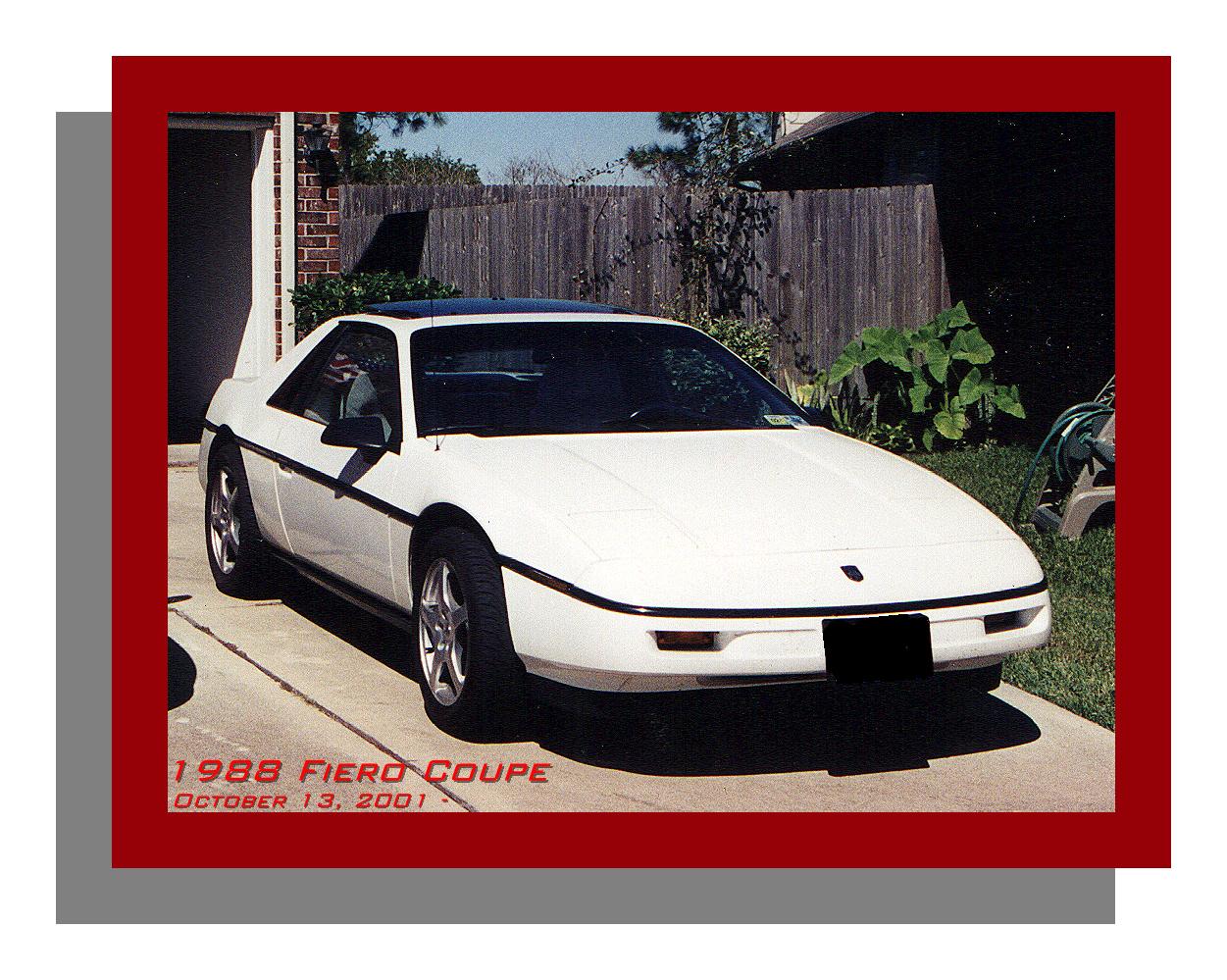

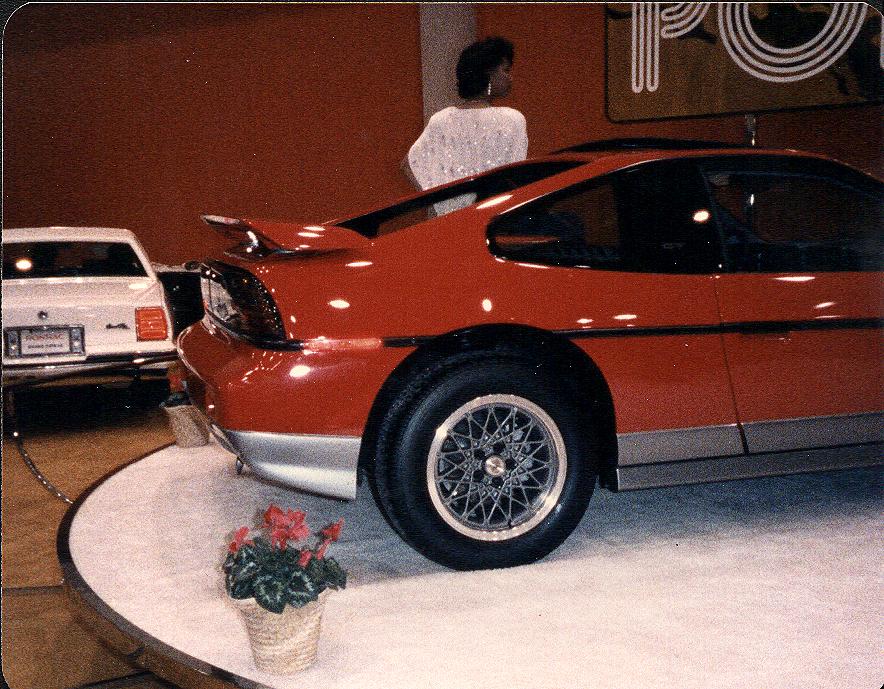

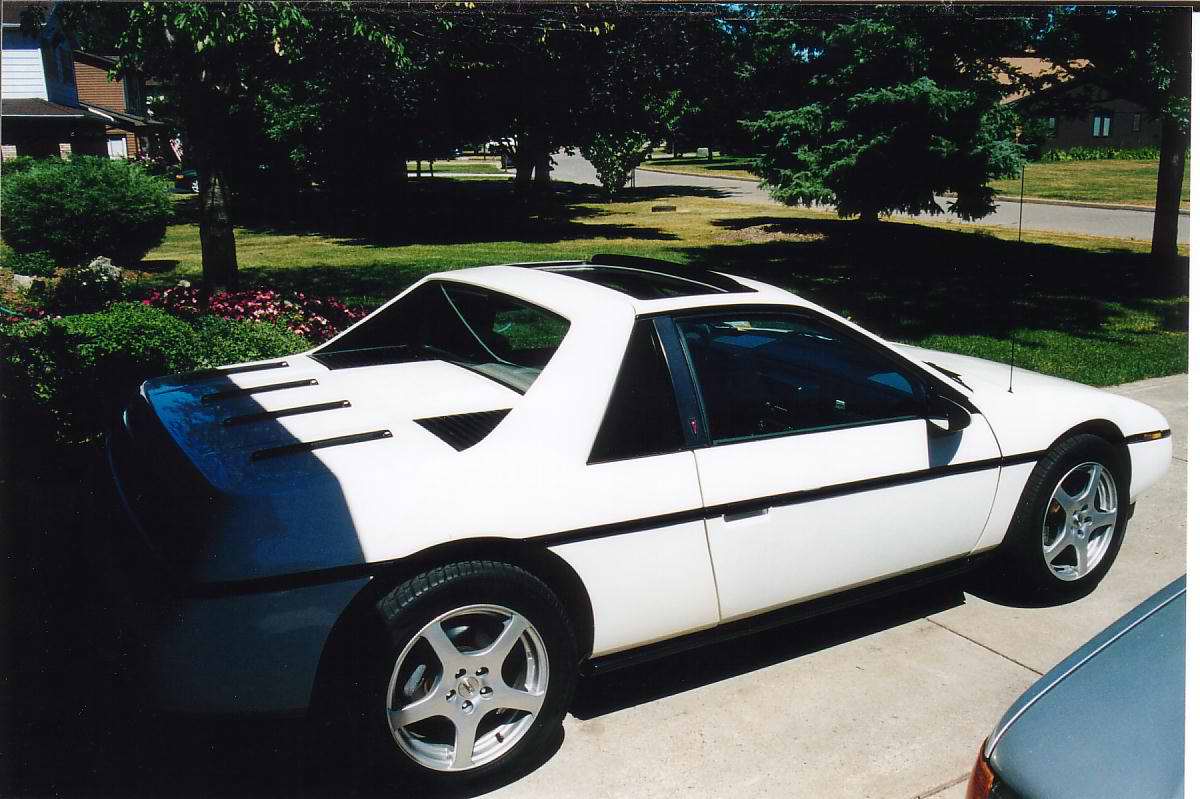

Above is a picture of my Fiero.  I have wanted one of these ever since I first saw the GT model at the 1986 Buffalo Auto Show.

My car is not a GT, but I had to start somewhere.

I haven't made any changes to the exterior yet.

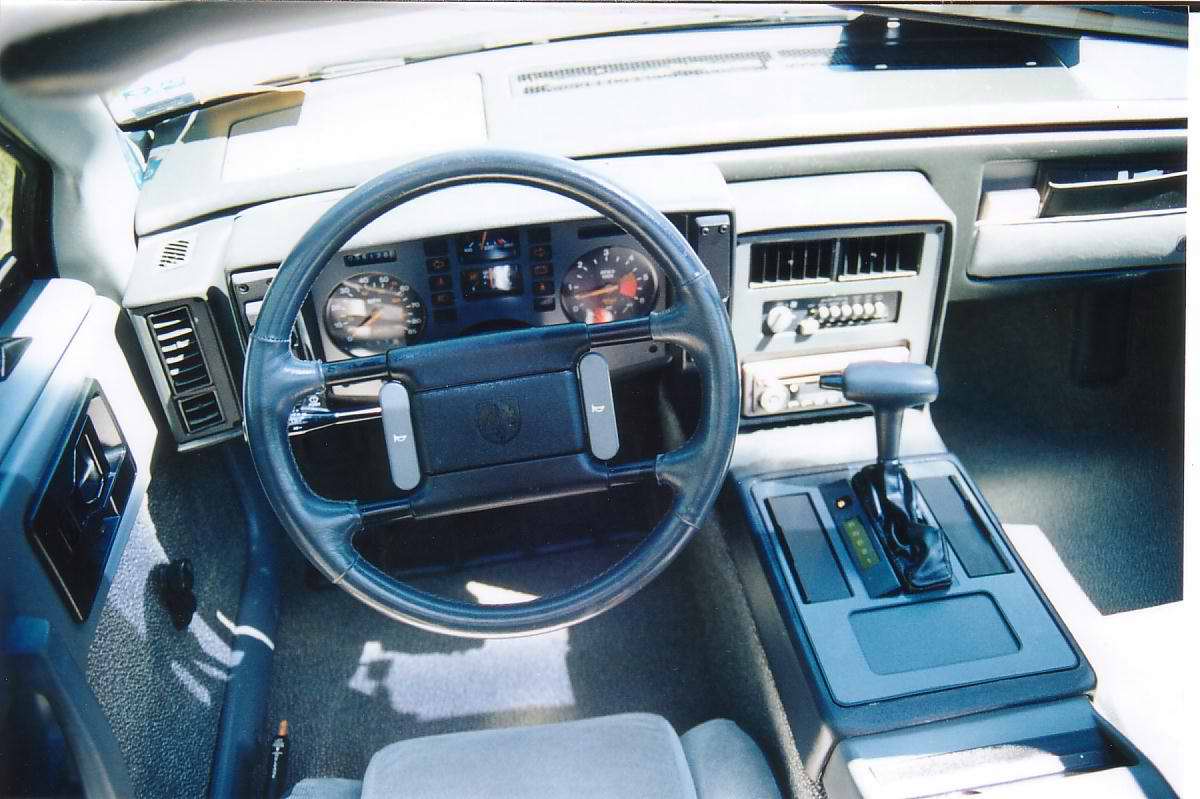

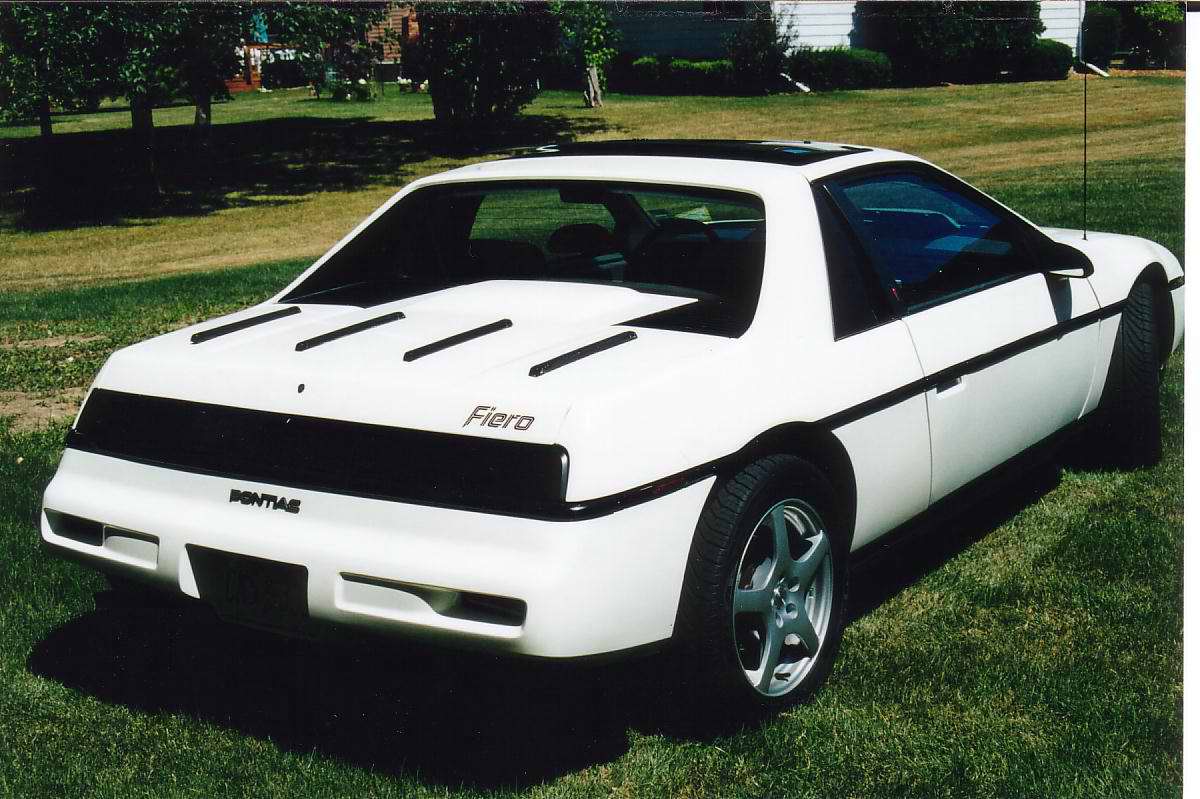

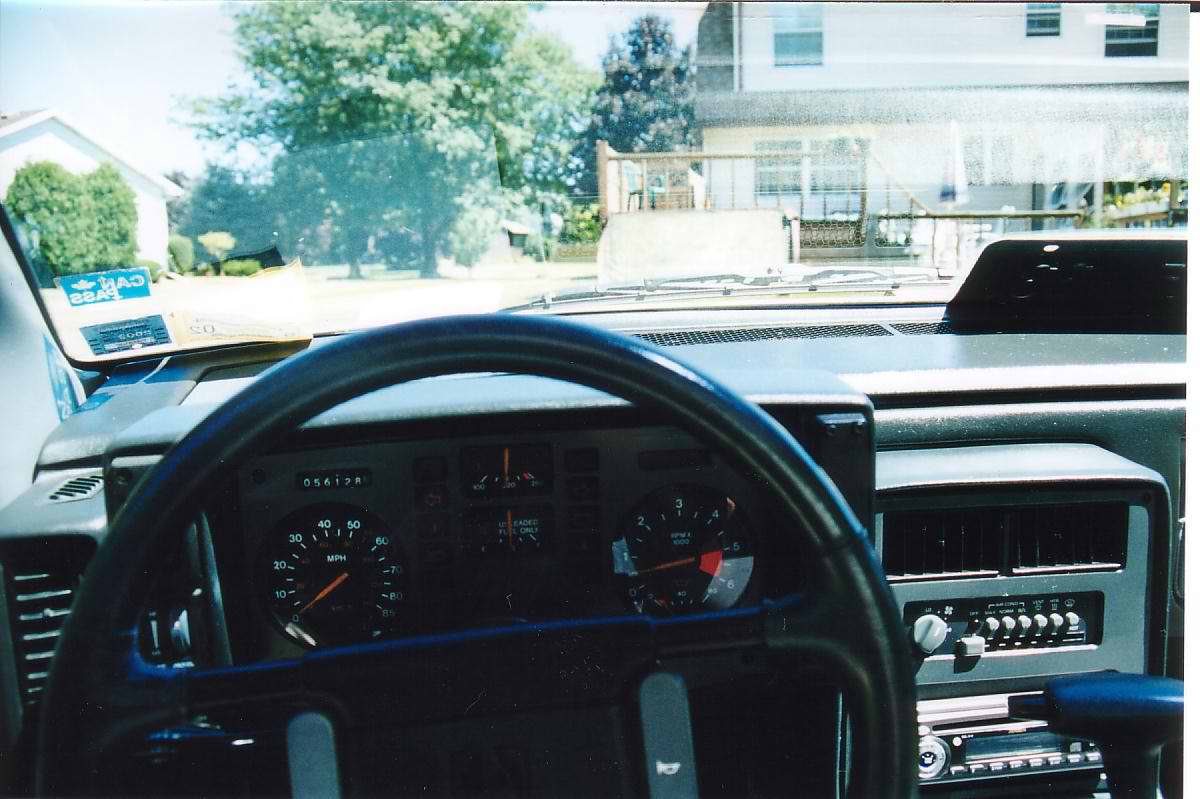

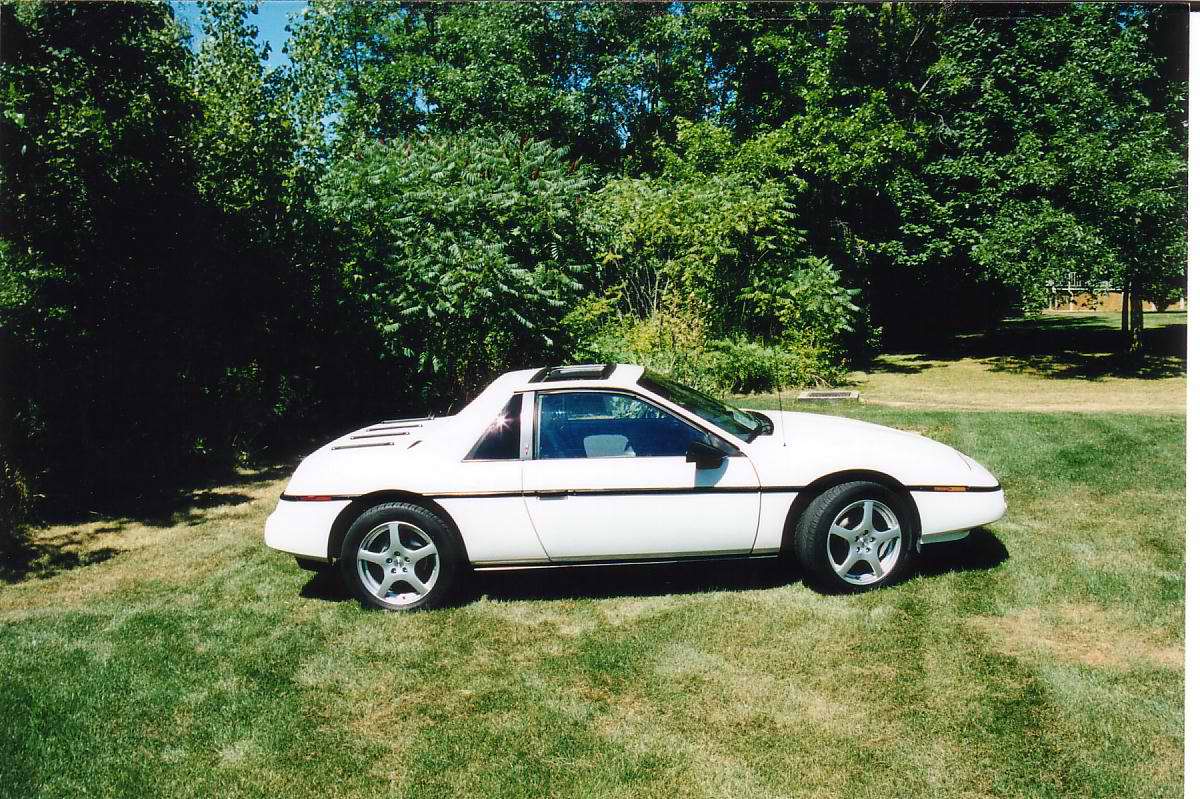

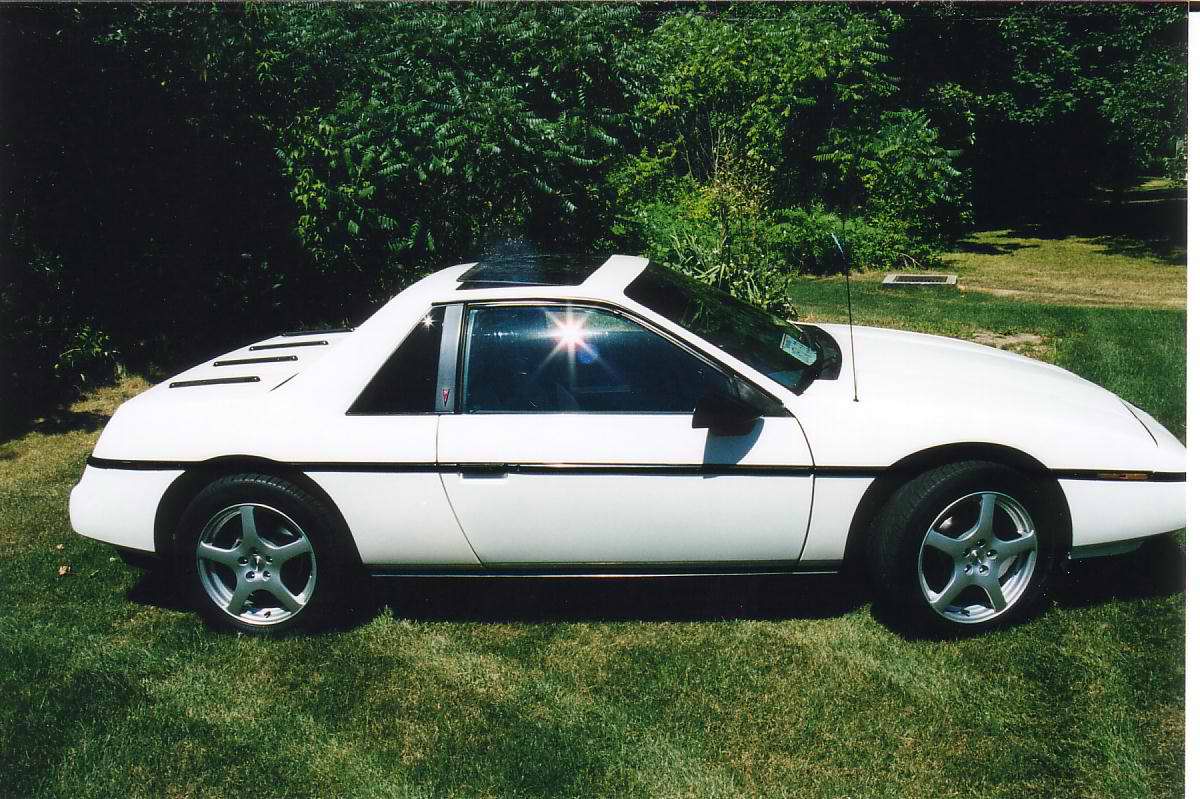

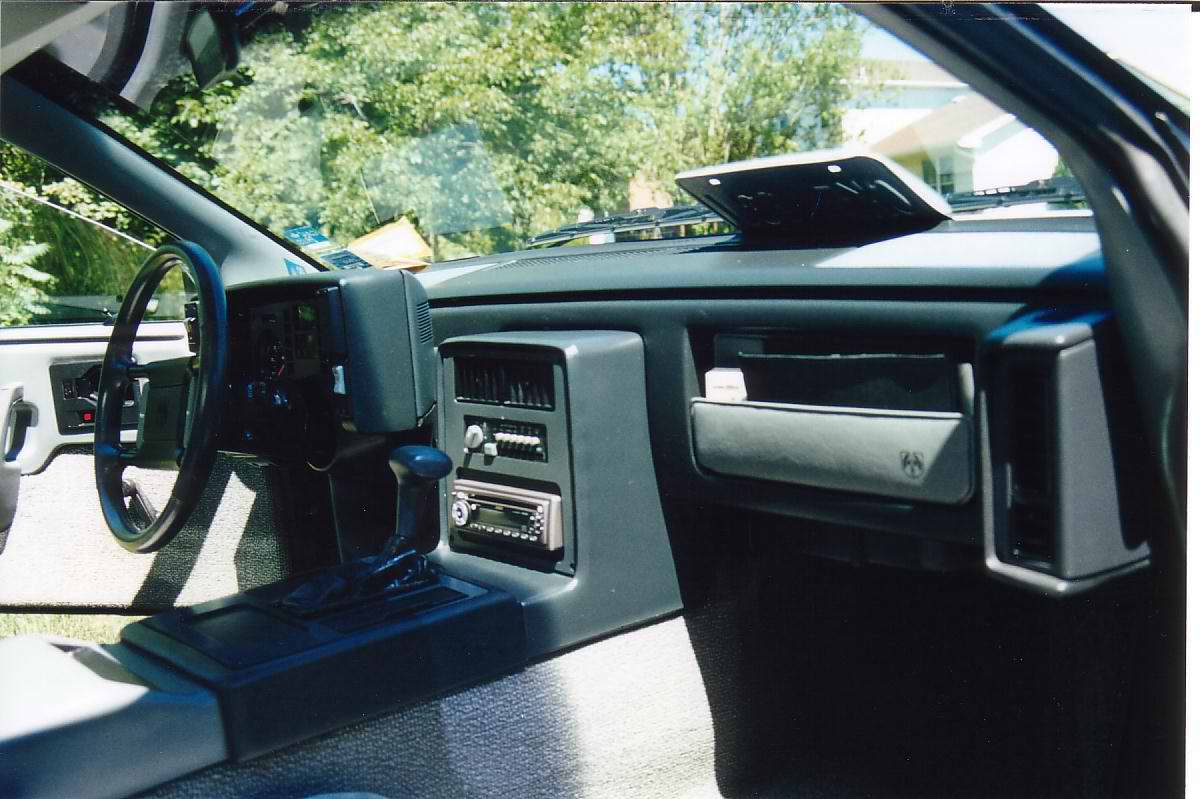

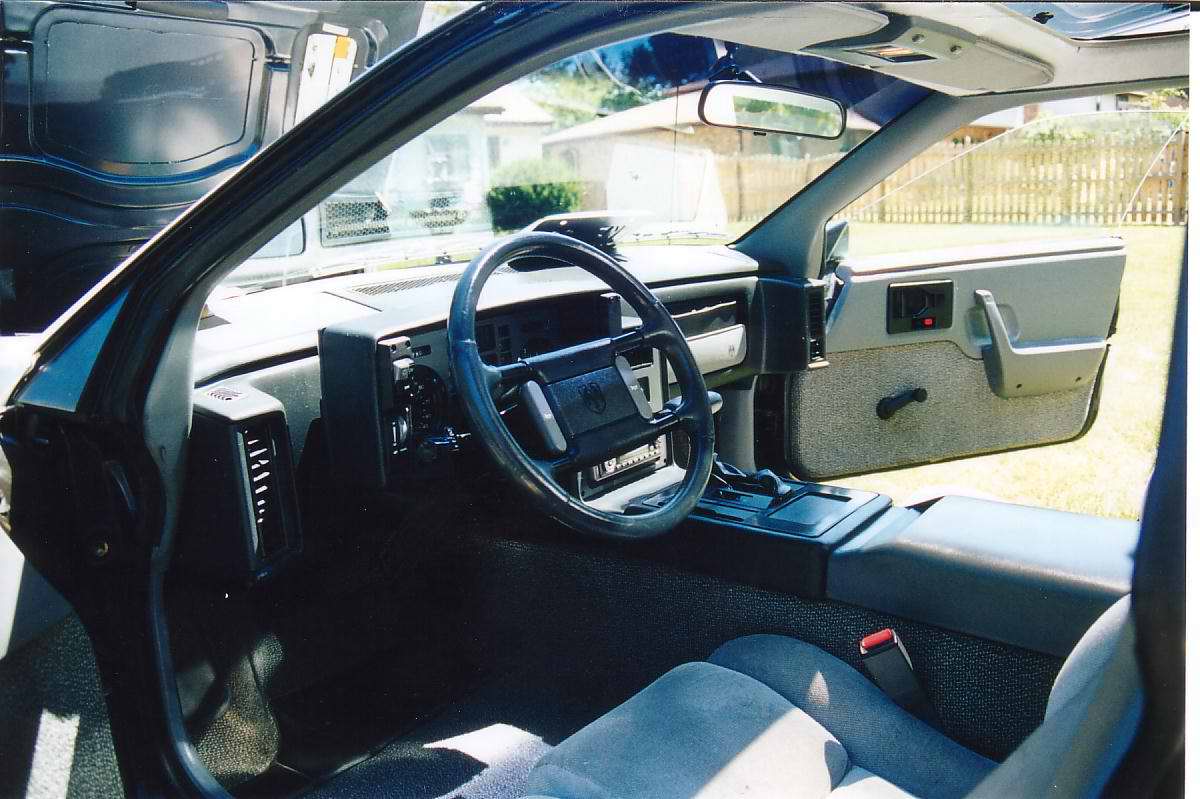

Taken by the previous owner:

I have continued the effort the previous owner started to add options to the basic little coupe.

This turned out to be far more difficult than I imagined, but not too hard.

Shots of the 1st Fiero Maintenance Down Period:

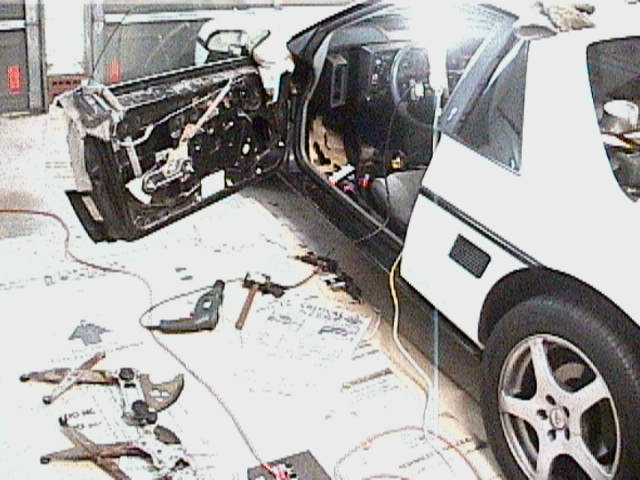

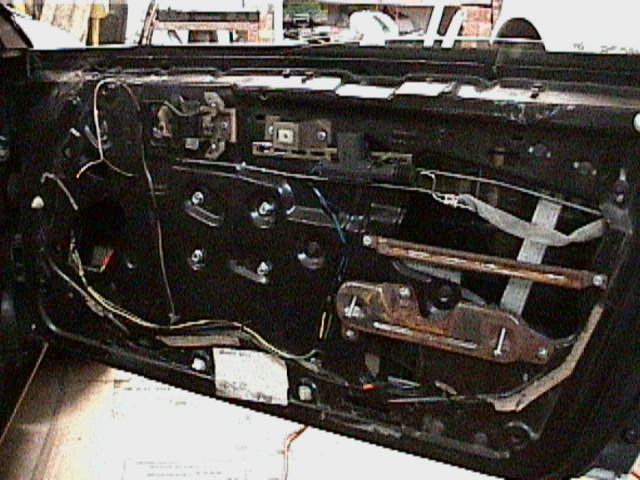

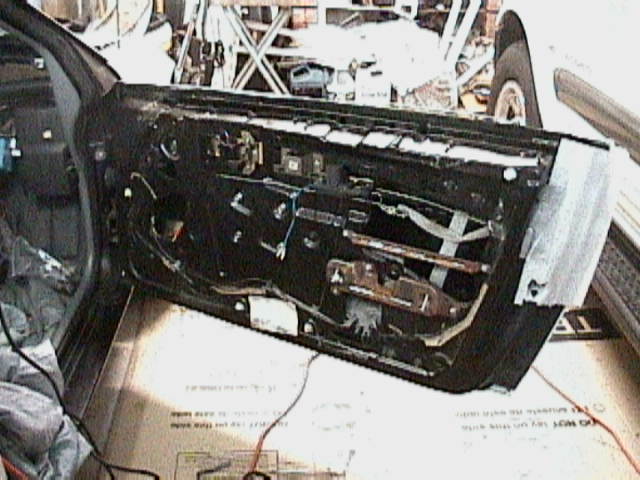

Installing the power windows

Installing the power locks:

Subwoofer installation

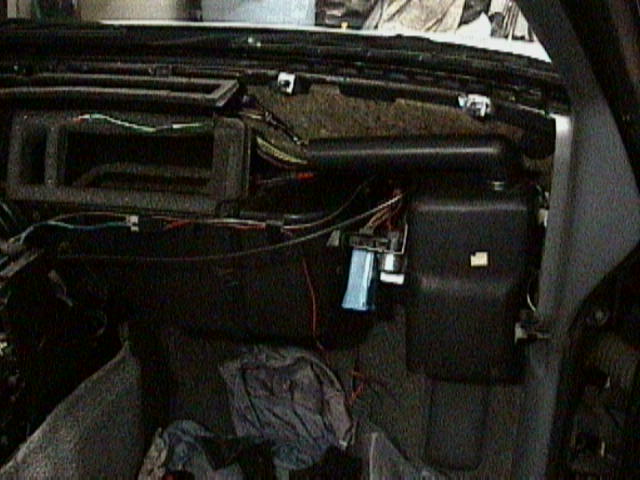

Cross Car wiring installation

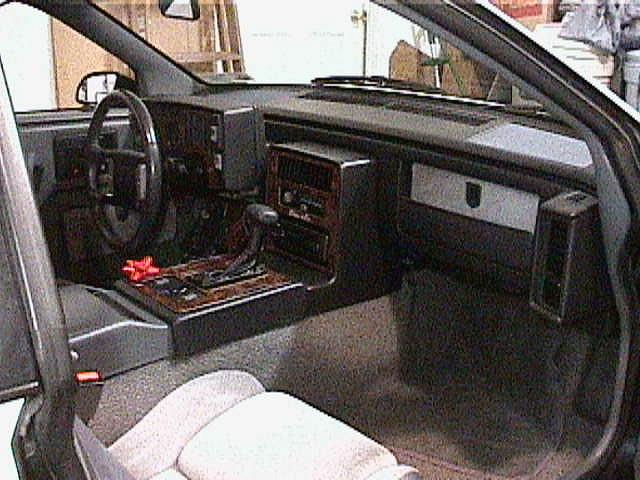

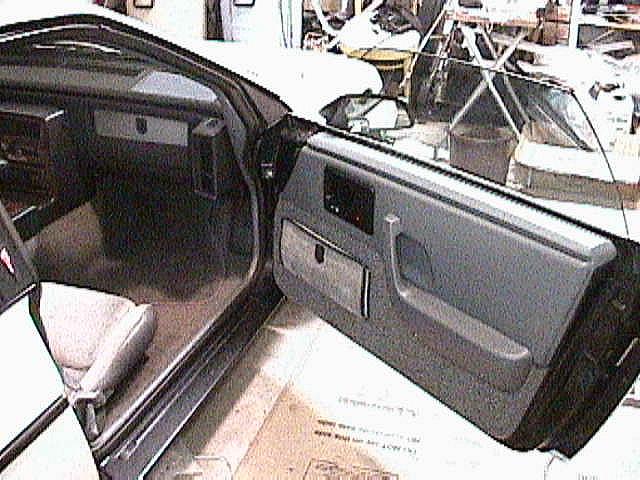

Completion:

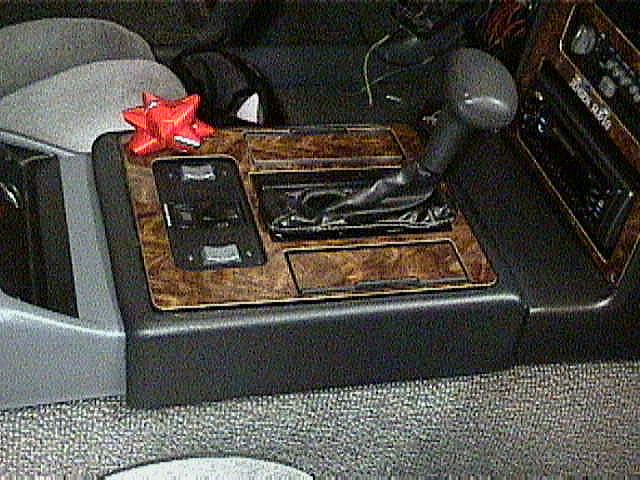

A nice Christmas Present to myself:

Technical Info

1G2PE11R7JP224057

Here's what the VIN says:

Here's what the RPO codes say:

(This is what the car had when it left the factory.  A complete list of RPO codes is available from Fiero Online Service Guide )

AAA   A coating on the glass
AR9   Seat, front bucket, driver, passenger, manual reclining

A01   Window, deep tinted all, Soft Ray

C49   Defogger, rear window, electric

C60   Air conditioner, front, manual controls

D35   Mirror, outside, rearview (painted)

D4P   Gear, speedometer driven (P) 30 teeth 25519845 (blue)

D9C   Gear, speedometer drive (C) 35 teeth 94408341

E5Z   ???

LR8   Engine, 2.5L L4

F17   ???

K60   Generator, 100 ampere

NA5   Emission system, federal requirements

MD9   3-speed automatic transmission (THM125C)

MX1   3 speed automatic transmission

PB4   Lock kit, aluminum wheel (missing)

N36   Steering wheel, rally 4-spoke (86-88)

N78   Wheels, Hi-Tech Turbo, aluminum 14 x 6

	(Replaced see below)

PB4   ???

PON   ???

QFE   P185/75R14 blackwall, steel-belted (86-88)

	(Replaced see below)

UM7   ETR AM/FM stereo w/clock, seek & scan (86-87)

	(Replaced see below)

U66   Speaker system, 4, dual front dash mounted, dual extended
      range, package shelf/quarter

VK3   License plate, front mounting package

V73   Vehicle statement US/CANADA

WDV   ???

WV9   Package, value leader, (88) (2PM37 + WV9 = WPE37)

40U   White, U (upper of two tone)

6RC   Left Front Spring Code = 4 (1 to 5 stiff to soft)

7RC   Right Front Spring Code = 4 (1 to 5 stiff to soft)

8UC   Left Rear Spring Code = 2 ( 1 to 4 stiff to soft)

82B   Ripple cloth, Dark Gray

82I   Interior Trim, Medium Dark Gray

829   ???

9UC   Right Rear Spring Code = 2 ( 1 to 4 stiff to soft)

Here's what the Previous Owner added:

AD3   Window, hinged roof (Sunroof)

N33   Steering column, tilt type

NK4   Steering wheel, leather wrapped, 4-spoke (86-87)

V56   Luggage carrier, deck lid (87-88)

16x8 5 Spoke Sport Edition Valore Aluminum Alloy Wheels

P225/50ZR16  Tires Rear Kumho Estca Supras

P205/55ZR16 Tires Front Kumho Estca Supras

Here's what I have added:

(As of 1/ 6/ 2002, using 100% factory original parts except where noted)

A31   Window, electric control

AU3   Power door locks (aftermarket actuators, factory switches)

BC8   Front door pocket RH and LH (available only w/A31)

A90   Deck lid release, remote control, electric

UQ6   Speaker, sub woofer (86-88)

Aftermarket Equipment:

Floor Mats, front carpeted

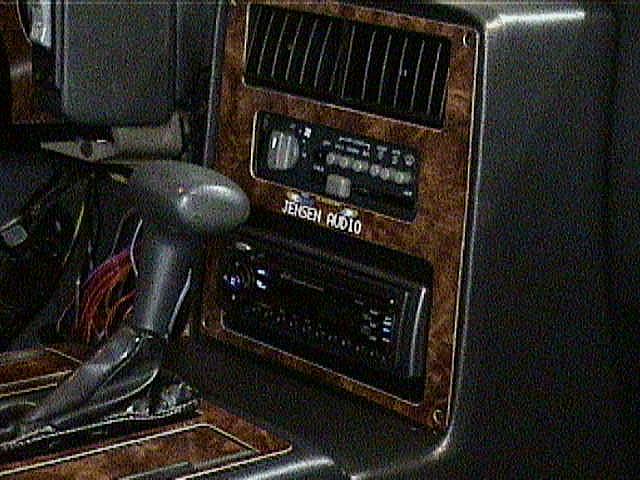

AM/FM Stereo, Jensen MP3510 MP3 CD Player with remote control

Wood grain overlay on console

Here's what I have in work:

CD4   Wiper system, pulse
DG7   Mirror, RH and LH remote control, electric

K34   Cruise control, electric (aftermarket w/ factory handle)

NP5   Steering wheel, leather wrapped, 3-spoke (Indy Black Leather)


Here's what I would like to add someday:

(I'm not sure exactly what some of this really is,

but if Pontiac once offered it, then I want it)

AF9   Lumbar seat, adjustable, driver, passenger (88)

AV3   Fastener, cargo tie down
B20   Interior, luxury (w/trim codes 662,822)
B48   Deluxe trunk trim
B57   Trim, extra, Deluxe
B97   Molding, extra lower accent

CJB   T-Tops (88) (I wish)

DB4   Sunshade, windshield, with pockets
D34   Mirror, visor vanity

D74   Mirror, inside, RH visor vanity, illuminated

D80   Extension, rear end panel (spoiler)

TR9   Lamp group, courtesy consists of;
      U25 Rear compartment lamp
      U29 Instrument panel, courtesy

MG3   Transmission, manual, 5-speed (Muncie)
25    Rear compartment lamp
U29   Instrument panel, courtesy
