Here i will try to present you with training equipment you can build yourself or have built for you.
These blueprints where e-mailed to me by Bill Holland
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| THE TOOLS Here i will try to present you with training equipment you can build yourself or have built for you. |
||||||||||||||||||||||||
| How to build a Bench out of wood | ||||||||||||||||||||||||
| After 2 store bought benches that where not heavy enough for my usage and being cheap i decided to build one out of wood.This is a simple project the only tools you need are a saw and a drill and spent 20dollars on materials.The Dimisions are 11 1/2"x47"x15" with a 44" spacer on one end to fit in my power rack to help center it in the rack.I took one of the pads off the benches i trashed.here is the bench. | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||

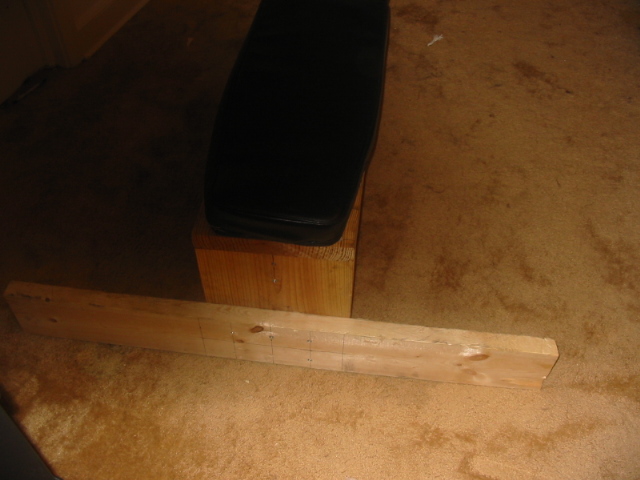

| the stabilizing bar cut to fit inside my rack | ||||||||||||||||||||||||

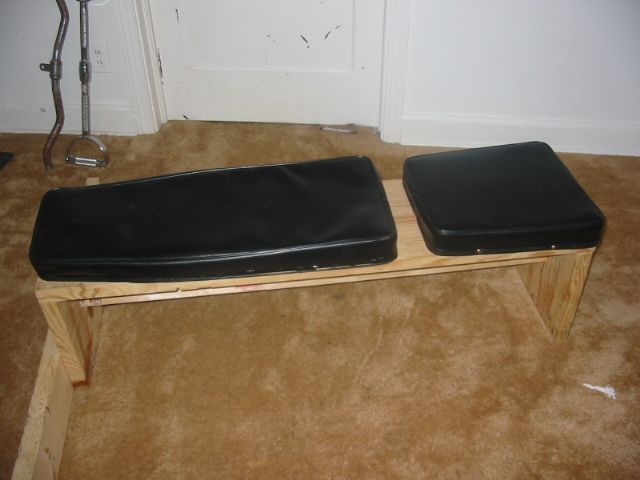

| the bench | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||

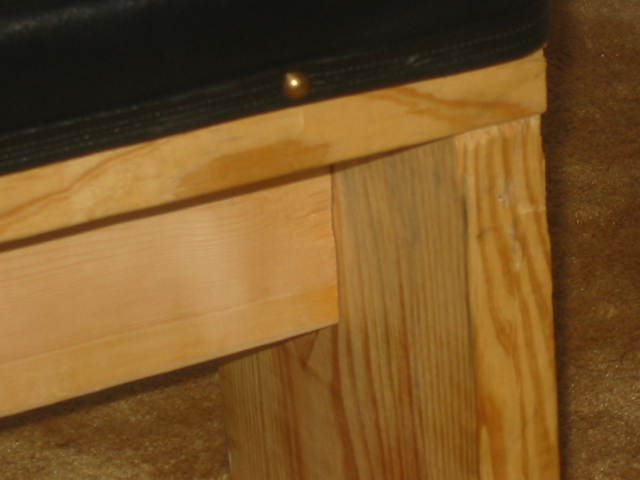

| corner construction | ||||||||||||||||||||||||

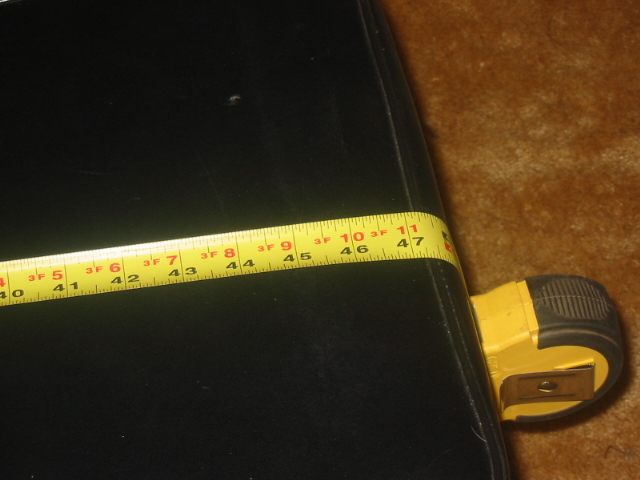

| 47" in legnth | ||||||||||||||||||||||||
|
||||||||||||||||||||||||
|
||||||||||||||||||||||||

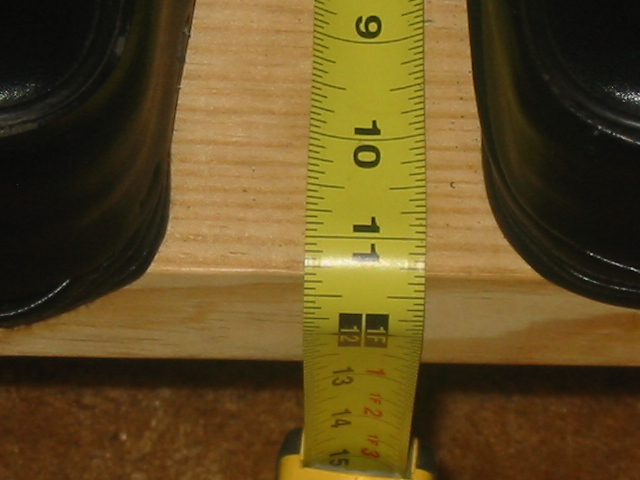

| 11 1/2 inches in width | ||||||||||||||||||||||||

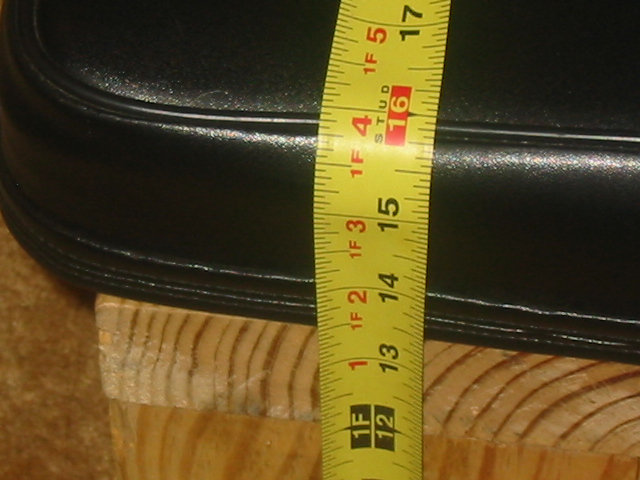

| Total heigth 15 1/2 inches | ||||||||||||||||||||||||

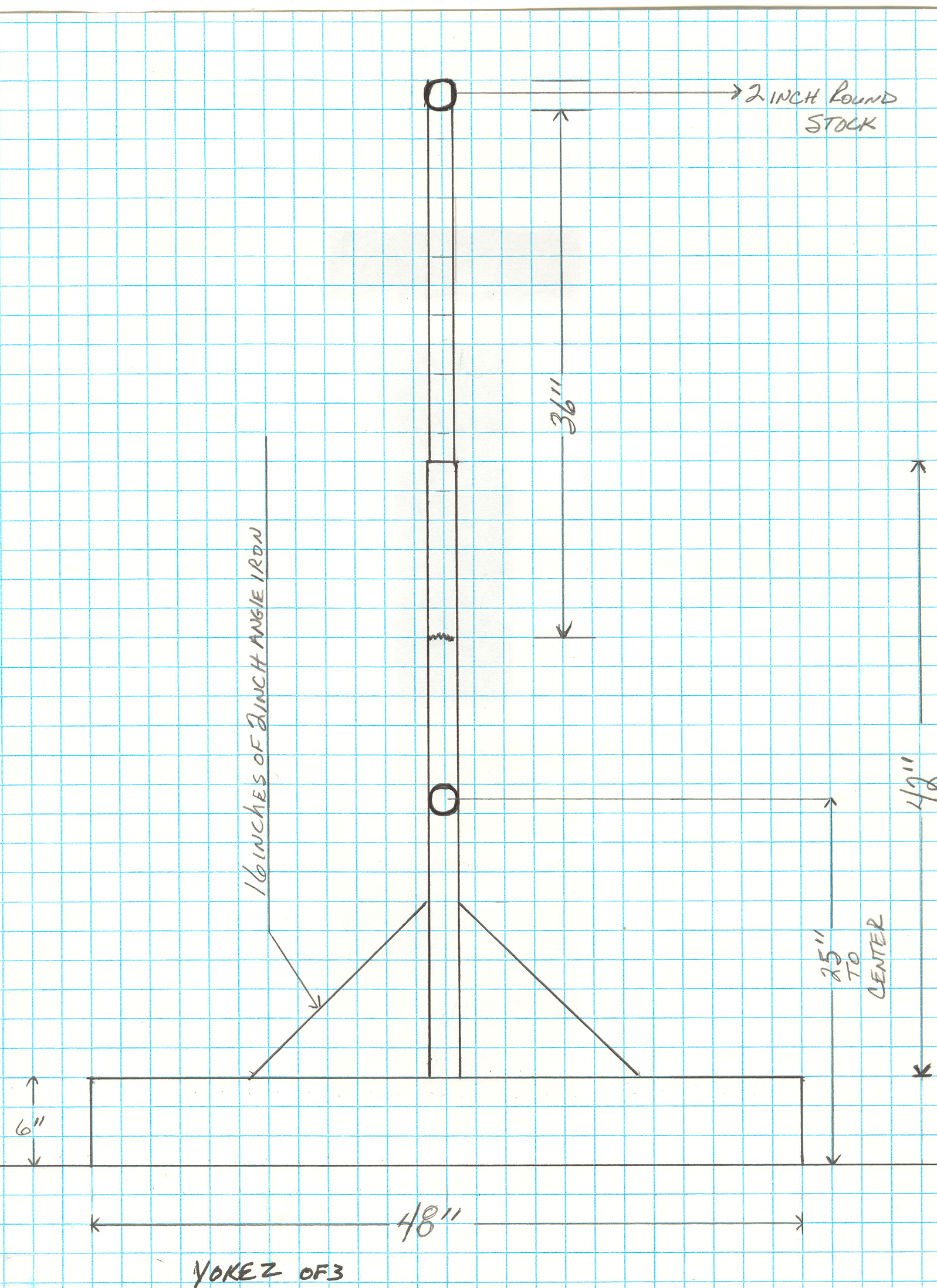

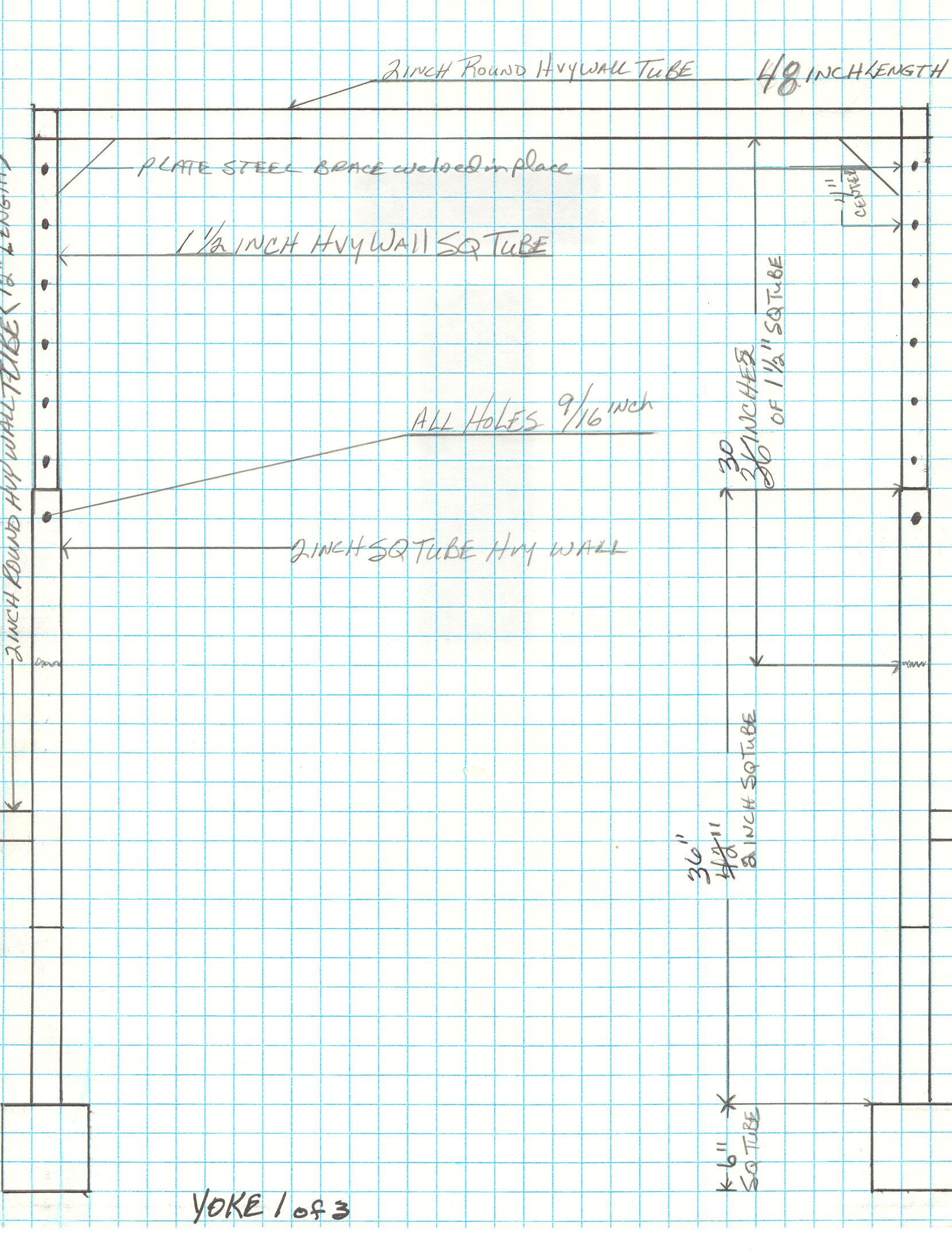

| BLUEPRINTS ON HOW TO BUILD A YOKE These blueprints where e-mailed to me by Bill Holland |
||||||||||||||||||||||||
|
||||||||||||||||||||||||
