Landsverk L180 6x4 Armoured Car |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

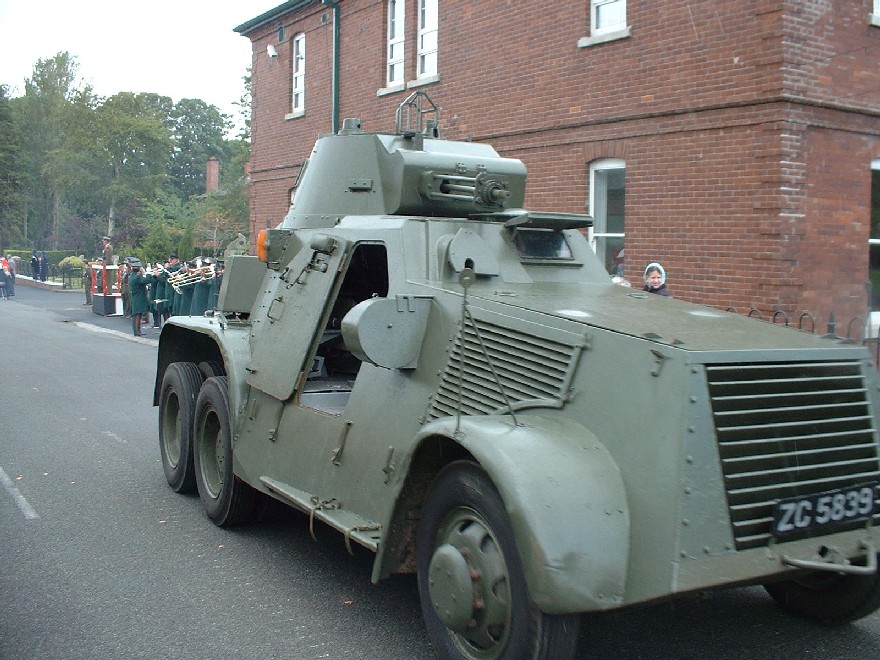

Landsverk L180 at the Cavalry Corps 80th Anniversary Copyright © Curragh |
|
|
|
|
|
|
|
|
|
|
|

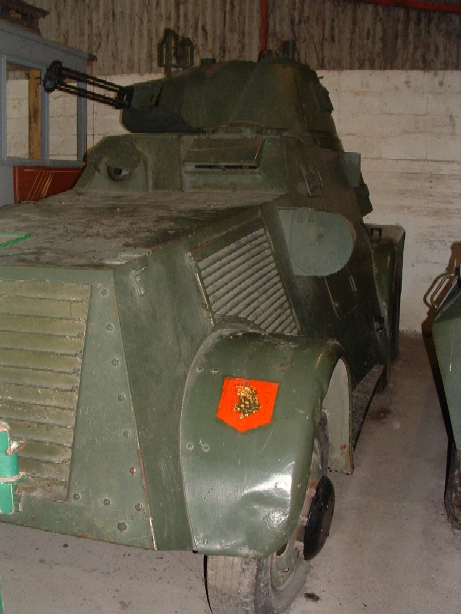

Landsverk L180 at the National Transport Museuum Copyright © Irish Armored Vehicles |
|
|
|
|
|
|
|
Background |
|
|
|
|
The L180 were acquired new in the 1930s from Sweden and were delivered in 1937. |
|
|
|
|
|
|
|
Vehicle Specification |
Crew |
5 |
Including Driver and Rear Driver |
Armament |
20 mm Madsen AT Gun and 2x.303in Madsen MGs |
Maden replaced in 1974 with a 20mm Hispano_Suiza Cannon |
Unladen Weight |
.Kgs |
. |
Combat Weight |
7 tons 18cwt |
. |
Length |
5,860mm |
. |
Width |
2,240mm |
. |
Height |
2,285mm Yurret Top |
?mm Turret |
Max. Speed |
100 kph |
Open road |
Cruise Speed |
. kph |
. |
Range |
300Km |
Open road |
Max. Vertical Step |
. |
. |
Max. Trench |
. |
. |
Armour |
5 mm Roof, 9mm Hull |
15mm Turret Mantlet |
Ballistic Protection |
.303 |
|
Ballistic Protection |
. |
Fontal Arc |
Ballistic Protection |
. |
. |
Engine |
Bussing-Nag V8 7,900cc 160bhp |
1956/57 Ford V8 5,195cc 155bhp |
Transmission |
. |
5 Speed Manual Forward & Reverse |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
