Midi Cable Optoinsulated

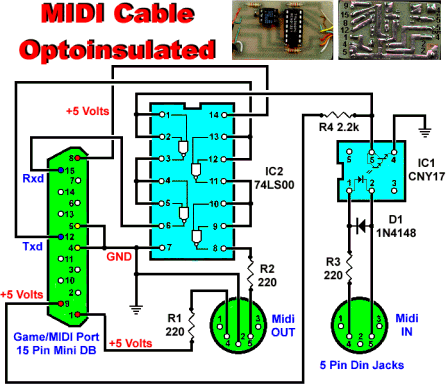

Here's a very good schematic if you want to hook your Sound Blaster up to your synthesizer.
MIDI Cable Optoinsulated Project

Note:
MIDI OUT connector must be connected with synthesizer MIDI IN port.
MIDI IN connector must be connected with synthesizer MIDI OUT port.
