MODEL 300 THROTTLE BODY INJECTION

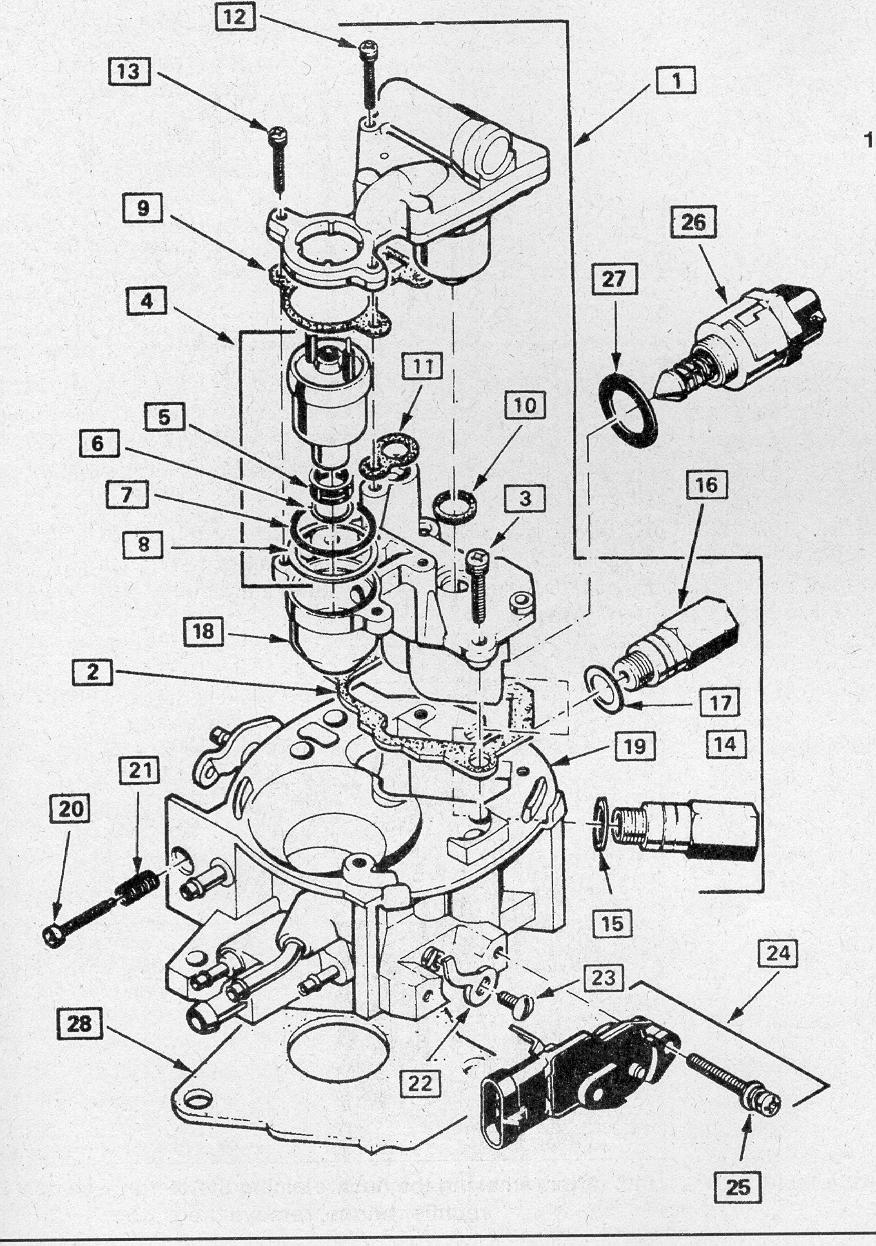

Model 300 Throttle Body Injection (TBI) unit (1986 and	earlier models)- components
	1. Fuel Meter Assembly 2. Fuel Meter Body Gasket 3. Fuel Meter Attaching Screws and Washers 4. Fuel Injector Assembly 5. Fuel Injector Filter 6. Small O-Ring 7. Large O-Ring 8. Fuel Injector Back-Up Ring Washer 9. Fuel Meter Cover Gasket 10. Pressure Regulator Dust Seal 11. Fuel Meter Outlet Gasket 12. Long Screw and Waher Assembly 13. Short Screw and Washer Assembly 14. Fuel Inlet Nut 15. Fuel Inlet Nut Gasket 16. Fuel Outlet Nut 17. Fuel Outlet Nut Gasket 18. Fuel Meter Body Assembly 19. Throttle Body Assembly 20. Idle Stop Screw 21. Idle Stop Screw Spring 22. Throttle Position Sensor (TPS) Lever 23. TPS Lever Attaching Screw 24. TPS Sensor Assembly 25. Idle Air Control (IAC) Attaching Screw 26. Idle Air COntrol (IAC) Assembly 27. IAC Gasket 28. Flange Mounting Gasket
