MPFI Throttle Body 1987 and Later 2.8/3.1L V6

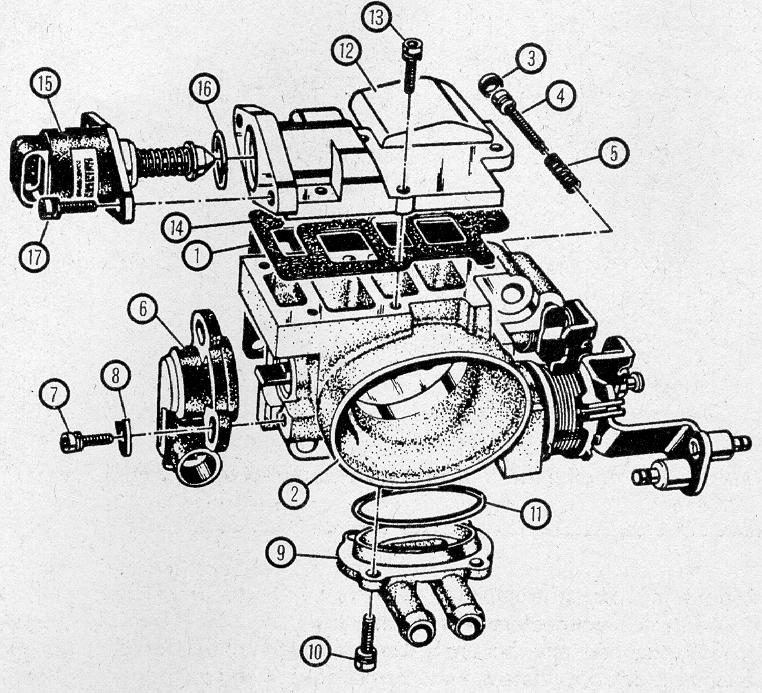

Details of the MPFI Throttle Body assembly (1987-1994 2.8/3.1L	V6 model shown- others similar)
	1. Flange Gasket 2. Throttle Body Assembly 3. Idle Stop Screw Plug 4. Idle Stop Screw 5. Idle Stop Screw Spring 6. Throttle Position Sensor (TPS) 7. TPS Attaching Screw 8. TPS Attaching Screw Retainer 9. Coolent Cavity Cover 10. Coolent Cover Attaching Screw 11. O-Ring - Coolent cover to Throttle Body 12. Idle Air/Vacuum Signal Housing Assembly 13. Idle Air/Vacuum Signal Housing Screw 14. Idle Air/Vacuum Signal Housing Gasket 15. IAC Valve O-Ring 17. IAC Valve Attaching Screw
