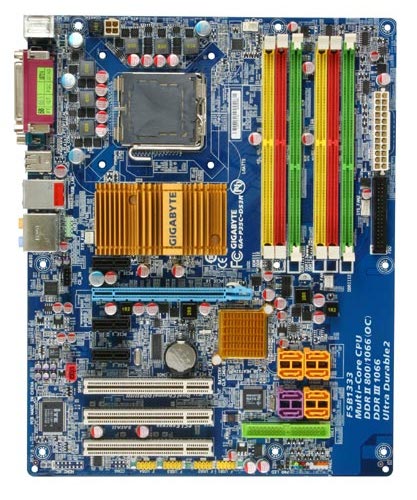

İşlemci

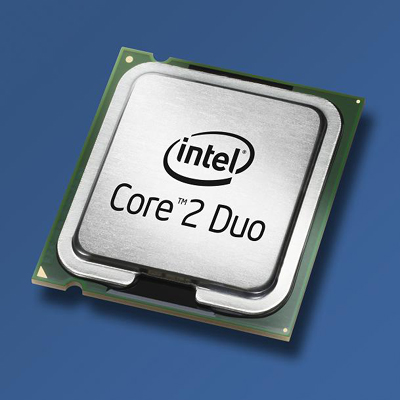

• Intel® Core™2 Extreme Quad-Core / Core™2 Duo / Intel® Pentium® Extreme / Intel® Pentium® D
• 1333/1066/800 MHz FSB

Yongaseti

• Intel® P35 Express Yonga Seti
• Intel® ICH9R
• Gigabit LAN
• 8 Kanal ALC889A Ses kontrolü

Bellek

• Dual channel memory architecture
• DDR3:
• 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory
• Support for DDR3 1333*/1066/800 MHz memory modules
• 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
• Support for DDR2 1066*/800/667 MHz memory modules

Dahili G/Ç Konnektörleri

• 1 x 24-pin ATX Güç Bağlantı Noktası
• 1 x 4-pin ATX 12V güç bağlantı noktası
• 1 x CD in
• 1 x Kasa Açık Kapalı Bilgilendirme Bağlantı Noktası
• 1 x İşlemci Fanı Bağlantı Noktası
• 1 x FDD
• 1 x front audio header
• 1 x Ön Panel Bağlantı Noktası
• 1 x IDE
• 1 x power fan connector
• 1 x Güç Lambası (LED) Bağlantı Noktası
• 1 x SPDIF in
• 2 x system fan headers
• 2 x USB 2.0/1.1 (4 bağlantı noktası desteği)
• 8 x SATA 3Gb/s

Genişleme Slotları

• 1 x PCI Express x16
• 3 x PCI
• 3 x PCI Express x1

Arka Panel G/Ç

• 1 x COM
• 1 x LPT
• 1 x RJ45 LAN
• 1 x SPDIF out (coaxial)
• 1 x SPDIF out (optical)
• 6 x ses yuvası (Hat-G / Hat Ç / Mifrofon-G / Surround Hoparlör-Ç / Arka Hoparlör-Ç / Merkez / Subwoofer Hoparlör-Ç / Yan Hoparlör-Ç
• 8 x USB 2.0/1.1
• 2 x PS/2 (Klavye/Fare)

Form Faktör

• ATX
• 305mm x 245mm

BIOS

• 8 Mbit flash ROM
• Award BIOS
• PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b
• Virtual Dual BIOS

Not

• Yonga seti üreticileri tarafından sağlanan farklı Linux destek şartlarından dolayı; lütfen Linux Driver'ını yonga seti üreticilerinin web sayfaları veya diğer web sayfalarından indiriniz.
• Çoğu Donanım/Yazılım üreticilerinin artık Win9X/ME desteği verememektedir. Win9X/ME driver desteği veren üretici oldukça web sayfamızda yayımlanacaktır.
• Duo to chipset limitation, Intel ICH9R RAID driver does not support Windows 2000 operating system.

Benzersiz Özellikler

• Tamamen Japon üretimi, yüzeye monte (SMD) katı kapasitörler
• Geliştirilmiş Hızaşırtma (Overclock)
• Ultra Dayanıklı 2 Anakart

800MHz DDR2

EPP 4-3-3-15*
(CAS-TRCD-TRP-TRAS)

Available in 2GB (2x1024MB) Dual Channel Kits

Unbuffered

OCZ Lifetime Warranty

2.0 Volts

240 Pin DIMM

Special Features


Patent-pending Reaper HPC Heatsink**

EPP-Ready

2.2V EVP***

Part Numbers

2GB (2x1024) D/C Kit PN - OCZ2RPR800EB2GK

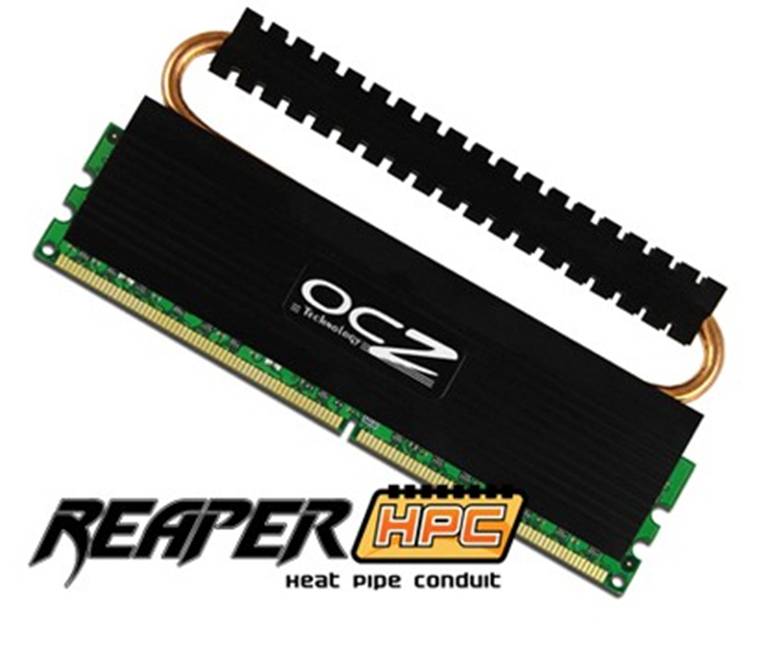

OCZ DDR2 PC2-6400 / 800 MHz / Reaper HPC / Enhanced Bandwidth Edition / Dual Channel

The Reaper HPC is an innovative patent-pending cooling solution developed by OCZ to effectively minimize heat produced by high-speed memory. As heat rises into the thermo-conductive copper heat pipe conduit, it is dissipated through the strategically-placed compact aluminum fin array. By guiding performance-robbing heat away from key memory components, the unique Reaper HPC design helps facilitate improved overclocking performance, while improving longevity and stability of the modules.

As one of OCZ’s legendary Enhanced Bandwidth (EB) editions, the PC2-6400 Reaper EB increases effective memory bandwidth through the optimization of memory latencies between the system memory, the chipset, and memory controller. At 800MHz, the Reaper EB edition is rated for 4-3-3 timings on 680i platforms, while the standard PC2-6400 Reaper is rated to run CL4-4-4.

Featuring an EPP (Enhanced Performance Profiles) programmed SPD, PC2-6400 Reaper HPC modules will immediately boot at the rated specs on the latest generation of NVIDIA® SLI™ chipsets. Although the OCZ Reaper HPC series was coined for enthusiasts, EPP eliminates the need for manual configuration and makes memory optimizations a household item for the complete range of consumers looking to maximize system performance through overclocking.

As part of OCZ’s line-up of premium memory, PC2-6400 modules are backed by a Lifetime Warranty and industry-leading technical support.

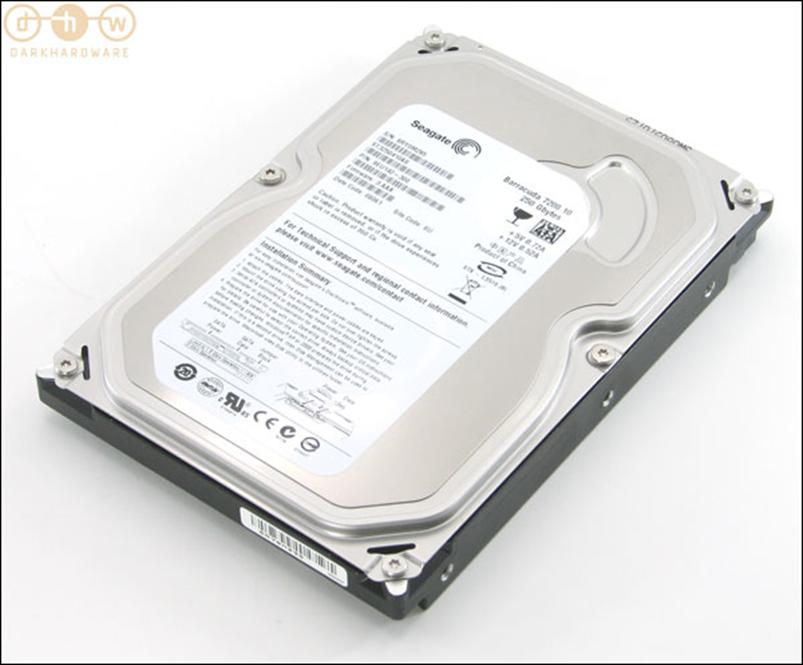

Specifications

250 GB

Model Number

ST3250410AS

Interface

SATA 3.0Gb/s

Cache

16 MBytes

Capacity

250 GB

Areal density (avg)

164 Gbits/inch2

Guaranteed Sectors

488,397,168

PHYSICAL

Height (max)

19.99 mm  (0.787 inches)

Width (max)

101.6 mm  (4.000 inches)

Length (max)

146.99 mm  (5.787 inches)

Weight (typical)

382 grams  (0.842 pounds)

PERFORMANCE

Spindle Speed

7,200 rpm

Average latency

4.16 msec

Random read seek time

<8.5 msec

Random write seek time

<10.0 msec

RELIABILITY

MTBF

700,000 hours

Annual Failure Rate

0.34%

POWER

Maximum start current, DC

2.80 amps

GÜÇ KAYNAĞI

YOK

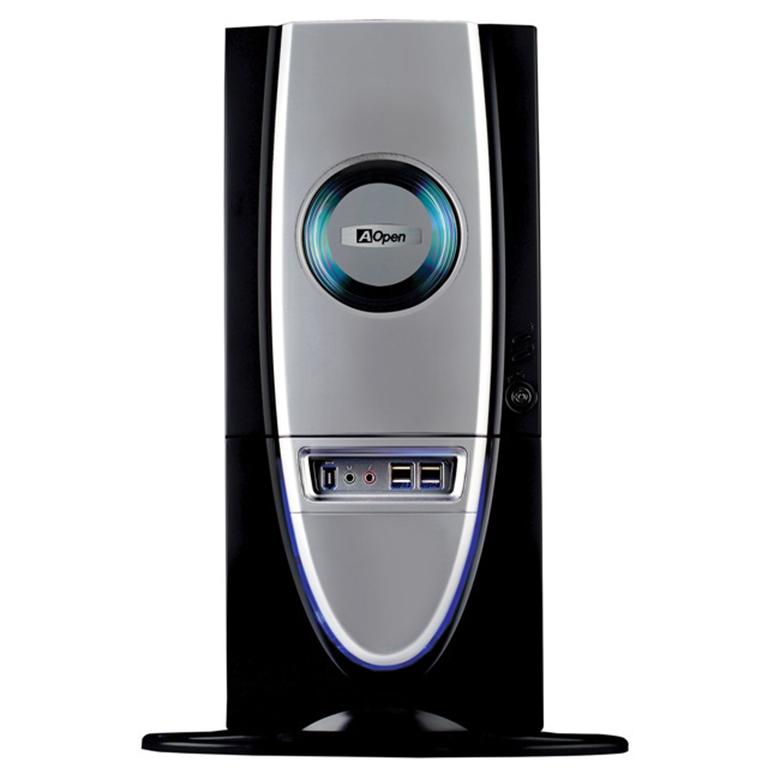

KASA TÜRÜ

FAN SAYISI

2 ADET

DİĞER ÖZELLİKLER

İNTEL ONAYLI
METALIK SIYAH
PENCERELI
SECC KASA
KASA İÇİ KATOT LAMBA
HARİCİ 3.5" 2 ADET
DAHİLİ 3.5" 5 ADET
HARİCİ 5.25" 4 ADET
4 ADET USB / 1 ADET 1394 / MİKROFON VE HOPARLÖR ÇIKIŞLARI
ÖN 90 MM VE ARKA 120 MM FAN
ISI TAHLİYE KANALI
BOYUTLAR (MM): 200(G)X475(Y)X460(D) MM
AĞIRLIK KG: 9.8
2 YIL GARANTİLİ

RENK

PARLAK SİYAH

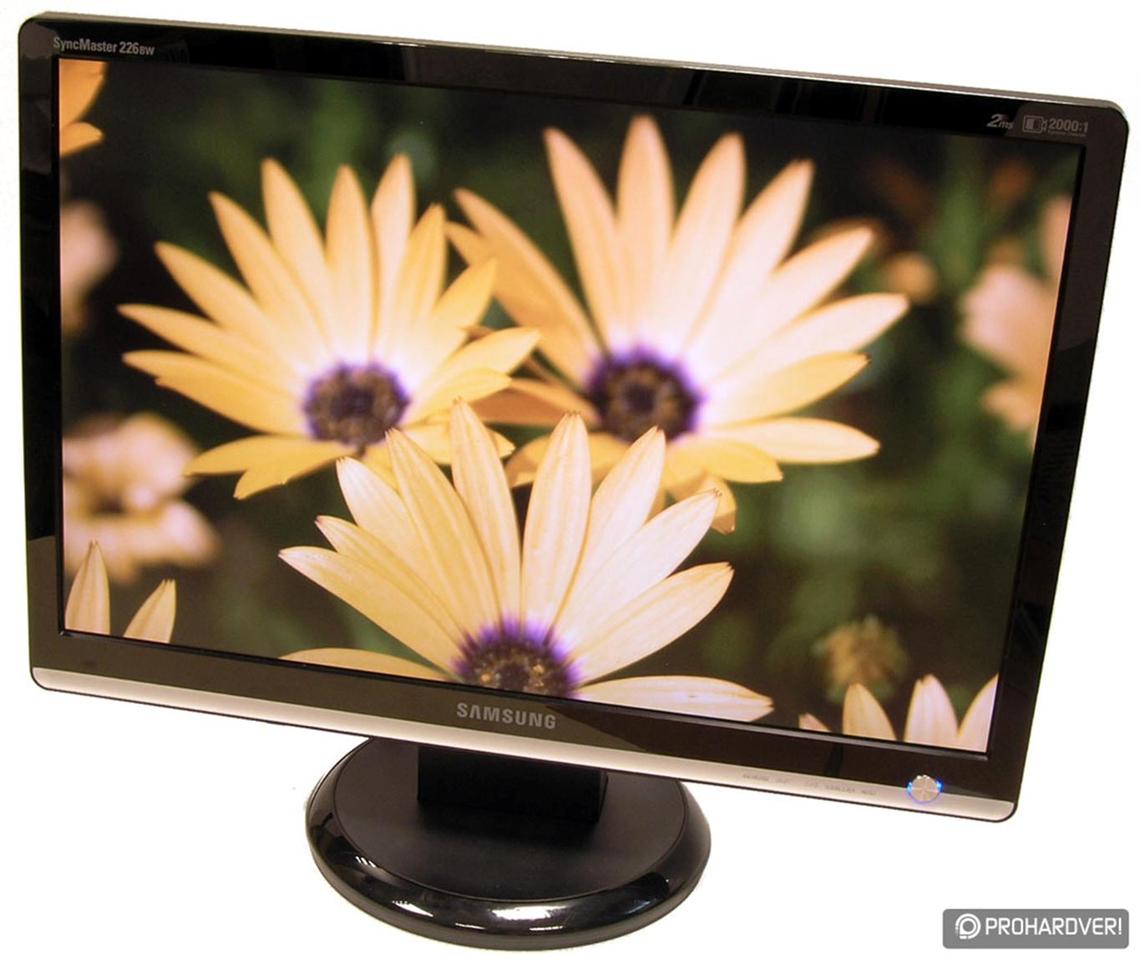

NOKTA ARALIĞI (MM)

0.282

MAX. ÇÖZÜNÜRLÜK (DPI)

1680*1050

TEPKİ SÜRESİ (MSN)

2

AYDINLIK (CD/M*2)

300

KONTRAST

1000:1

DİĞER ÖZELLİKLER

GÖRÜLEBILIR BÖLGE 22" WIDE
NOKTA ARALIĞI (MM) 0.282 X 0.282
PARLAKLIK(CD/?)(TYP.) 300 CD/M2
KONTRAST ORANI(TYP.) 1000:1(DC 3000:1)
GÖRÜNTÜLEME AÇISI(H/V) 160/160
TEPKI SÜRESI(MS)(TYP.) 2(GTG)
YATAY FREKANS(KHZ) 30~81
DÜŞEY FREKANS(HZ) 56-75
MAKSIMUM ÇÖZÜNÜRLÜK 1680X1050
DESTEKLENEN RENK 16.7M
GIRIŞ VIDEO SINYALI ANALOG RGB, DVI
SYNC. TIPI SEPARATE H/V, COMPOSITE , SOG
GIRIŞ BAĞLANTILARI 15PIN D-SUB, DVI-D
PLUG & PLAY DDC 2B
GÜÇ
ÇALIŞIR DURUMDA 55W
DPMS MODU <1W
TIP BUILT-IN
HOPARLÖR X
DUVAR APARATI VESA 100MM
KABIN RENGI PARLAK SIYAH
BOYUTLAR
SET(W*H*D)(MM) (STAND'LI) 514.6*422.0*219.3
SET(W*H*D)(MM) (STAND'SIZ) 514.6*63.0*353.3
PAKETLI(W*H*D)(MM) 606.0*158.0*488.0
AĞIRLIK
SET(KG) 4,9
PAKETLI(KG) 7,4
ÖZELLIKLER .DVI(HDCP) .MAGICBRIGHT3 .BLACK HIGH GLOSSY
3 YILGARANTİLİ
