| Oil Pan - Sump System |
 |

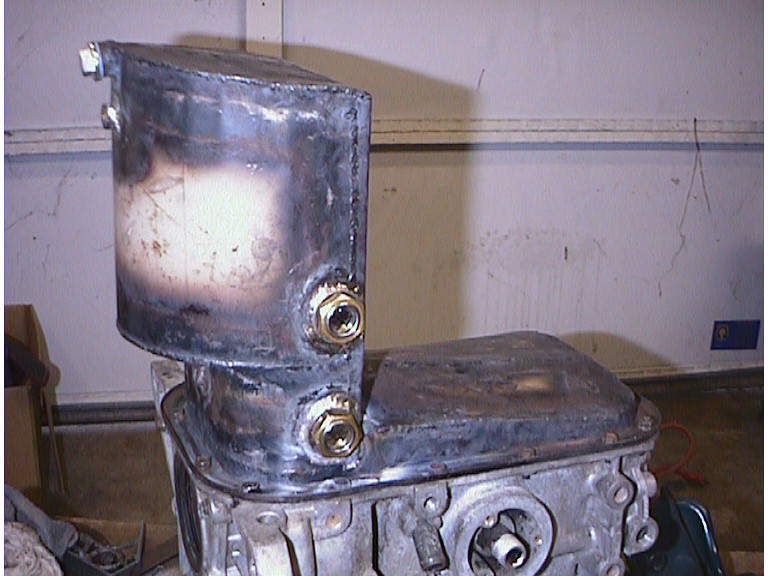

| This oil pan allows engine to be mounted 2" above my Kolb engine mount & collects oil on steep climbouts. Engine hangs 4" beyond mount. "Full" & "Low" sight glasses are 1qt apart. It has 4qt capacity. |
 |
 |

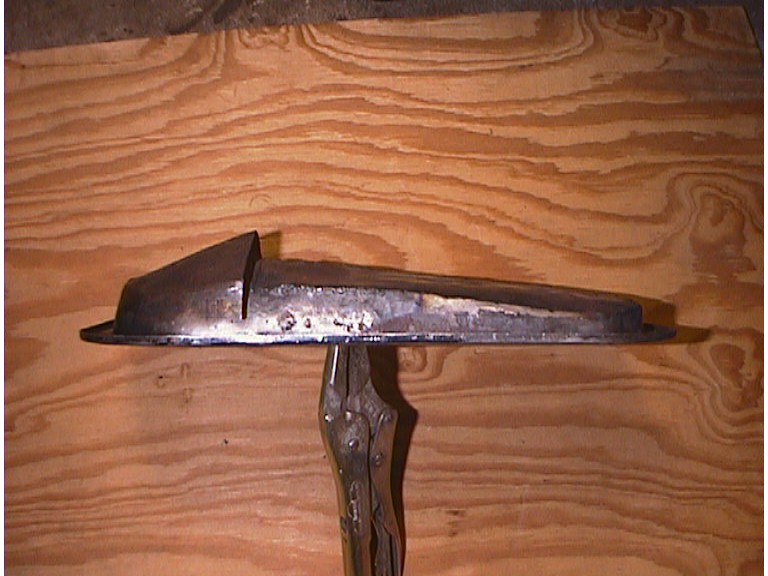

| This is the collector pan. Original oil pan was cut away except for flange & 3/4" of wall. The side wall of this piece was later modified to 3/8" all around. Left is rear, up is bottom. |
 |

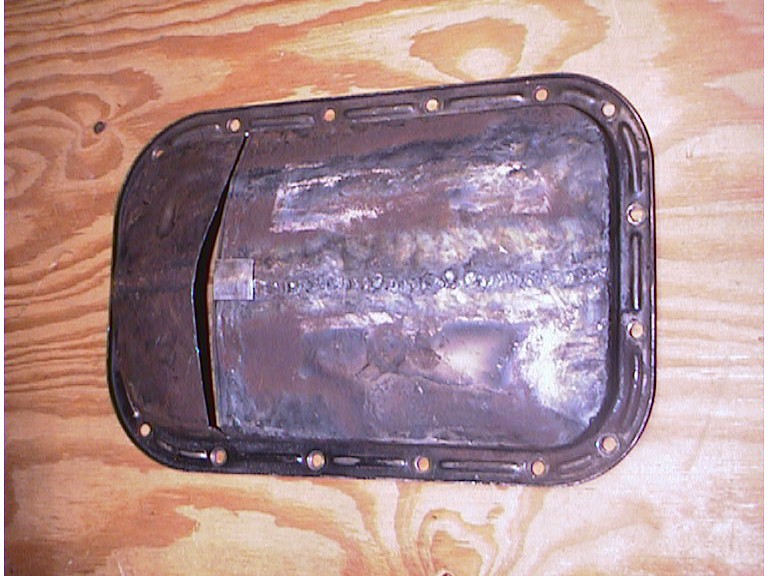

| Bottom view of collector pan. Oil drains out of open lip at rear & into tank below. |
 |

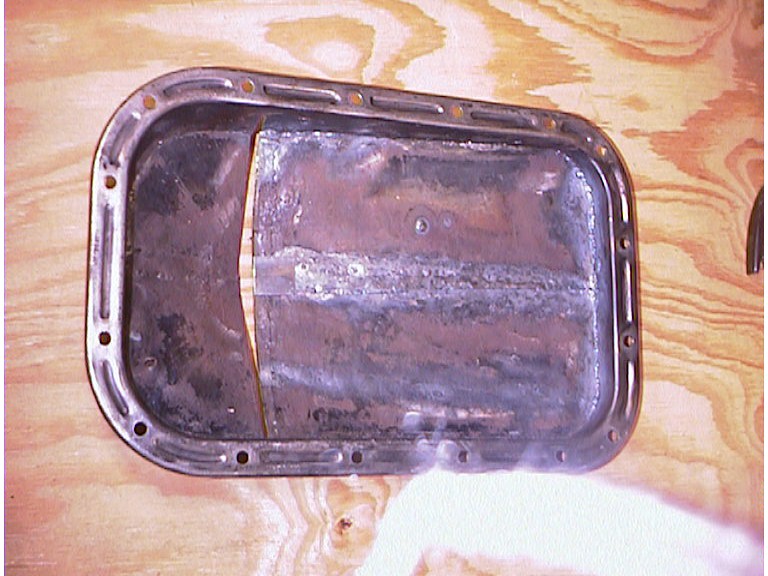

| Top, rear view of collector pan. Open slit drains oil into tank. |
 |

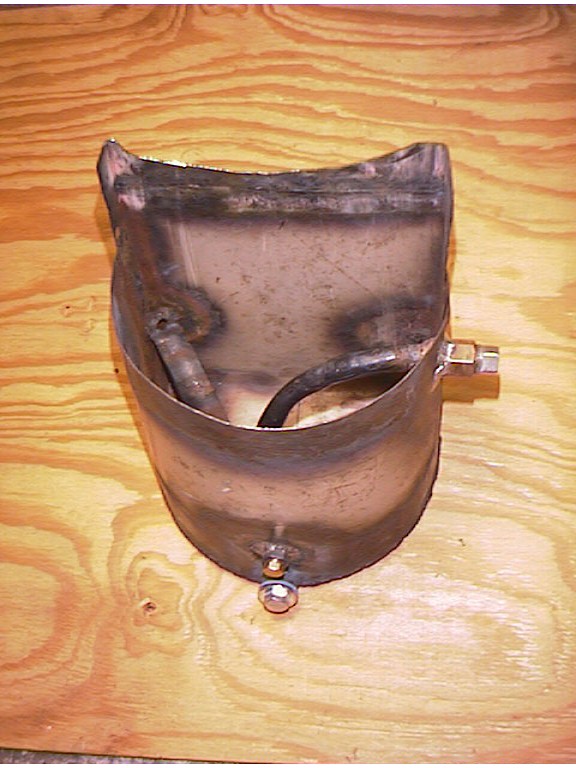

| Top, rear view of tank that will be welded to collector pan. Return oil line exits right & brace can be seen on left. Stock oil inlet by crank was plugged. The engine's external oil pump inlet will be used. |
 |

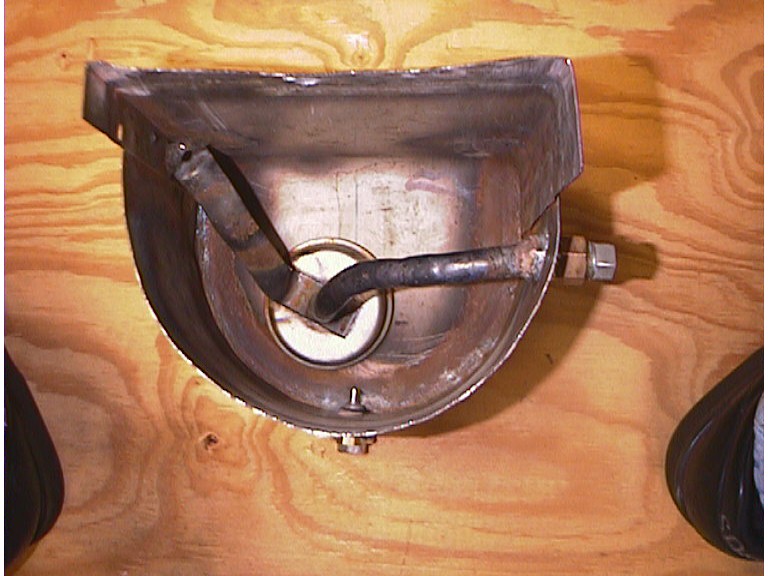

| Top view of tank. Stock oil screen on bottom. Brace is on left & oil return tube exits through wall on right. Brass fittings are silver soldered. |
 |
| Here, tank is welded to collector pan. |
 |
| Welding complete. Oil collects at top, flows down & back & drops into tank, is picked up by screen sump & exits right side port to oil pump inlet on engine block. |
 |

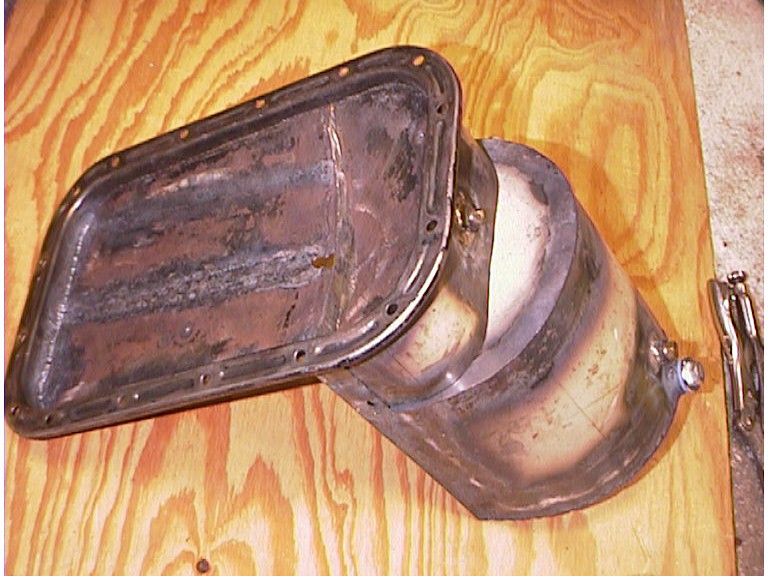

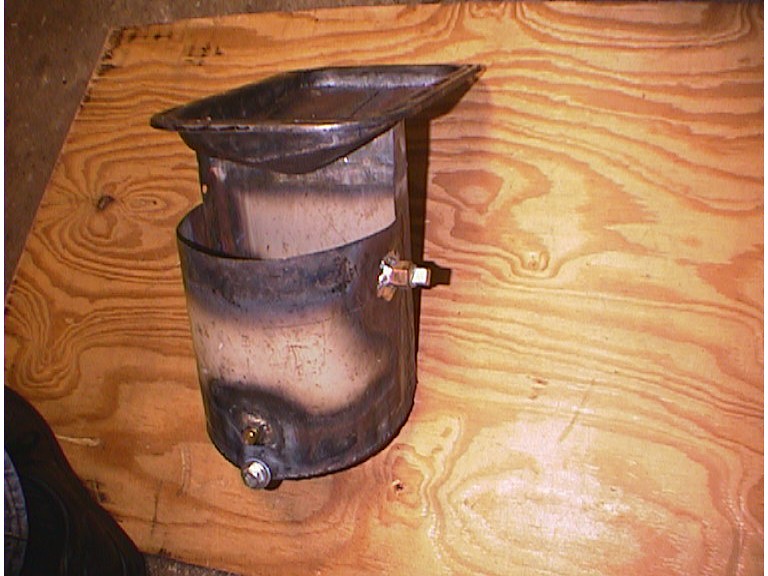

| Top rear view of finished pan and tank. Top of tank is recessed rearward for flywheel clearance. |
|
 |

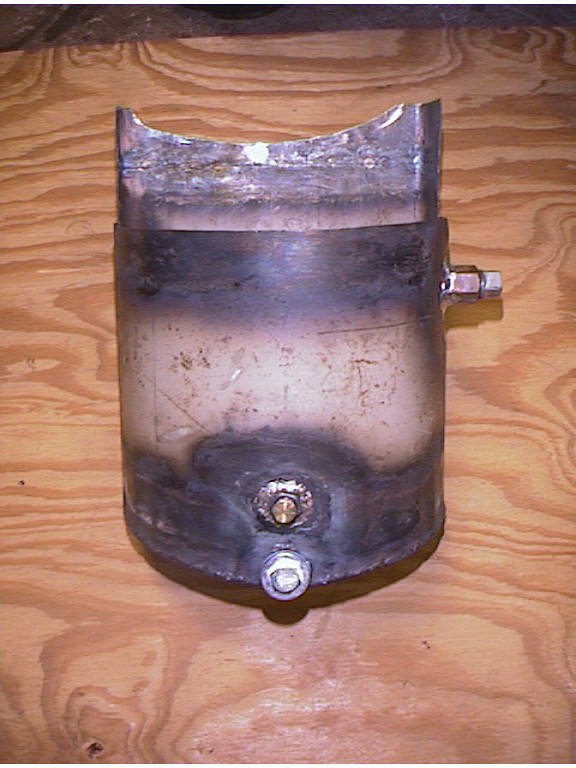

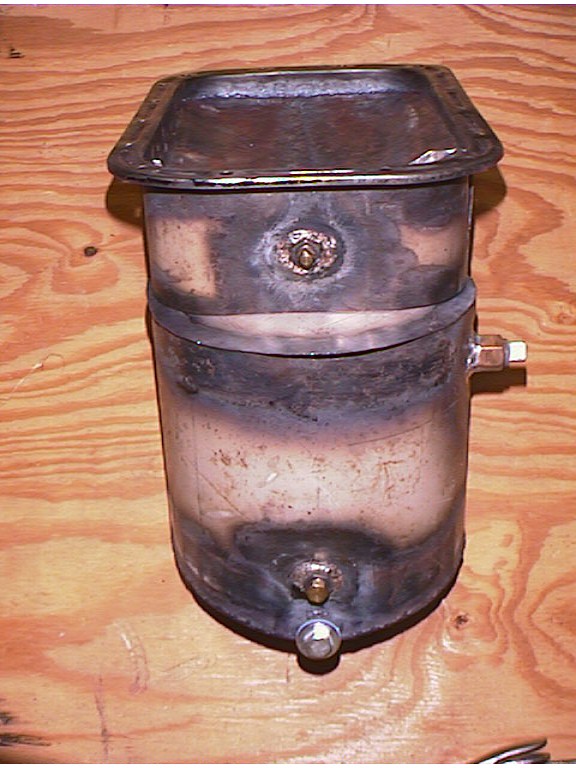

| Rear view of tank. Bottom center is drain plug, above it is oil temp fitting & top right is oil outlet fitting |
