| Crank Sensor Assembly |
 |
 |
 |
 |
 |
 |
 |

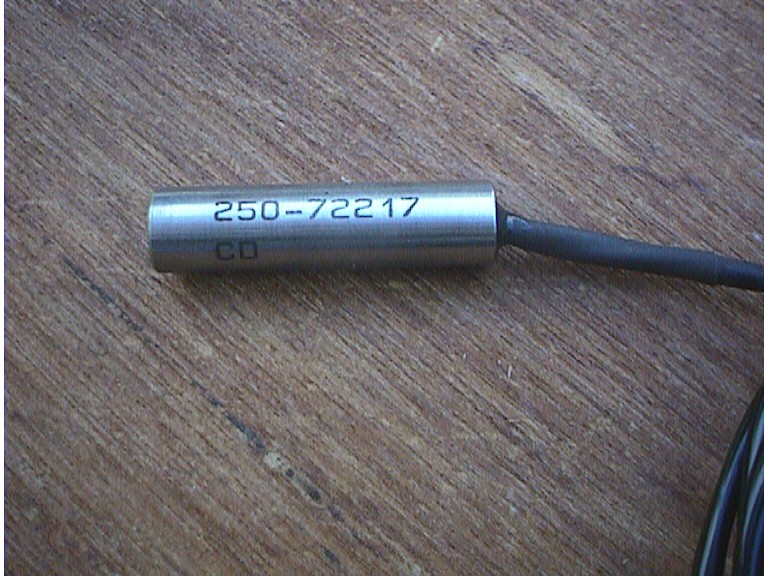

| This ia the chisel point sensor from Electromotive. The part number is shown, I'm told it is available from auto parts store but haven't researched that. |

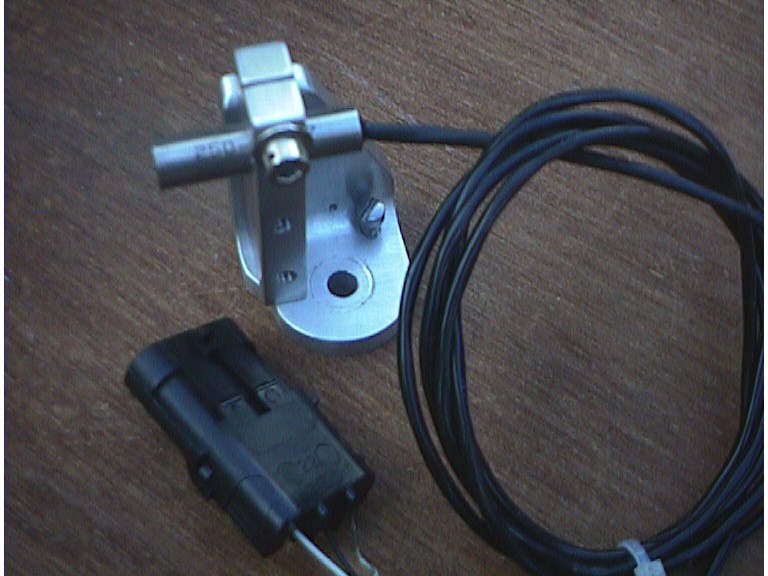

| Bracket holding sensor is made from piece of 3/8" 6061-T6 angle and 3/8" plate aluminim. |

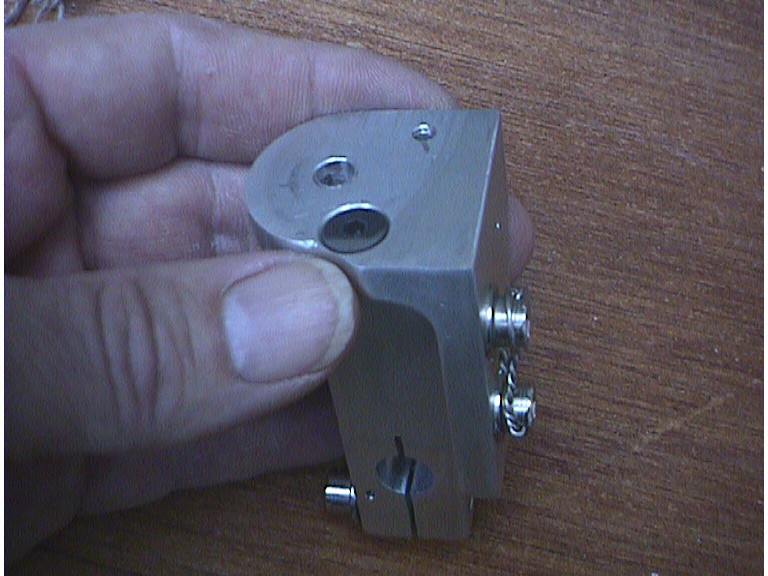

| The 3/8 plate was drilled to except sensor & slot was cut so it could be compressed with top screw. Plate is secured to angle with (3) 10-32 stainless screws, 2 thru back & 1 thru bottom. Small screw on bottom keeps assembly from rotating on block. |

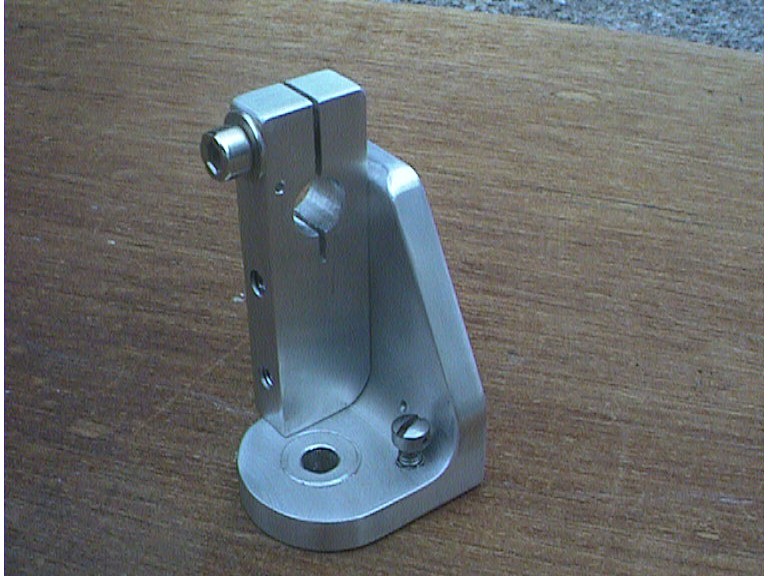

| (1) Tappered flat head hex screw thru bottom is shown by thumb, (2) hex head screws thru back, on right. |

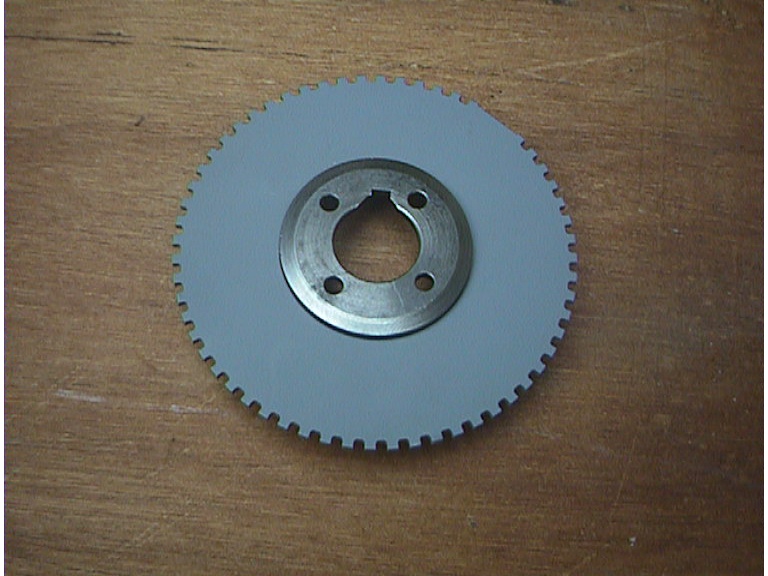

| This is a 60 tooth 6" trigger wheel from Electromotive. The center was cut out to press fit onto the back side of the crankshaft pulley. (4) 10-32 screws will permanently secure it to the pulley when timing position is determined. |

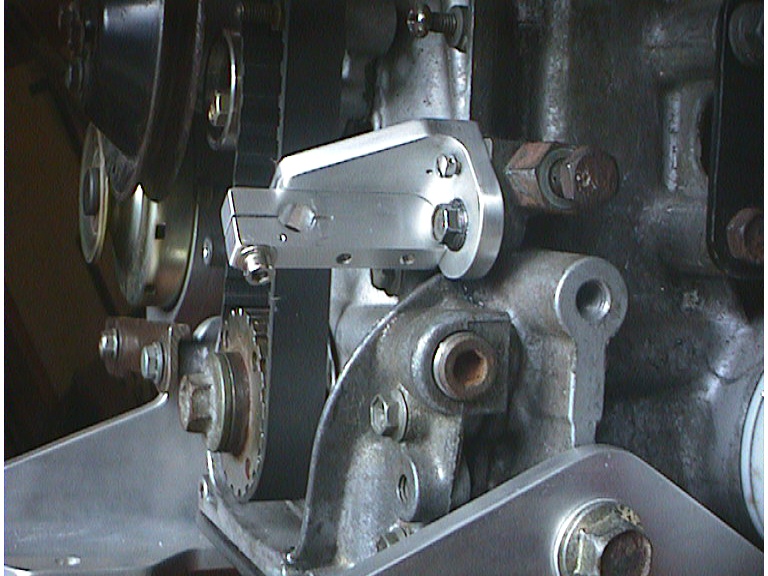

| Bracket is mounted using the 10mm bolt hole in the small machined area on the block. An 8-32 screw keeps the bracket from possible rotation |

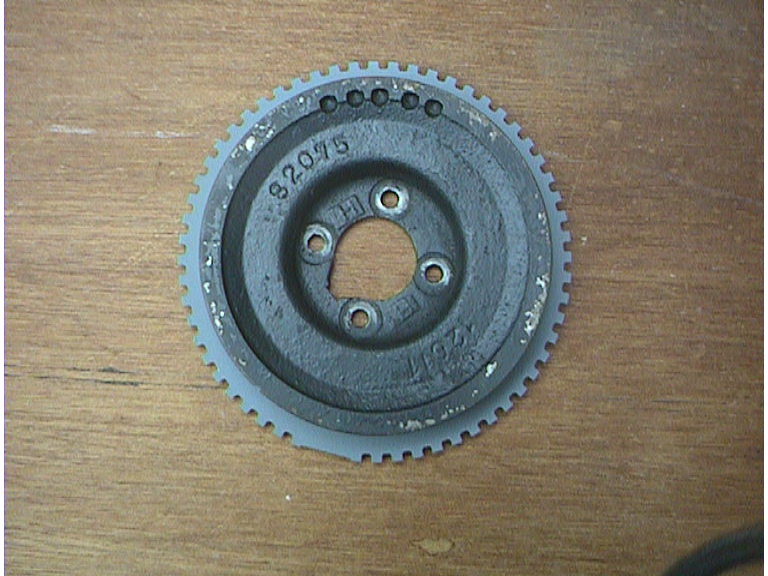

| Front side of crankshaft pulley with trigger wheel mounted behind it |
