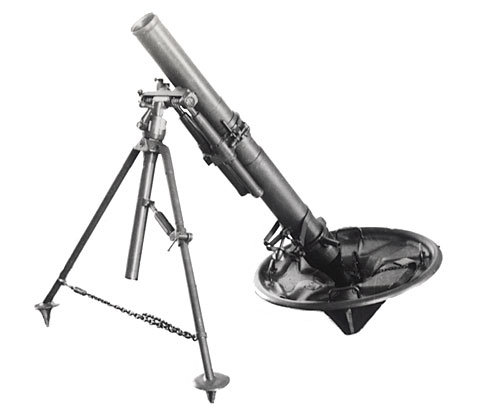

The Brandt/Voina 81.4 mm model 1939 medium mortar



This medium mortar was produced in Romania after the purchase of a license from the Brandt company. It was a standard drop - fired, muzzle - loaded, mortar, composed of three different parts : the tripod, the baseplate and the barrel itself. The weapon could be disassembled into these three parts for transport. The crew was composed from five men with three men handling the mortar whilst the third and the fourth acted as a ammunition carriers.

Technical specifications for the Brandt/Voina 81.4 mm mortar



Caliber
81.4 mm
Barrel length
1267 mm
Elevation
45° - 90°
Traverse
1050
Weight
60 kg
Ammunition used
HE / Smoke
Shell weight
6.8 kg / 3.3 kg
Maximum shell velocity
46.5 - 115 m/s / 71 - 215 m/s
Maximum range
1250 m / 3000 m
Theoretical rate of fire
25 rounds/minute
Practical rate of fire
15 - 18 rounds/minute
Crew
5 men
