| Below the tank | |||||||||||
 |
|||||||||||

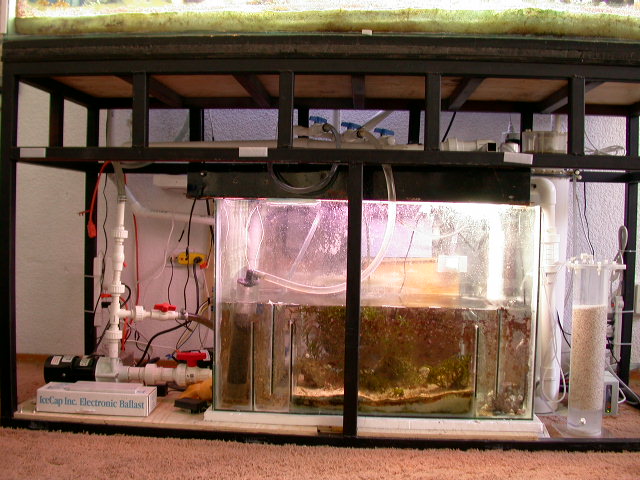

| This is the actual view of the equipment below my tank. You can see the second reactor chamber at the right, in the center there is the sump covered by coralline and the 5 bafles to eliminate micro bubbles, also inside the sump you can see the carbon chamber. Above the sump you can see the manifold system which feeds the U.V. lamp and also the carbon chamber, I also have a free ball valve used to take water from the tank when I do water changes. |
|||||||||||
 |
|||||||||||

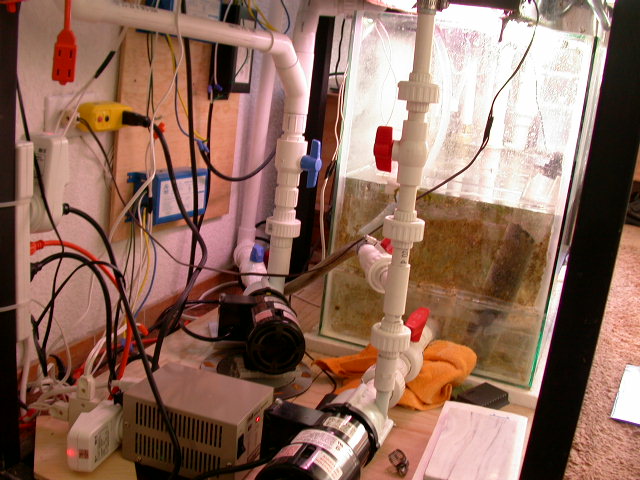

| Left view: You can see the Little giant to take water back the to tank, also the Little giant used for the closed loop (note I only used 45� elbows to reduce friction) . You can also see the digital timers which controls all the ligths. You can also see the LN (1) and Ice Cap (2) ballasts for the MH. I used 2 GFCI (ground fault circuit interruptor) to prevent electric shocks and also a titanium grounding probe to eliminate static in the water. |
|||||||||||
