| BOAT IDEAS | |||||||||||||||||||||||||||||
| 1. Here is a 40-year-old design by Henry Clark for a simple plywood pram dinghy. The sides and bottom will come out of a single 8' x 4' sheet of 1/4" plywood. It would be an ideal stitch-and-glue project. |
|||||||||||||||||||||||||||||

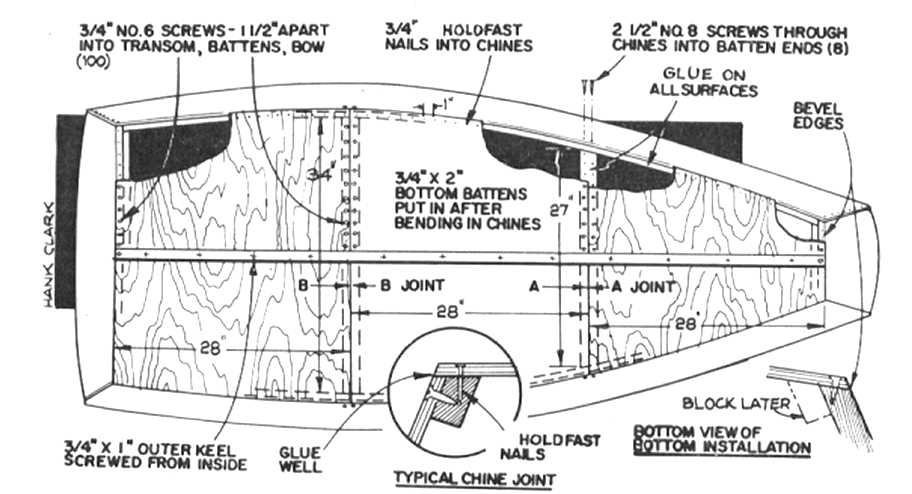

| Click here to see page 1 of the plan | |||||||||||||||||||||||||||||

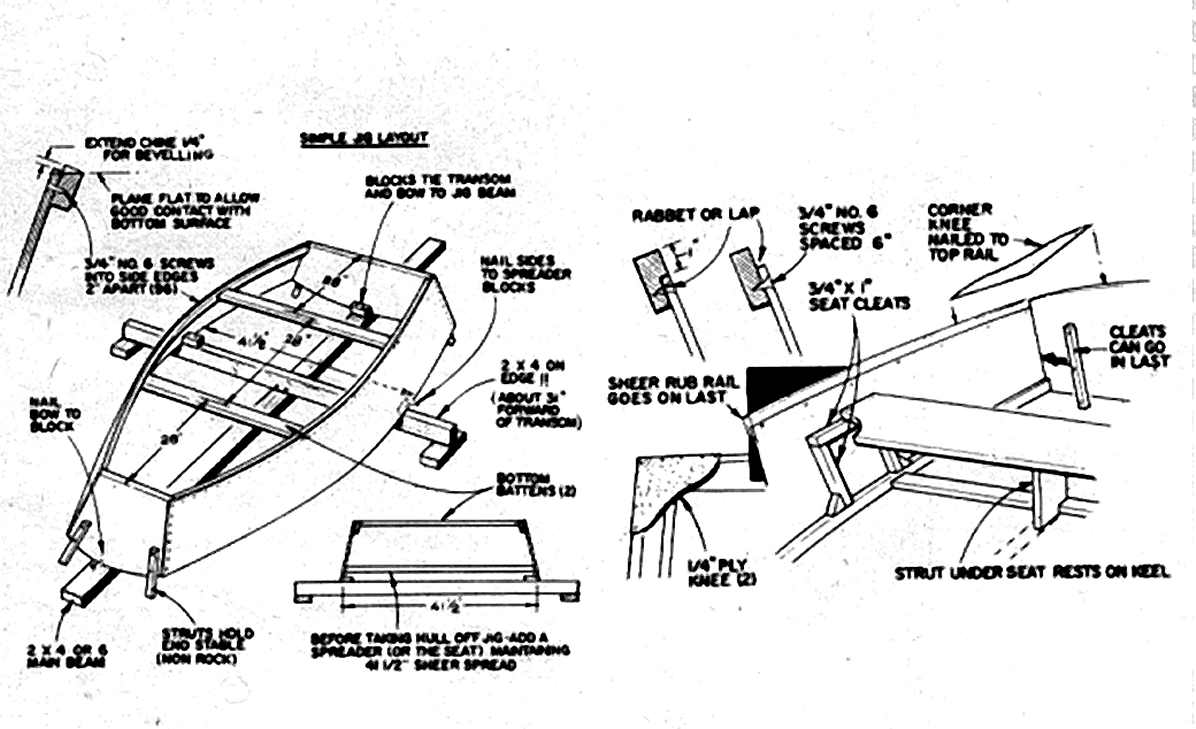

| Click here to see page 2 of the plan | |||||||||||||||||||||||||||||

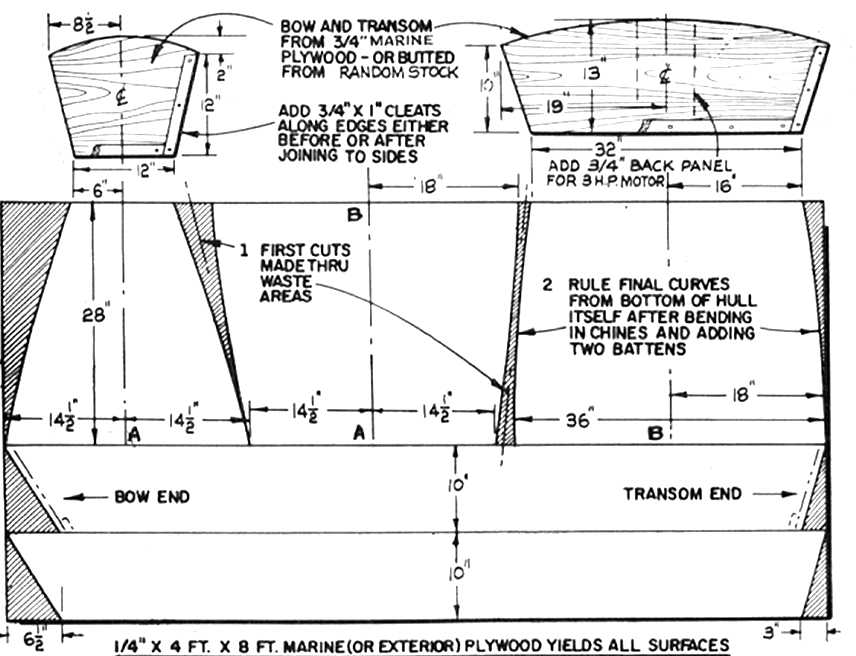

| Click here to see page 3 of the plan. |
|||||||||||||||||||||||||||||

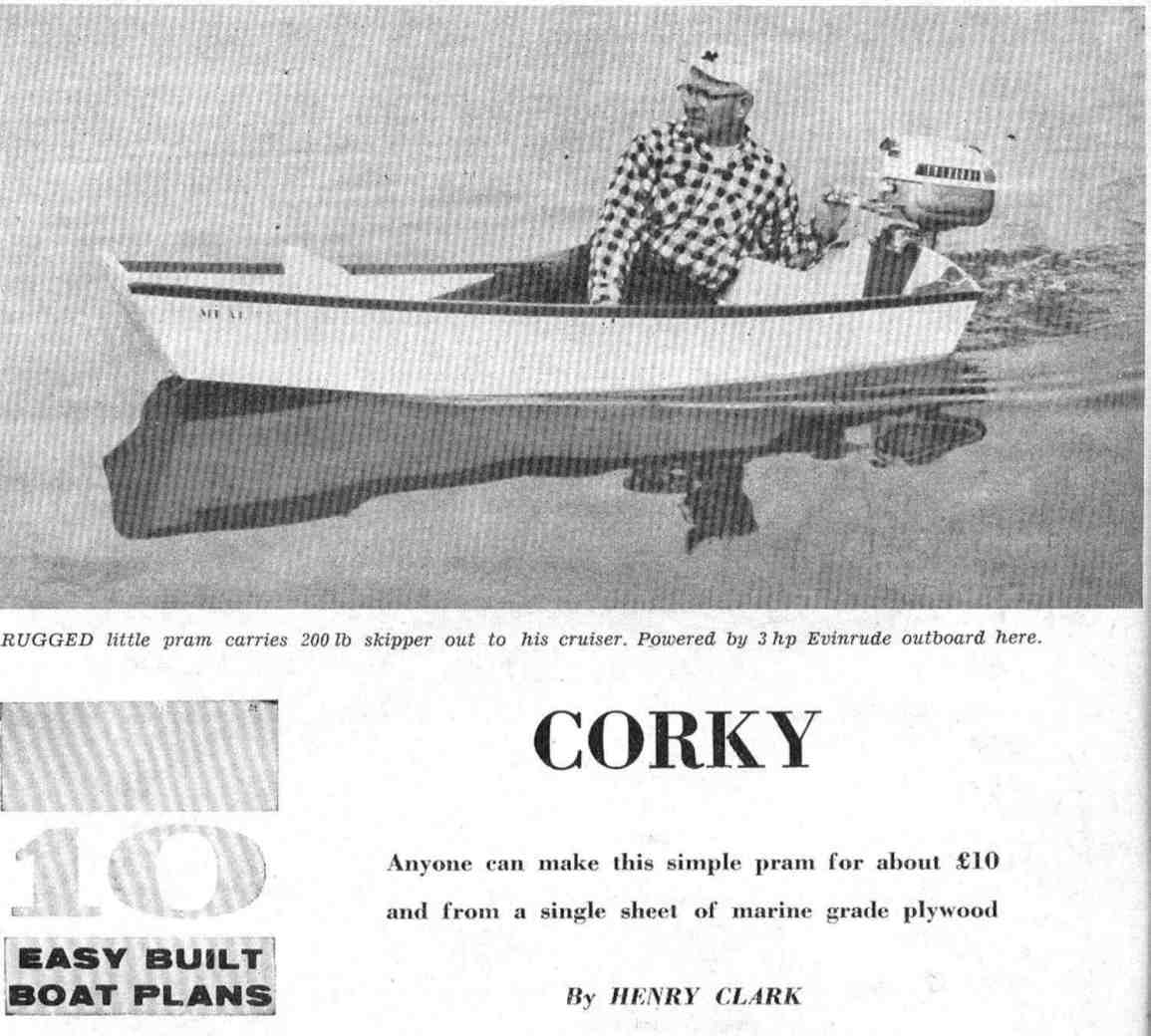

| Click here to see a picture of Corky moving right along with 200lb of crew and a 3 h.p. outboard. | |||||||||||||||||||||||||||||
| There's only one critical dimension on page 3. It's 41.5 inches from gunwale to gunwale at its widest point, measured inside the plywood before the rub rail goes on. You can buy a facsimile copy of the original plans and building instructions very cheaply from Mr Donald Goodchild. For details, go to www.dngoodchild.com | |||||||||||||||||||||||||||||

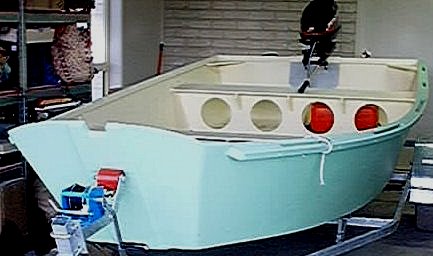

| Click here for a picture of a scaled-up Corky I built. |
|||||||||||||||||||||||||||||
| 2. Scaled up Bolger Idaho | |||||||||||||||||||||||||||||

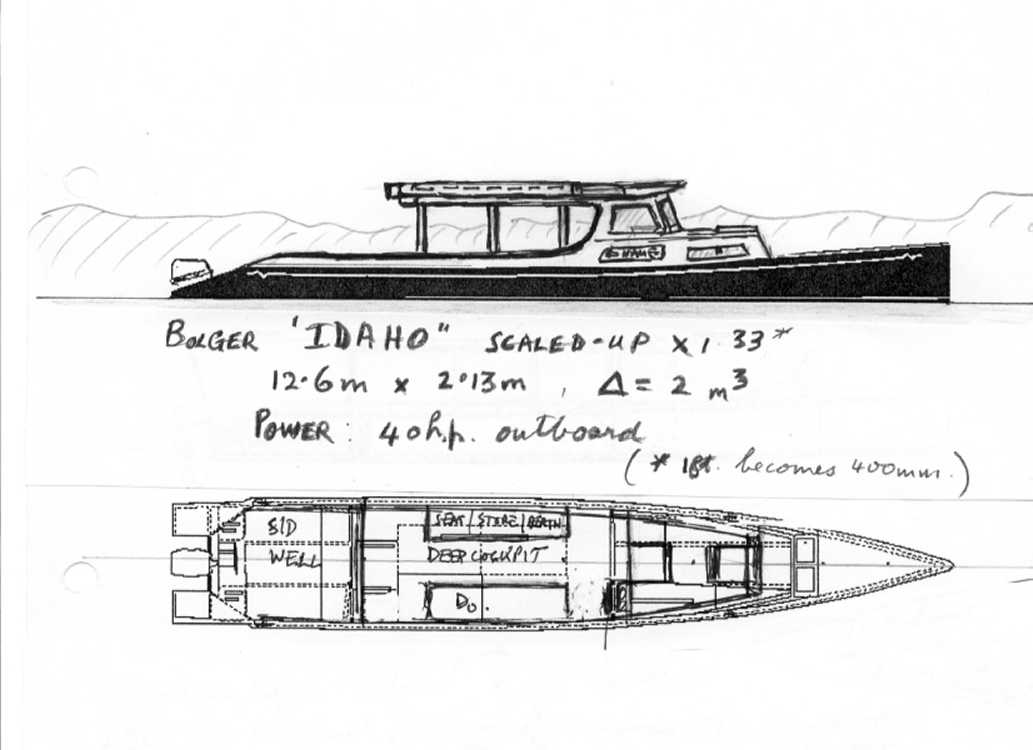

| Click here for a sketch. |
|||||||||||||||||||||||||||||
| 3. Ratcatcher | |||||||||||||||||||||||||||||

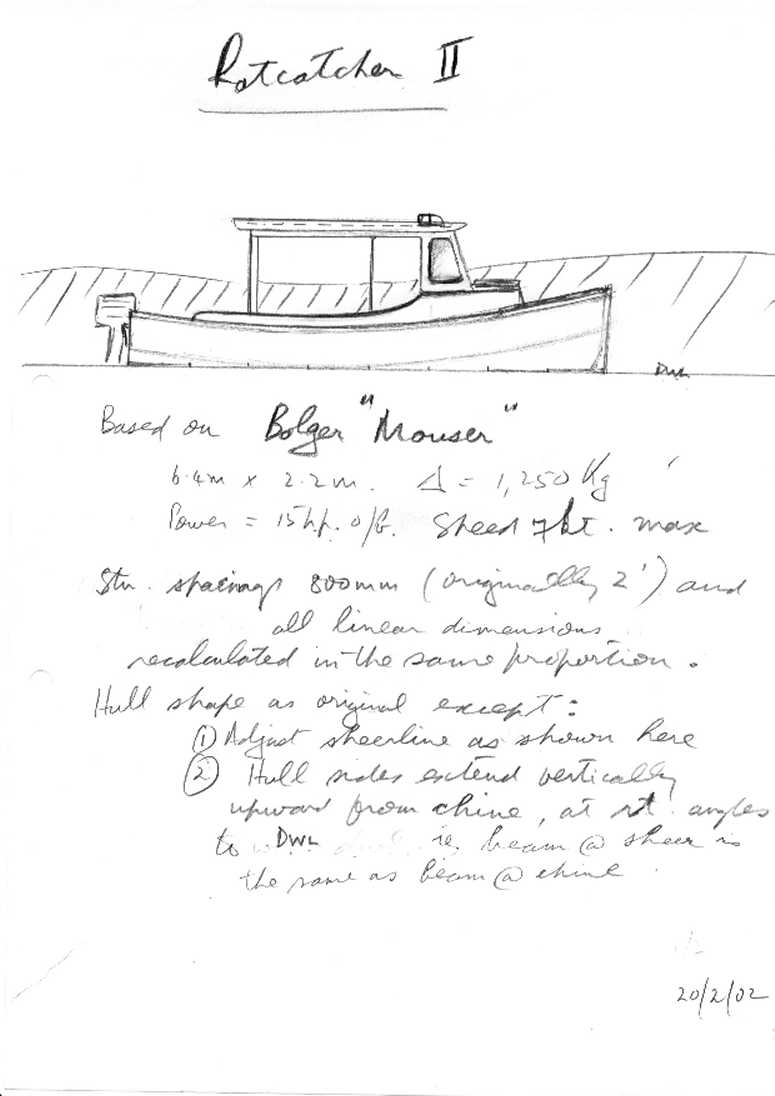

| Click here for a sketch of a launch derived from Phil. Bolger's "Mouser". |
|||||||||||||||||||||||||||||
| 4. Simple houseboat | |||||||||||||||||||||||||||||

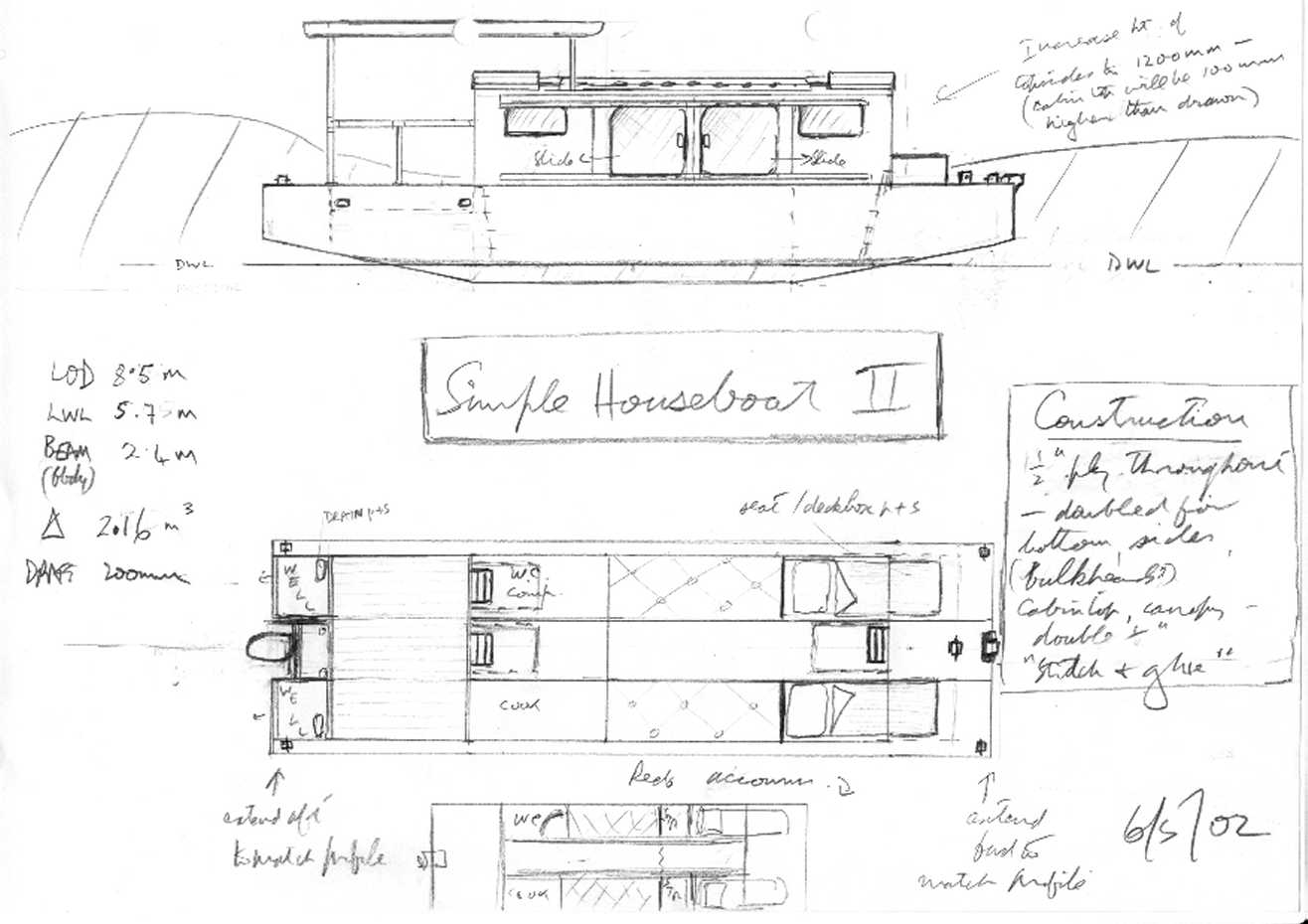

| Click here for an sketch | |||||||||||||||||||||||||||||
| 5. Outboard Launch | |||||||||||||||||||||||||||||

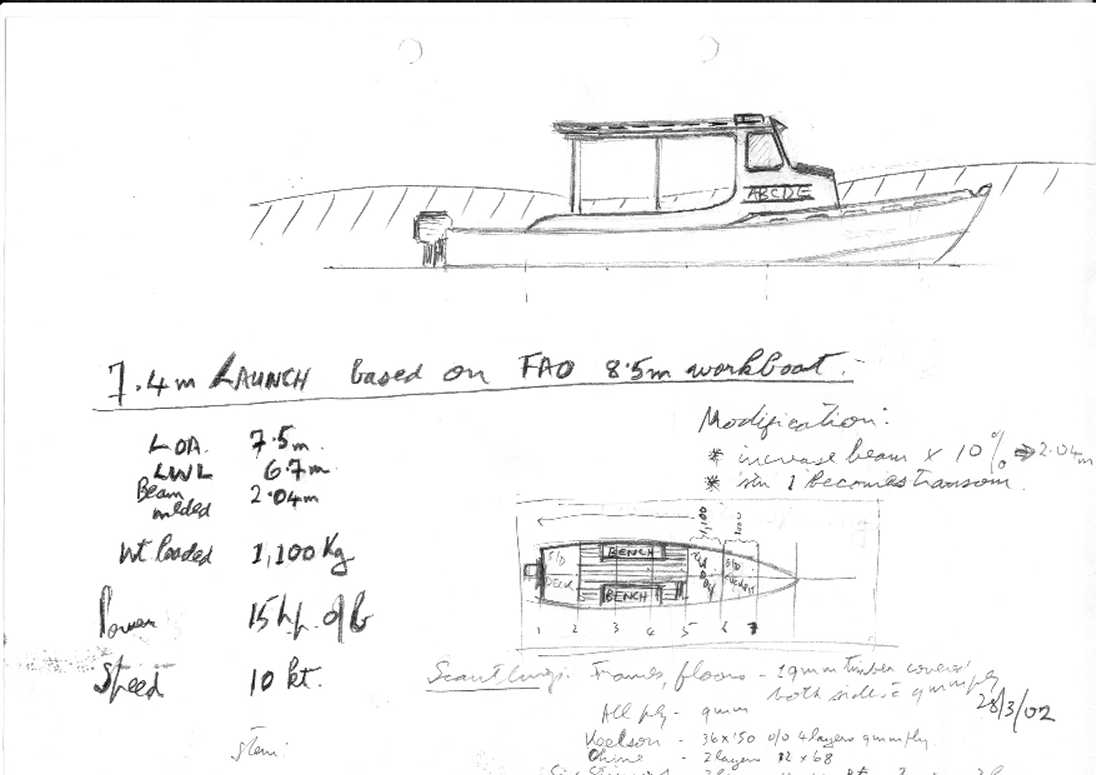

| Click here for an idea for a 7.4m launch derived from an FAO design. | |||||||||||||||||||||||||||||
