| Hoversite 2003 | |||||||||||||||||||||||||||||
| Page 6 | |||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||

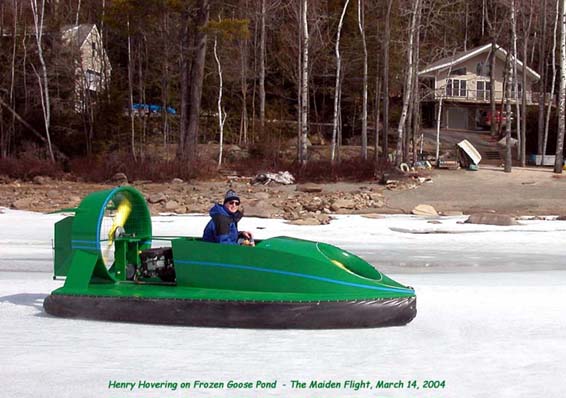

| This is the maiden flight of the Mean Green Machine. In the background is our camp "Goose Bump" and to the left you can see the garage where the hovercraft was built. By far the biggest challenge was getting the machine down the driveway, across the road, through the trees and rocks and out onto the ice. We quickly figured out that going downhill backwards was the only way to go -- but this was certainly NOT the ideal way for us first-timers to learn to fly one of these things! Fortunately we made it -- with only one small dent in the side. But once out on the ice, IT WAS A GAS!. Using a hand-held GPS, we clocked the sucker at 48.2 mph going across the frozen lake. And that was with a WOT engine speed of only 3150 RPM. I suspect the engine speed is being limited by the (overly complicated, built-in, lawn tractor) governor. Once we figure out how to adjust that darned thing, we may get even higher speeds. I've flown a bunch of planes, but never anything that would make a complete 360 in less than two seconds and then continue on its way straight ahead. This is definitely a FUN machine! It's pretty clear that we're not going to be flying back and forth from the garage too often. We definitely need a TRAILER. So that's become the current project -- see below. |
|||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||
| The only technical glitch we've had so far was the loss of a propeller drive belt. Probably, it wasn't tightened enough, in any case, the return side of the belt started vibrating and it got sucked into the prop -- which very effectively and cleanly chopped it off! Fortunately, no other damage occured. A new belt was purchased (for a mere $49.95 at NAPA) and we added another shim in front of the prop to allow more belt/prop separation. We also made a belt guide (from 1-1/4" PVC) for the slack side of the belt to prevent this from happening again -- in case the belt starts to stretch and loosen. (I gather this is pretty common). |
|||||||||||||||||||||||||||||

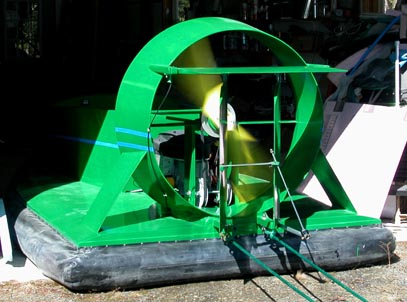

| Thrust test... With ropes tied to the car, we run up to WOT. This is when we broke a drive belt. Better here than in the middle of the lake! | |||||||||||||||||||||||||||||
![]() |
|||||||||||||||||||||||||||||
| The Trailer starts to take shape... | |||||||||||||||||||||||||||||
| Feel free to contact me if you have questions or would like more detailed photos -- I've got a bunch Also, feedback from other hovernaut buiilders and flyers is appreciated. |
|||||||||||||||||||||||||||||

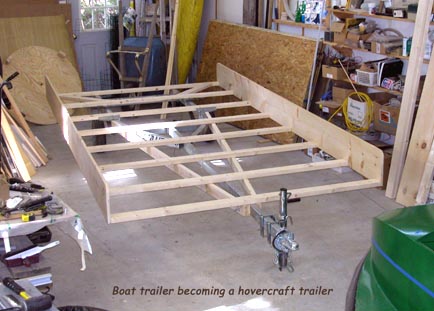

| Here, you can see the new TRAILER starting to take shape on top of an 800-Lb ($400) boat trailer. When finished, the plan is to have a ramp which can be attached to the front OR rear allowing us to fly on -- AND OFF -- the trailer. (There's no reverse on this thing!) | |||||||||||||||||||||||||||||
| Hey, it works! See next page... | |||||||||||||||||||||||||||||
