| My Rig........ |
| Upgrades in progress........ |
 |
| 86 Toyota 4X4, standard cab, short bed.... |
| Stock 22R motor with MSD 5 ignition SAS's (solid axle swap....) 35" boggers on white wagon wheels Chevy full size leaf springs in the rear, and factory Toyota rears in the front Lock Rite locker in the rear ARB in the front On board air compressor and 2.5 Gal. tank under bed Marlin "Crawler" gears in the T-case (4.7:1 ratio) Extended breather lines for axles Bobbed bed (11 inches) Swing out tire carrier Custom fabbed bumpers and sliders Night time "rock lights" (undercarriage lights) |
| Back in the day before the solid axle swap and the bed bob.........nothin' but 33's and a 3" body lift. |

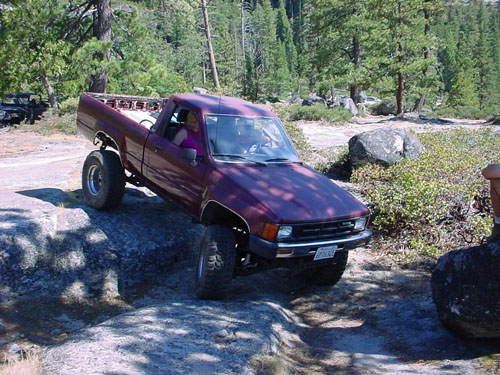

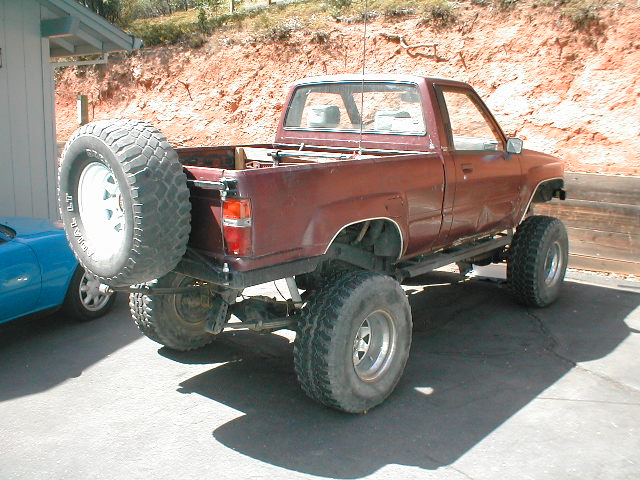

| As it sits today......locked, SAS'd, bobbed, tire carrier, custom bumpers, rock sliders, blah, blah, blah..... |
 |
| EXO cage around the cab Bobby Long birfields, and alloy shafts in the front Traction bar for the rear axle (or maybe 4 link and coilovers......Hmmmmmmmm. Modify tranny crossmember (hack out 1.5 inches and add some 1/4" plate to the bottom) |
| Misc. pics of the Modifications...click on pics to enlarge. |
 |
 |
 |

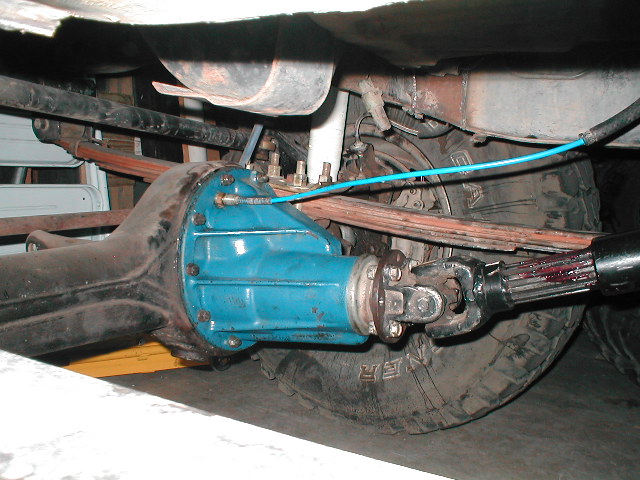

| ARB installed |

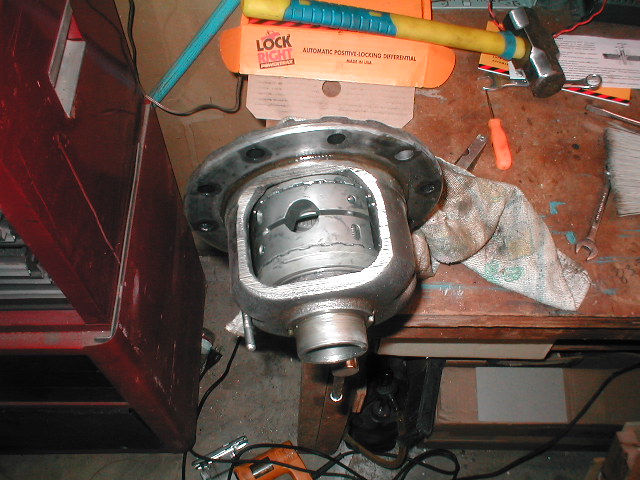

| Lock rite installed |

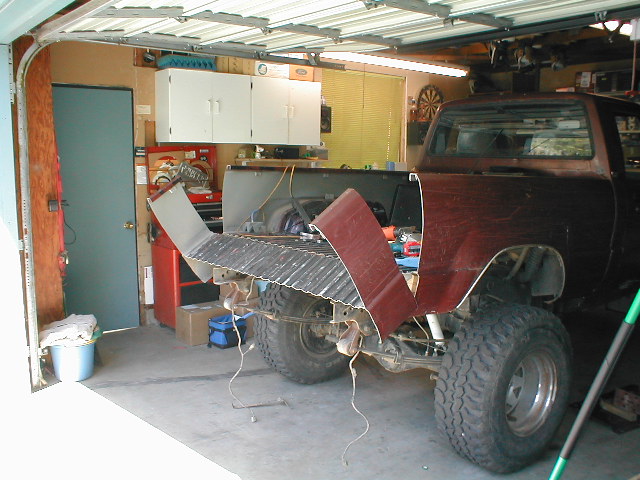

| Bobbing the bed....... |
 |

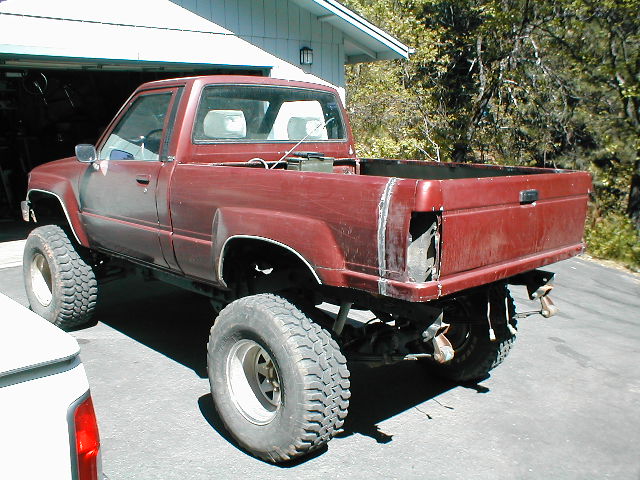

| Welded and ready for bodywork..... |
 |

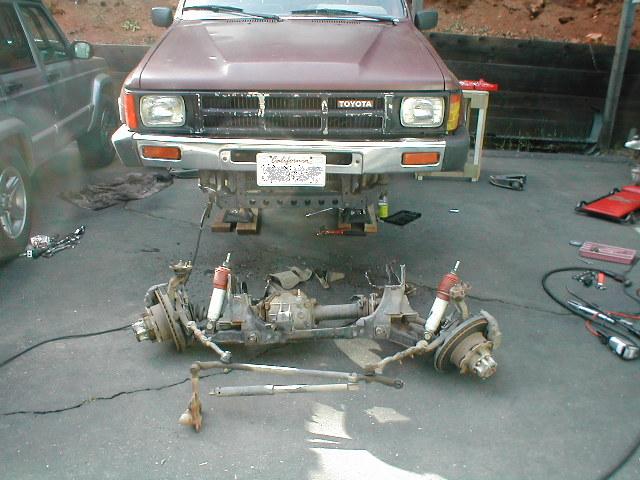

| During the solid axle swap...why I love plasma cutters. |
 |

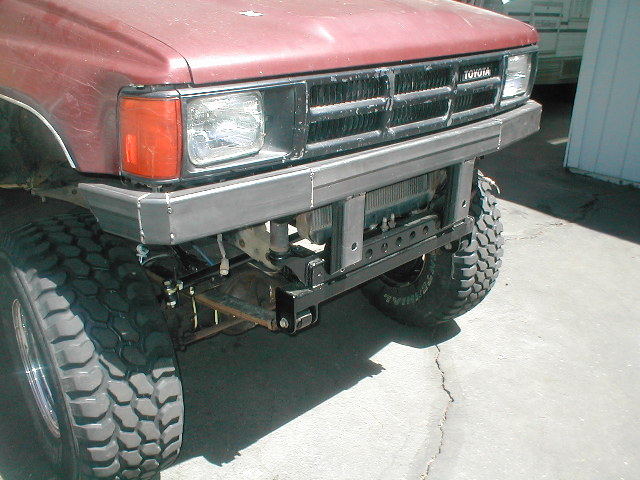

| Fabbing up the front bumper..... |
