Home Theater Build Page 1 Pics |
|
|
|

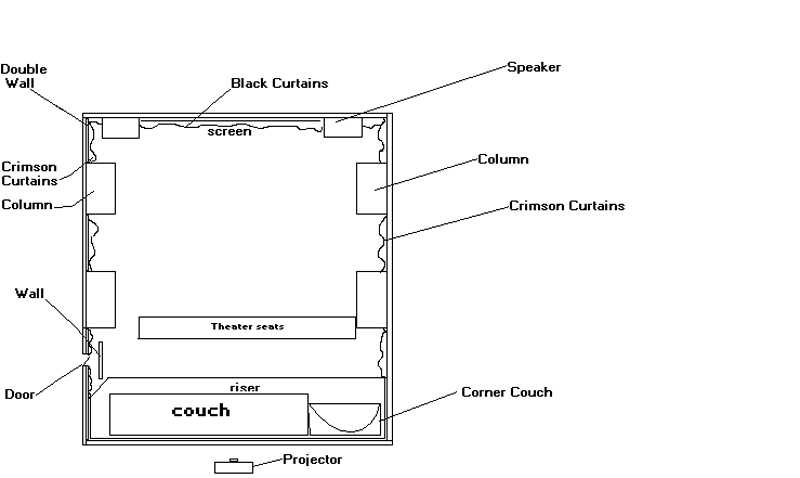

Original Sketch for Theater -
|
|
|
 |
|
|
|
These are the only photos I can currently find of the useable but unfinished theater before I started my re-build..... |
|
|
|

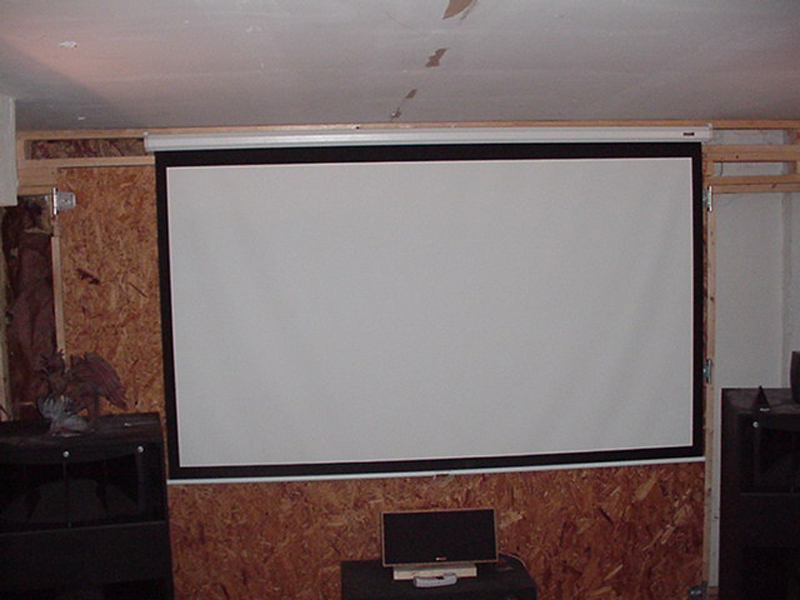

aprox. 110" 16:9 Da-lite manual pull down screen, behind that is hinged doors that open at the center and behind that is hinged garage door deal (see intro...) |
|
|
 |
|
|
|
Also in view - Klipsh center speaker and Altec Voice of the Theater Speakers. Sitting under center speaker is a car sub woofer that I was going to modify and use, but haven't really done much with, it's just a cool looking stand for my center speaker with a plexi front and viewable sub speakers in side. I actually built a similar set-up at one time and powered it with one of the Altec mono block amps and nearly blew the box apart... I gave up at the time, but am planning on building large custom subs into some kind of front stage and center speaker mount dealy. Also on top of the left VOT speaker is a collectible statue of Draco the dragon from the Dragonheart movie. The little triangle on the right speaker is an IR repeater which sends my remote control commands to my equipment rack in the other room.. |
|
|
|
 |
|
