D-TYPE connector

Male and Female conn.

Full Plastic, Front Metal Shell, Full Metal conn.

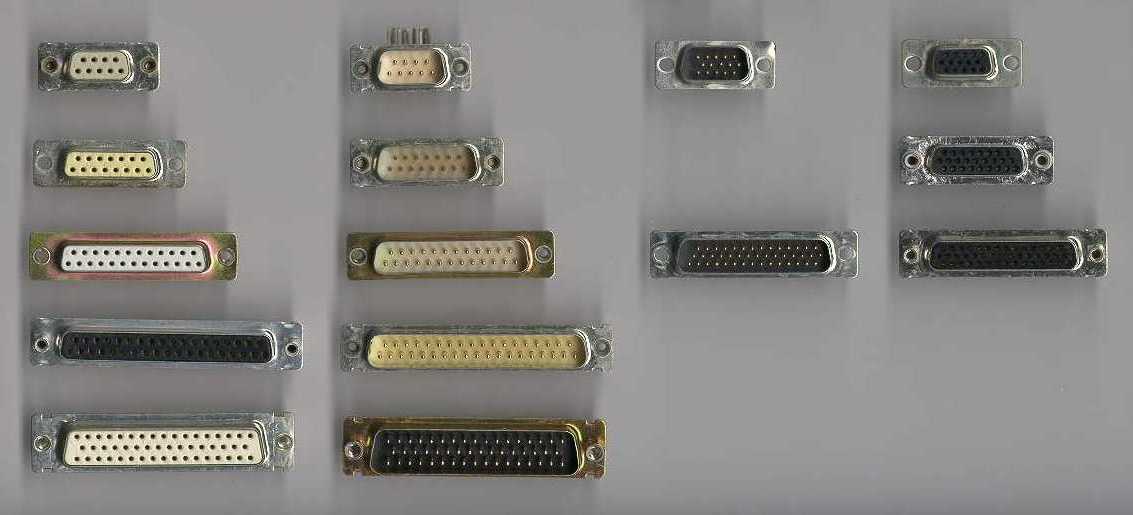

Number of Contact Position / Pos. / Ways / Pins Contacts
Normal Density 2 rows		High Density 3 rows

9	same shell	15 or VGA
15	same shell	26
25	same shell	44
37	same shell	62
50 (3 Rows)	same shell	??
Contact Direction
Angled contact Direction Right Angle RA PCB RA RT Side Entry Horizontal		Strait contact Direction Vertical STR STR PCB

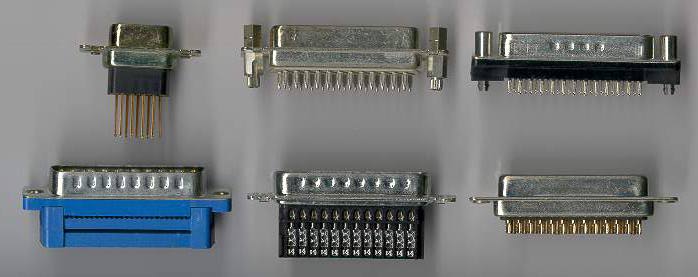

Connector Mounting Tecnology

PCB	Cable or Panel
Solder Solder Pin Throu-the-Hole	Solder Solder Cup
SMT or SMD Surface Mount Technology	Crimp Single Wire Crimp Contacts than assambled with conn. body
Press PressFitt	IDC Insulation Displaced Contacts
	Wire Wrap Contacts for Panel mounting

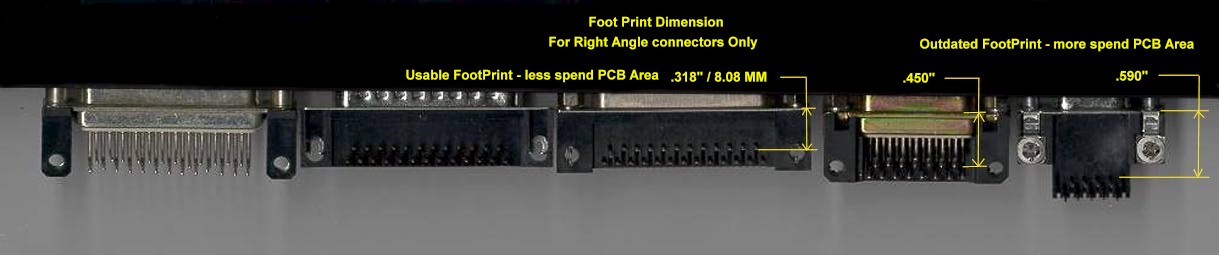

Footprint Dimension from a Connector Face Plane to First Solder Tails Row

.318" or 8.08 MM - European Standard - Prefered - Minimal PCB Space spended. .450" or 11.43 MM .540" or 13.72 MM .590" or 14.99 MM - American Outdated Standard - Non Recommended - Maximal PCB Space spended.

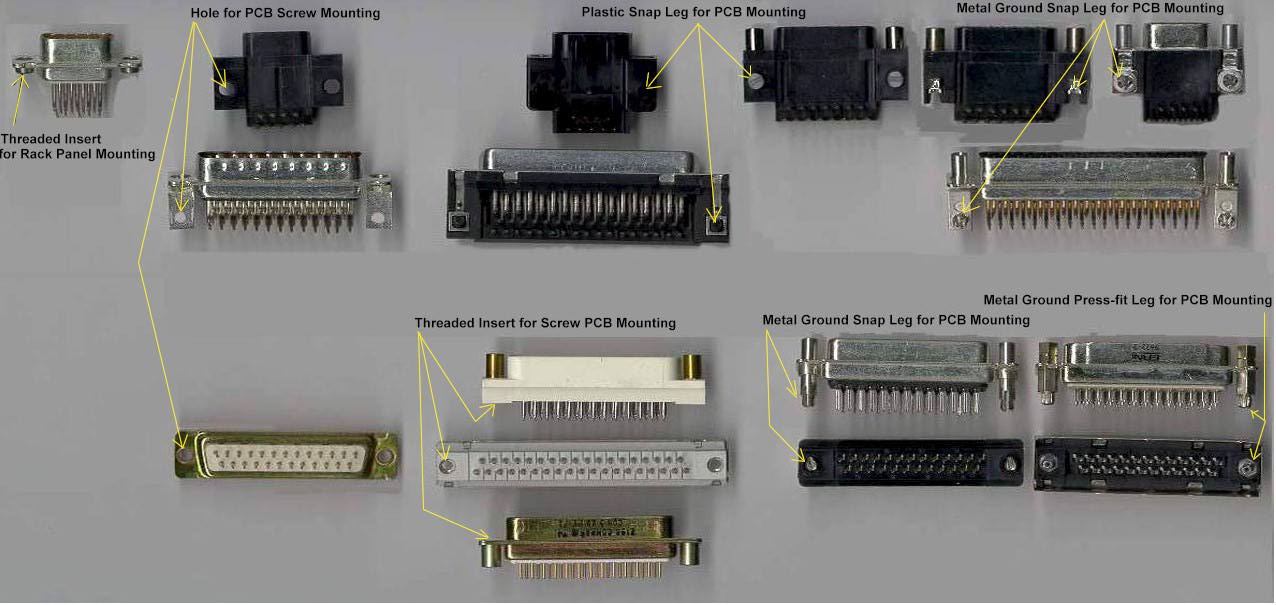

Board Lock or PCB Lock: Metal or Plastic Snap Latch; .120"-.125"/ 3.05 MM Screw Mounting Hole

Fitting Standoff or 4-40"UNC/ M3 Threaded Female Standoff or Jackscrew; .120"/ 3.05 MM Fitting Hole

D-type to Data (RJ45/RJ11) Adapter
