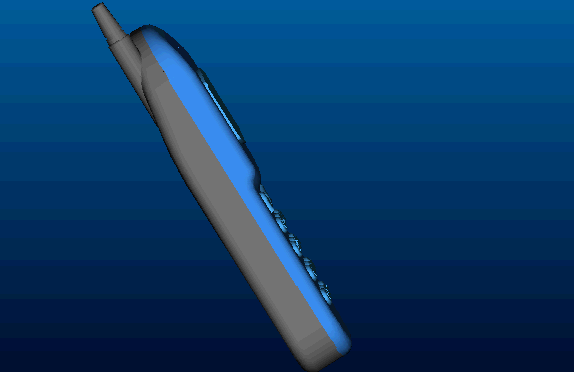

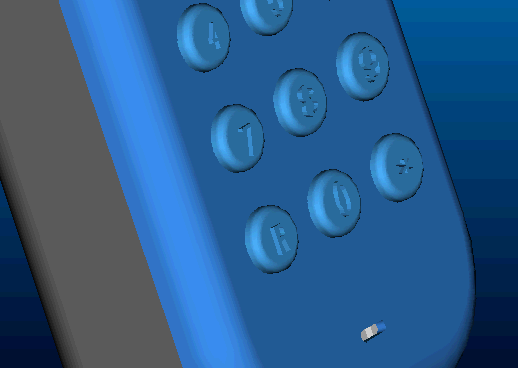

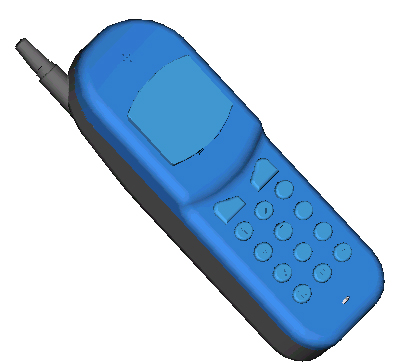

This is our first mobile phone. I down loaded the "Getting
started with Pro/E 2000i" PDF file. It was more than 200 pages
explains more about Pro/E. This model is emerged from that document. My
Guru and my self read the complete document and started building this
model. Its taken 4 days (3 hrs every day). first day we first sketched
the drawing. Second day to forth day, we both designed the model. Final
Day we assembled the mobile phone. we were very very happy on successful
completion of the project. totally 12 hrs time was needed to build this
model. But regeneration of the model taken lots of time. The Mobile
phone consists of following parts: A. Arial, B. Lens, C. Mouth Piece, D.
Speaker housing, E. PC Board, F. Top Cover, G. Bottom cover. I have
learnt lot of from this model and made me to think more about modeling
of mobile phones. |
