Thermo-6 (thermostat with rs232 connection)
 Figure 1 Thermo-6
 Figure 2 Thermo-6 in operation
About the device in general
Therno-6 is a high efficient thermostat with 220V/10A output. It can be used for control and monitoring temperatures from -40 C to + 60șC.
The primary target of this device is the freezing process. The control box is designed to have maximum sensitivity (0,1șC) in low temperatures and at the same time the output (relay) is designed to have normal open contacts when the temperature is lower then the preset threshold.
This device has one rs 232 serial connection plug which is used as an output. Other outputs are on the main lid. The device has one green diode, showing the status of the relay and two small (3mm) diodes showing positive or negative temperature as well as two seven segment LEDs, showing the actual temperature. The two buttons on the main lid allow controlling different programs of the thermostat.
Potential users
This device is primary developed to control freezing processes in cooling systems, freezers, thermodynamic processes in industry, experiments with cooling equipment, and all processes where slow control of the thermodynamics is needed. Despite the speed of the processor (1Mz), this device is not suitable for processes where very fast reaction (less then seconds) of the system is needed. The reason for this limitation is the specially designed subroutine, which does not allow quick response of the relay. This way the connected equipment (motor) is protected from overcharging.
In addition, heating processes can be controlled by using normal closed contact of the relay.
Widnows application

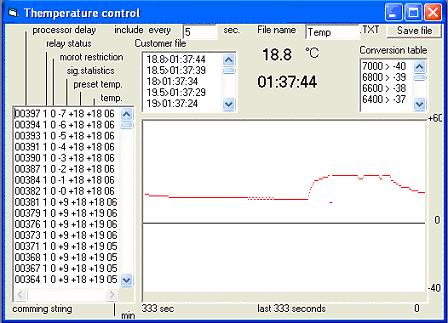

Figure 3 Working with Thermo-6 Windows application.
Thermo-6 windows application is especially designed to accelerate the sensitivity of
the thermo-6 detector and at the same time to provide better communication using the same protocols from thermo-6.
The main functionalities of this system are:
- showing the incoming string from thermo-6
- storing temperature in preset intervals (different then thermo-6)
- saving the accumulated data in file
- using advanced temperature representation (0.1șC)
- using new, editable conversion table
- representing temperature as graph
For more information please download the user guide for this device.
In addition you can see the size of the detector and the device packed.
 |
 |
| Figure 4 Detector |
Figure 5 Final Package |
|
|
