An e-Commerce Project Sample

Team5.com

Table of Content:

1) Business Class Design
2) User Interface Design

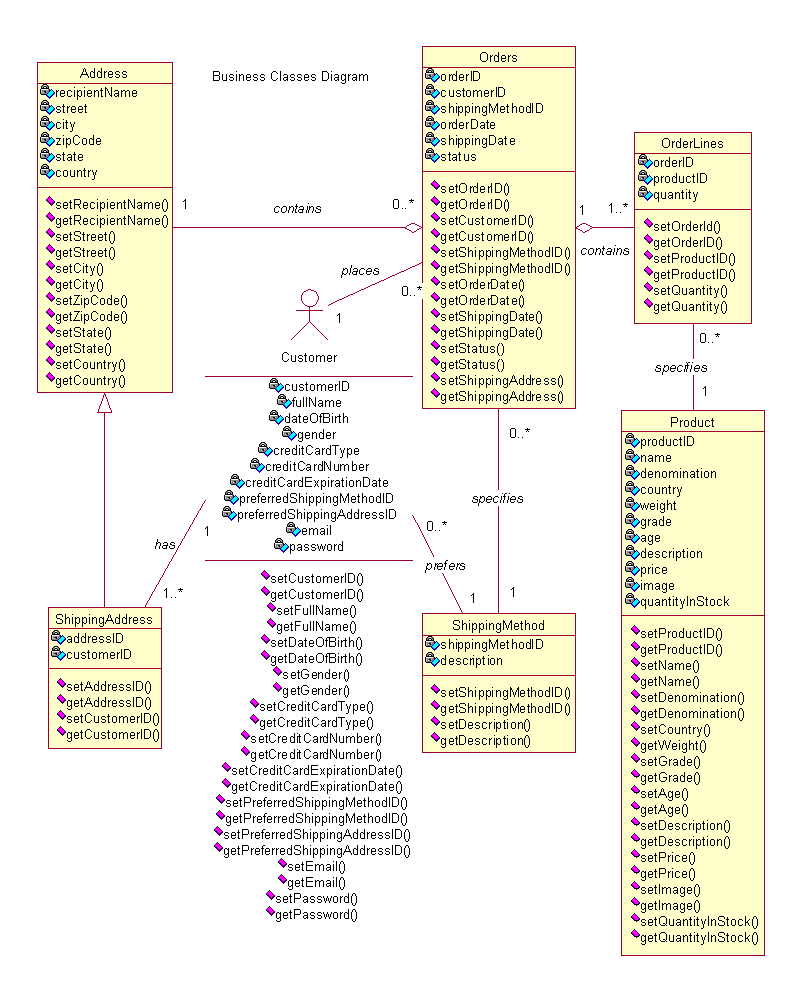

Business Class Design

Functional User Interface Design

The project was broken into two major components: Administration and Web Application. The Administration component makes use of GUI/Swing Java for front end, and the Web Application makes use of HTML and JSP for front end.

Administration Component Main Screens:

Order Consult Form

Display/Select Orders

View Order Details

Product Maintenance Form

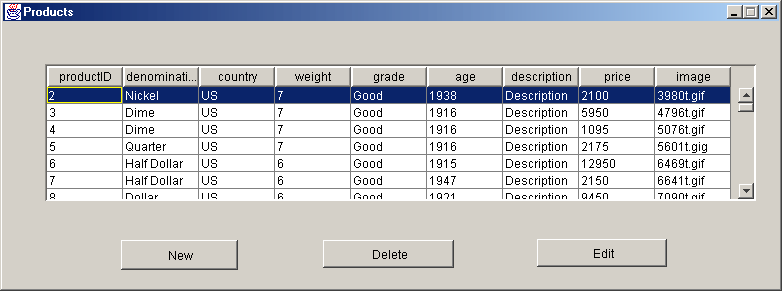

Display/Select Products

Edit Products

Shipping Method Maintenance Forms

Display/Select Shipping Methods

Edit Shipping Methods

Web Application Component Main Screens:

Web Site Main Page

About Team5.com Page

Browse Product Page

Customer Login Page

New Customer Registration Process

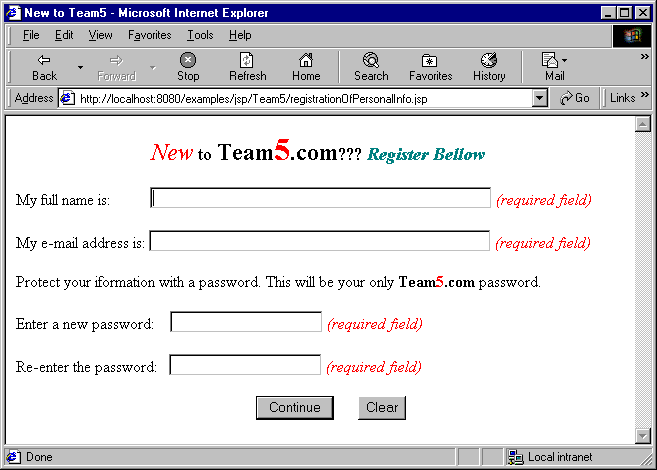

Registration of name, email, password and password confirmation

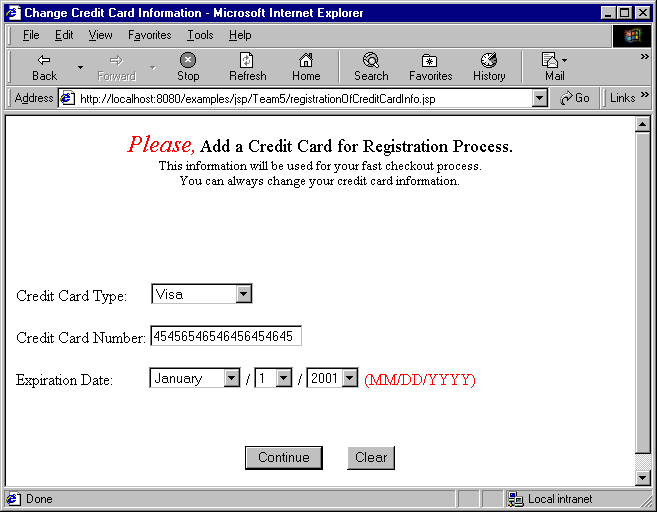

Registration of credit card information

Registration of preferred shipping method

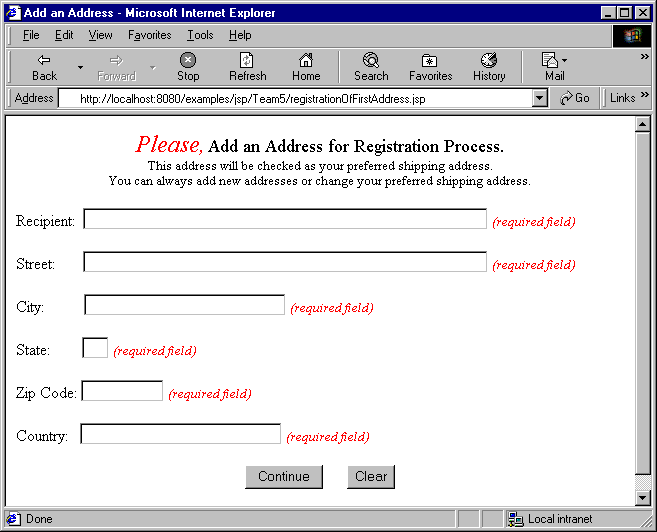

Registration of first shipping address

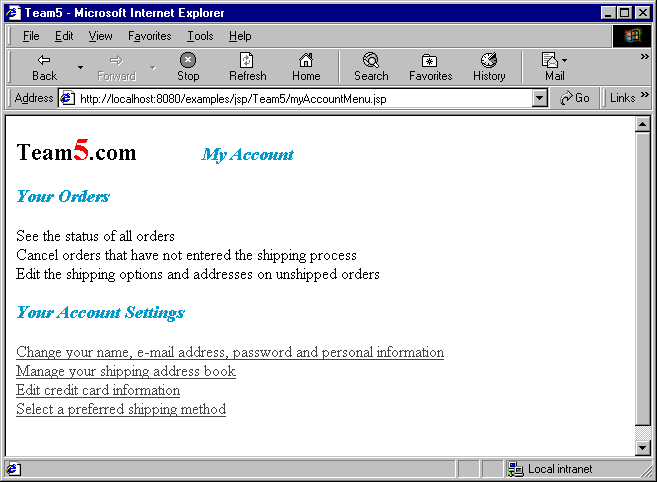

Customer Account Menu Page

Consult all orders

Edit unshipped orders

Change name, email, password and password confirmation

Change credit card information

Change preferred shipping method

Manage shipping address book

View/Edit Cart Content Page

Considerations for the Web Application GUI Design

The Site has been designed so that any customer can browse through, search for coins and get a main idea of what TEAM5.com has to offer with no need to login or be a TEAM5 member. The Login Process is only needed when the customer starts the checkout process. For these previous considerations, and in order to make TEAM5.com an easy and complete site to browse through, the whole site is provided with a top header. This header is constantly available and offers the browser/customer a set of pages, which may vary depending on whether the user has logged in or not.

If the user is not logged in:

Home | Sign in | Search | About Team5

If the user is logged in:

Home | Sign Out | Search | My Account | About Team5

Overview of the links:

Home: will take the user back to the TEAM5 Main Home Page. This Page will provide the user with a drop down list of all countries for which we do have available coins.

Sign In: login page to authenticate TEAM5 member. Email and Password are required.

Search: Enable the user to search for a specific coin according to some predefined criteria such as Country, Age, or denomination. (Feature in Process, may be dropped because of time constraints - will therefore not give further details in this document concerning the search capability in the site)

About Team5: A Brief overview about Team5.com, its business description and main activity.

Sign Out: logout the user from the system - Browser will need to login again to be able to place an order or change any of his/her personal information or preferences.

My Account: Personal member area to manage TEAM5 customer account. A Member may add, edit or delete his or her shipping addresses. He or she may as well mark a specific address as the preferred shipping address, which will be used by TEAM5.com mainly to process Fast Path tracks. A member can also specify a preferred shipping method. He or she can also edit his or her personal information from basic information (name, phone number and so on…) to credit card information.

For security purposes, and also to decrease the number of user information exchanged during the check out process, Team5.com has decided to have their customer register first, providing all the necessary information for the shipping process, such as address, credit card and others. This information will partly be used to process an order and therefore minimize the time for a check out and more important, it will provide secure Access to TEAM5 valuable customers data.
