Vanagon Intermittent Syndrome
Click on photos to enlarge

This 15 volt 22 microfarrad  tantalum capacitor  (slightly embellished) could "fix" your vanagon's intermittent syndrome.

What is the intermittent syndrome?
Apparently it’s caused by erratic electronic signals sent from the
air-flow-meter ( AFM ) to the electronic control unit ( ECU ),
causing the ecu to shut down or go into default.
It goes like this: You are on a longer trip, the wasserboxer has
been humming along for several hours and runs really good.
Then all of a sudden, out-of-the-blue, the engine cuts out.
The vanagon lurches, looses power, and starts bucking.
You pull over and shut it off. A little later, you restart the motor,
and it runs just fine. Sometimes this might not happen again
for a long time, or if you are not so lucky, the vanagon might start
this syndrome all over again after only a few minutes of driving.
Sometimes the cutting out is very slight, barely noticeable.
My ‘90 westy did this on our last trip in Death Valley, and once
before on a previous trip.
There can be many possible causes for temperamental vanagon behavior:
corroded grounds, defective wiring harness, worn air flow meter,
vacuum leak, bad spark plug wires, loose contact by the fuel pump,
bad fuel pump relay, defective ECU. (I’m sure I forgot a few.)
When you checked or replaced all those gizmos, and the vanagon
continues to exhibit the intermittent syndrome, you can try the following.
The Volkswagen dealer sells a short wire harness, especially
designed to cure this intermittent vanagon behavior.
The harness is installed between the AFM and the existing cable.
The price for the VW dealer harness is around $166.
The less costly, but as effective solution, is to solder a tantalum capacitor
between terminals 2 and 4 in the cable connecting the airflow meter.
Some vanagon owners installed the capacitor under the rubber boot that
protects the plug on the AFM.
I decided for different reasons to install the capacitor inside the
air-flow-meter on my ‘90 vanagon.
The "syndrome" has not reappeared since this fix.
I used a 15 volt 22 microfarrad tantalum capacitor.
Part Nr. 15 TA 22 cap price $2.80
You can also use a 25 volt 22 microfarrad capacitor, if available.
These are commonly available at electronic supply stores.
Don’t use a less expensive electrolytic capacitor.
Apparently the capacitor helps to even out the signal, to prevent the
ECU from going into “default mode”. Sounds simple enough.

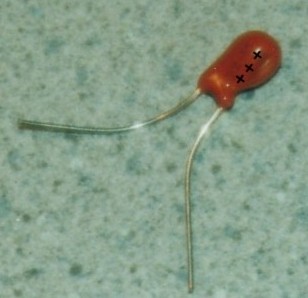

Picture 1 below 15 TA 22 tantalum capacitor $2.80 the size of a large match. The cap. has a marking on it, showing the + connection. The plus connection  of the cap is soldered to terminal 2, and the minus connection to terminal 4. The terminal numbers are stamped on the connector by the air-flow-meter.

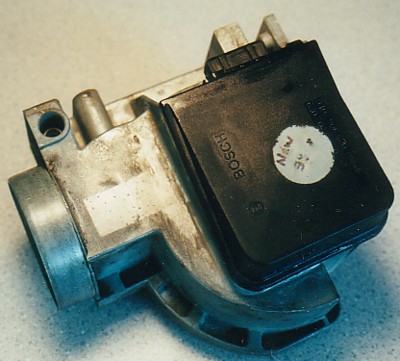

Picture 2 below The air-flow-meter removed from the air filter housing. This one is 1 year old, with 20,000 miles on it.

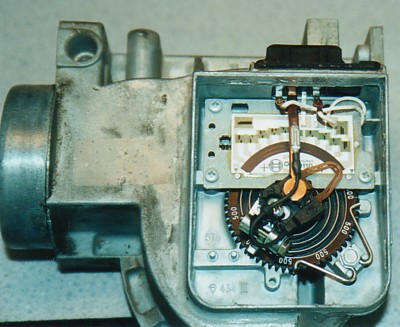

Picture 3 below Plastic cover removed from top of air-flow-meter. To remove the plastic cover, cut the silicone sealant around the edge, and gently pry the plastic cover loose.

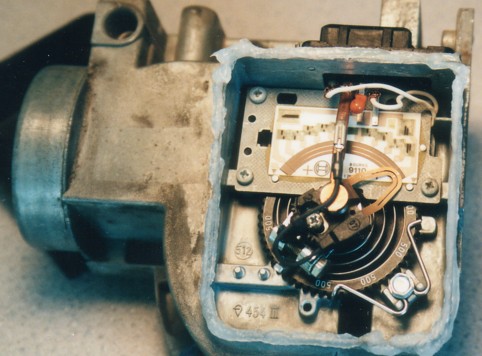

Picture 4 below The two ground wires removed and the capacitor soldered to the leads going to connectors  2 and 4 on the wiring harness. The plus of the capacitor is soldered to 2, and the minus side of the capacitor is soldered to 4. Make sure to mark the position of the two wires before removing, so they don’t get mixed up.

Picture 5 below The two wires reconnected, and silicone sealant applied to the edge of the AFM before  reinstalling the plastic cover. Before you reseal the AFM, make sure it’s clean inside. I used a small vinyl hose connected to a  vacuum cleaner to vacuum out all debris and dust before resealing the AFM.
