Sams 67' Shortwide |
|
|
Rundown |
|
|
|
 |
|
|
|
|

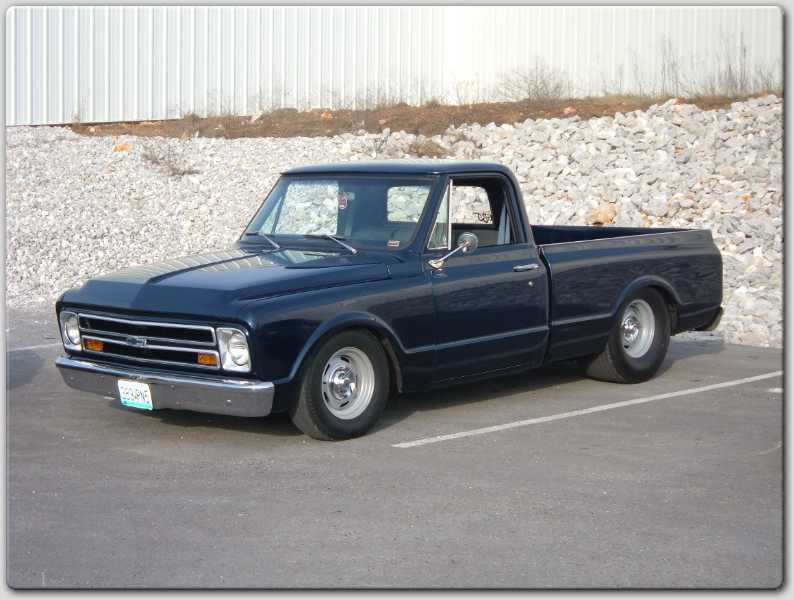

* 1967 Chevrolet C-10 Shortwide * 350 ci Chevrolet Smallblock * Automatic * Small Back Window
|
|
|
|
|
|
Wheel/Tire |
|
|
|
|
|
* GM Rally Wheels * 15x7 w/ 235 70 15x10 w/ 32''x 16'' Protracs |
|
|
|
|
|
Suspention |
|
|
|
* Lowered 6'' front 9'' rear *McGaughys spindles Lowered using spindles, springs, and blocks |
|
|
|
|
|
 |
|
|
Body Modifications |
|
|
|
*Shaved Moldings *Shaved Heater Box *Shaved Emblems *Smooth Tailgate *Tubbed Wheelwells
|
|
|
|
|
 |
|

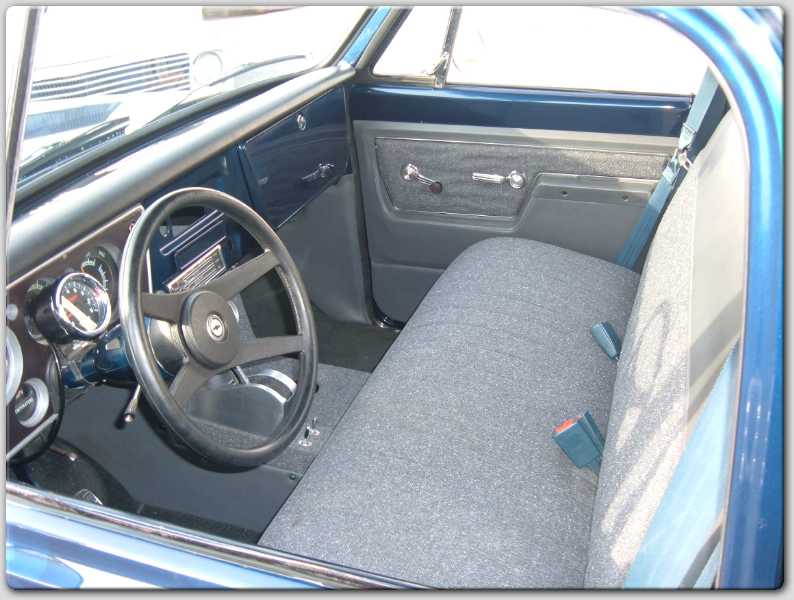

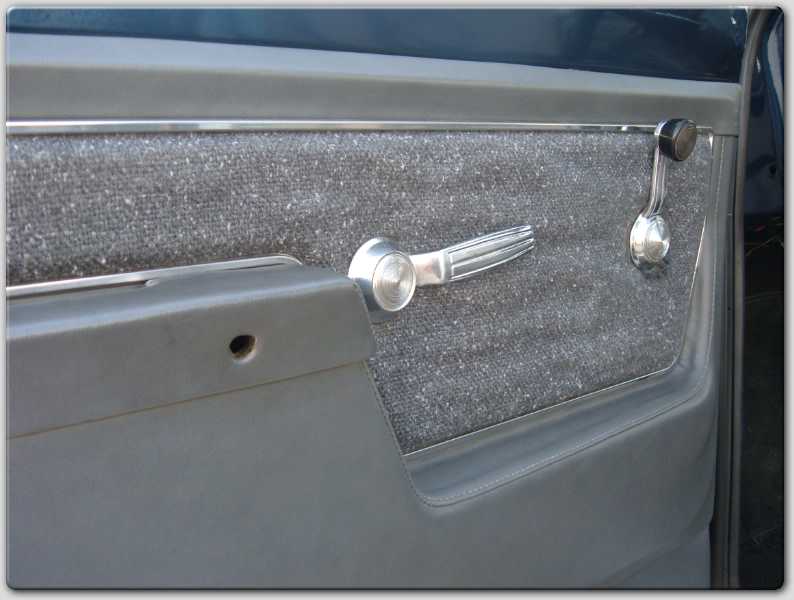

Interior *Grey Tweed and Vynil *Custom Center Console w/Handmade Aluminum Shifter Cover *Sunpro Super Tach II *Ghostflames in Door Panels
|
|
|
|
|
|
|
Engine |
|
|

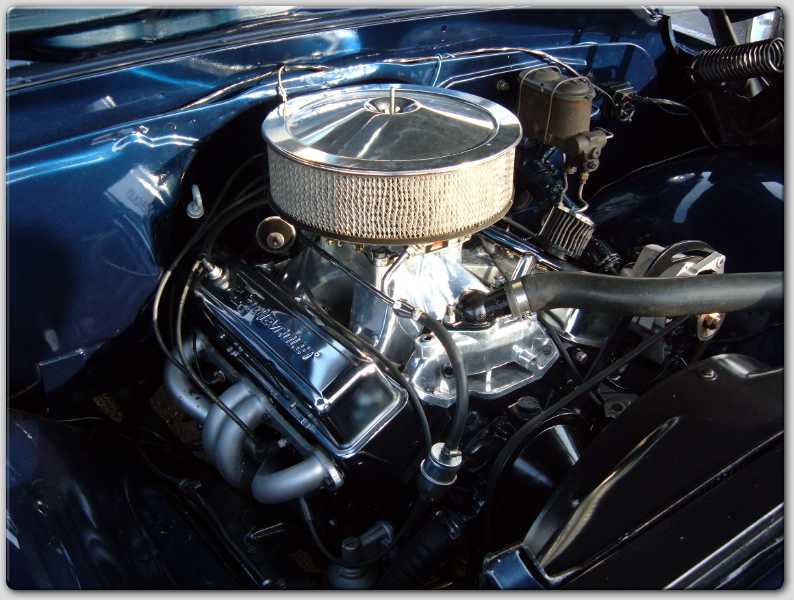

* 350 ci Chevy Smallblock * GM Pink Rods w/ ARP Bolts * TRW Forged Pistons * 12:1 Compression * SFI Flexplate and Harmonic Balancer * True Roller Double Row Timing Chain * Ported Double Hump Heads * Screw In Studs And Guideplates *Solid Cam .532 .555 Lift .250 .260 Duration *Professional Products Polished Single Plane Intake * 750 Holley Carb *Holley Fuel Pump * MSD Ignition * Hooker Super Comp Headers * All Comp Cam Valvetrain * Balanced Assembly *Custom Curved Distributor By Sam Jackson *Alternator mounted in power steering pump location Assembled By Sam And Father Bill |
|
 |
|
|
|
|
Transmission |
|
|
* 700 R4 * Non Lockup * B&M Pro Stick Shifter * B&M Holeshot 3000 Stall Converter |
|
|
|
Rearend |
|
|
|
* GM 12 Bolt * Narrowed 3'' *Eaton Posi * Moser Axles * Mark Williams 4:56 Gears |
|
|
|
|
|
*Sams Truck Is Currently In the Shop For A 454 BBC* |
|
|
|
|
|
