360 Modena
1999 -

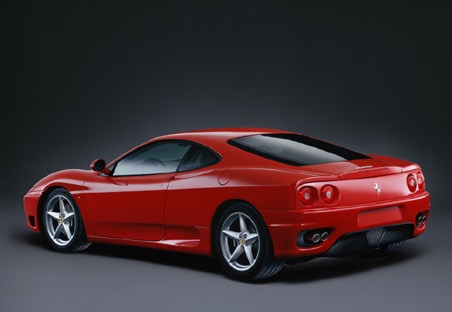

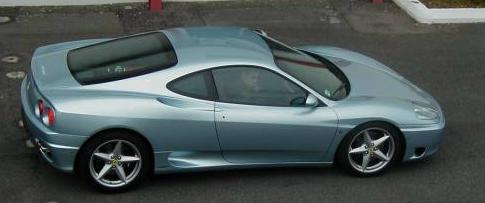

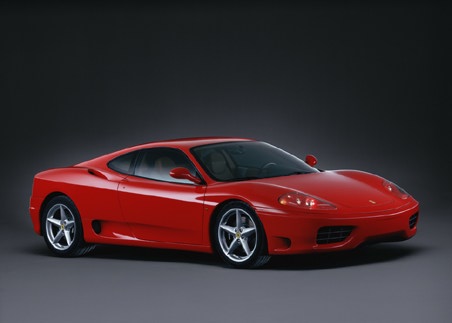

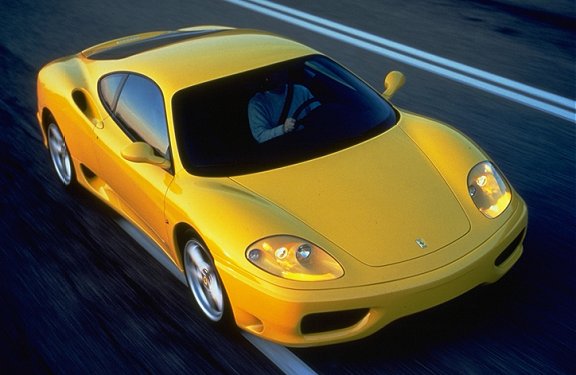

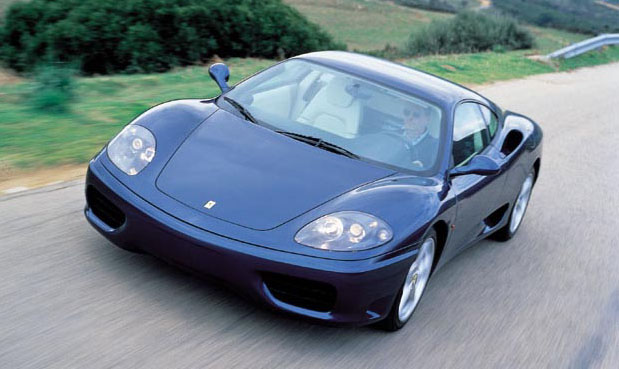

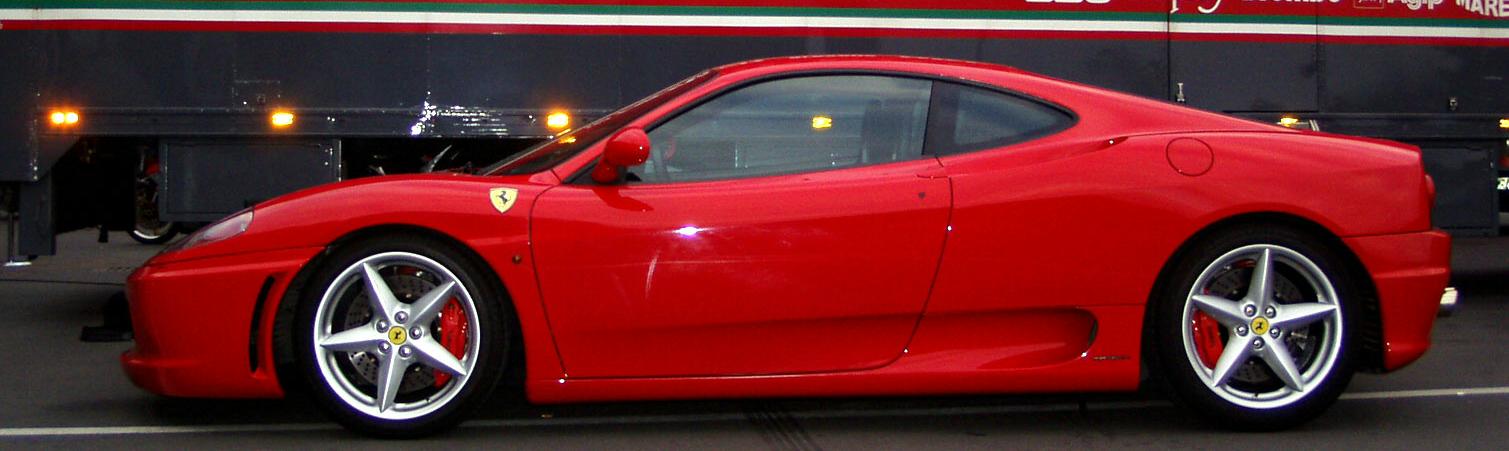

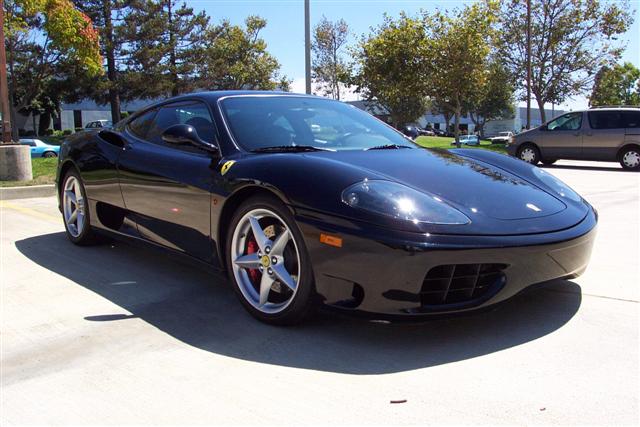

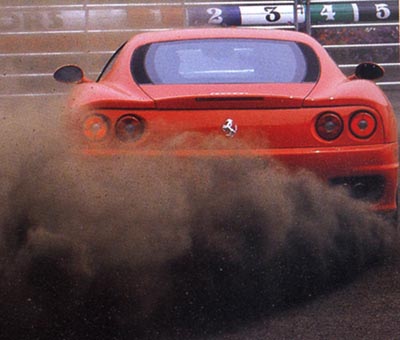

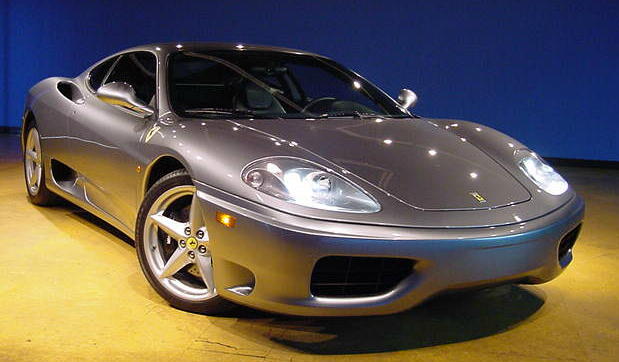

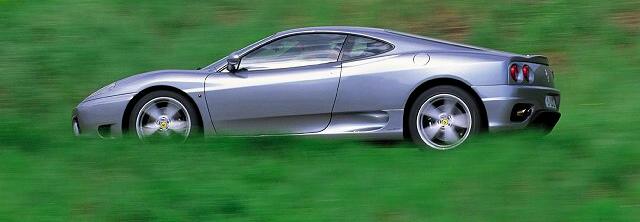

The 360 Modena
was the 163rd Ferrari to be designed by Pininfarina and combines a succesful mix
of innovative design elements and styling solutions inspired by classic Ferraris,
such as the 268 SP, the 250 LM and Dino. The car's finely balanced proportions
cleverly hide at first glance the fact that it is mid- engined, as the passenger
compartment is set almost centrally between the two axles, while the distinctive

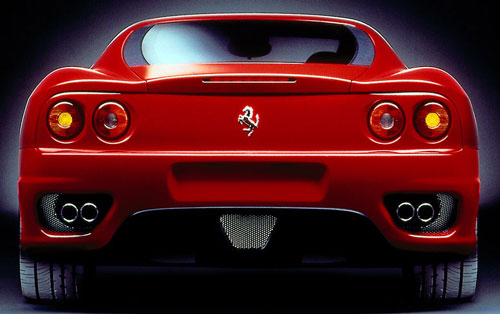

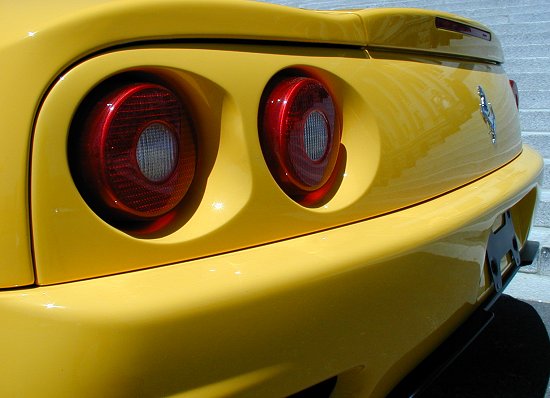

rear end treatment leaves the engine in full view beneath the rear screen.
- Position:
- Mid-Longitudinal
-

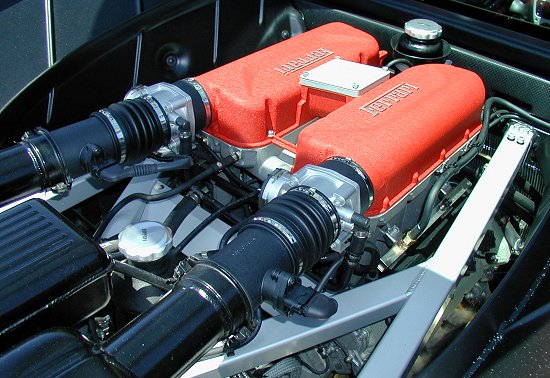

- Number of cylinders and arrangement:
- 90o V8
-
- Bore:
- 85.0 mm / 3.35 in
-
- Stroke:
- 79.0 mm / 3.11 in
-
- Displacement:
- 3586 cc / 218.8 cu in
-
- Valvetrain:
- DOHC, 5 Valves per cylinder
|
 |
 |
- Maximum Power:
- 294.6 kw / 395 bhp at 8500 rpm
-
- Maximum Torque:
- 372.8 nm / 275.0 ft lbs at 4750 rpm
-
- Redline:
- 8500 rpm
-
- HP / Liter:
- 110.15 bhp per litre
-
- HP / Curb Weight:
- 284.17 bhp per weight
|
- Gear Type:
- 6-Speed Manual
-
- 1st Gear Ratio:
- 3.29 : 1
-
- 2nd Gear Ratio:
- 2.16 : 1
-
- 3rd Gear Ratio:
- 1.61 : 1
-
- 4th Gear Ratio:
- 1.27 : 1
-
- 5th Gear Ratio:
- 1.03 : 1
-
- 6th Gear Ratio:
- 0.85 : 1
|
 |
 |
- Final Drive Ratio:
- 4.44 : 1
-
- Drive Wheels:
- Mid Engine / RWD
-
- Weight:
- 1290 kg / 2844 lbs
-
- Curb Weight:
- 1390 kg / 3064 lbs
|
- Length:
- 4478 mm / 176.3 in
-
- Width:
- 1923 mm / 75.7 in
-
- Height:
- 1214 mm / 47.8 in
|
 |
 |
- Wheelbase:
- 2600 mm / 102.4 in
-
- Front Track:
- 1669 mm / 65.7 in
-
- Rear Track:
- 1618 mm / 63.7 in
-
- Steering:
- Rack & Pinion w / Power Assist
-
- Body / Frame:
- Aluminium Body over Cast Aluminium Frame
-
- Front Brakes:
- Vented Discs w/ Vacuum Assist & ABS
-
- Front Brake Size:
- 330 mm / 13.0 in
|
- Rear Brakes:
- Vented Discs w/ Vacuum Assist & ABS
-
- Rear Brake Size:
- 330 mm / 13.0 in
-
- Front Wheels:
- F 45.7 x 19.0 cm / 18.0 x 7.5 in
-
- Rear Wheels:
- R 45.7 x 24.1 cm / 18.0 x 9.5 in
-
- Front Tires:
- 215 / 45ZR - 18 Pirelli P Zero
-
- Rear Tires:
- 275 / 40ZR - 18 Pirelli P Zero
|
 |
 |
- Front Suspension:
- Upper & Lower A-Arms w/Coil Springs,
Adjustable Tube Schocks, Anti-Roll Bar
-
- Rear Suspension:
- Upper & Lower A-Arms w/Coil Springs,
Adjustable Tube Schocks, Anti-Roll Bar
|
- Top Speed:
- 304.2 kph / 189.0 mph
-
- 0 - 1/4 mile:
- 13.0 seconds
-
- 0 - 60 mph:
- 4.3 seconds
-
- 0 - 100 mph:
- 10.3 seconds
|
 |
