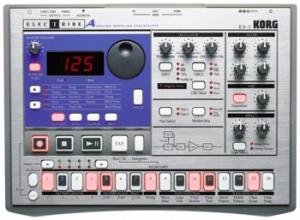

The Electribe EA-1 can help you to create your next big groove in a simple and creative way. It has one of the ultimate in analog synth modeling around. It allow you to have unlimited control of your mix in realtime, every sound parameter can be tweaked to the point where you don't even know what the original sound was. With the EA1 you get analog modeling synth in a small compact and portable box. You can create your own analog synth sounds and then tweak these sounds in real-time.

The two analog modeling tone generators are the same ones used in the Korg Prophecyand Z1 synthesizers. Which have a warm fat rich tone that can be distorted beyond belief.

You start by building your sounds using the EA1 waveform and filter knobs. Then you start turning the effects knobs. Then you start the two-part phrase creation using the built-in sequencer. Again you can change parameters in real-time from the filter to the waveform and effect type. Next start modifying the type of effect; the resonant filter or ring modulator and even the decimator sound awesome. Did I mention that you can record your real-time movements. Here is the famous "Motion Sequence" function button. You can store upto 256 phrases where each phrase can be used to create your own songs or patterns that are loops. You then can modify the sounds of each sound.

The Electribe EA-1 can be sync'd to other Electribes uisng MIDI clock, tap tempo or just tap in a beat to match whatever is on your turntable. The EA1 is so versitle you can even control it using an external sequencer or DAW for home or studio.


Korg Electribe EA1 Specifications
  • Type: Drum-machine/ module/
  • Synthesis Type: Analogue Modelling (I.E. Z1)
  • Polyphony:
  • Max: 10
  • Typical in use: 4 analogue drums, 2 hihat samples, 1 handclap, 1 crash
  • cymbal
  • Multi-timbral (number of parts):
  • Controllers : Knobs:Pitch, Mod Depth, Mod Speed, Mod Type, Decay, Level,
  • Pan,
  • Low Boost, Delay Depth/Time
  • Drum Section :
  • Number of Drum Kits :
  • Number of Drum sounds : 4
  • Keyboard :
  • Number of Keys :
  • Can send on 1 simultaneous MIDI channels
  • Responds to :
  • Sounds can be split by :
  • Inputs and Outputs :
  • Number of Audio Outs (excluding Phones) : 2
  • Number of Audio Ins : 2
  • Number of MIDI Outs (excluding Thru) : 1
  • Number of MIDI Ins : 1
  • Sequencer
  • Memory :
  • Number of Notes : 64/pattern
  • Number of Patterns : 256
  • Number of songs : 16
  • One of the hippest Analog modeling algorithms
  • Two analog voices
  • Digital Effects include Distortion, Tempo delay, chorus/flanger
  • Sequencer 64 steps
  • motion sequence
  • event recording
  • 65,500 events
  • AUDIO IN 1/4" phone jack
