ANOTHER VERSION OF THE VERTICAL FOLDED DIPOLE LOOP ANTENNA

Here is another version of the vertical folded dipole loop antenna.  It has an even smaller footprint.

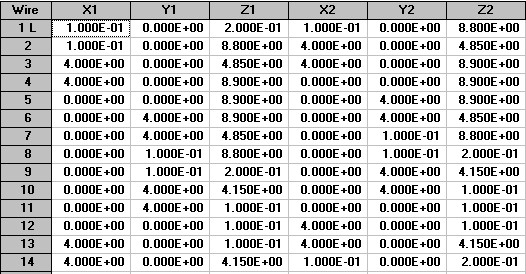

These are the dimensions.  Each wire is #14 and is modeled using 30 segments.



Here is what the antenna looks like.  Note that it is much the same as the vertical folded dipole loop
except that there is a right angle between the two halves of the antenna.

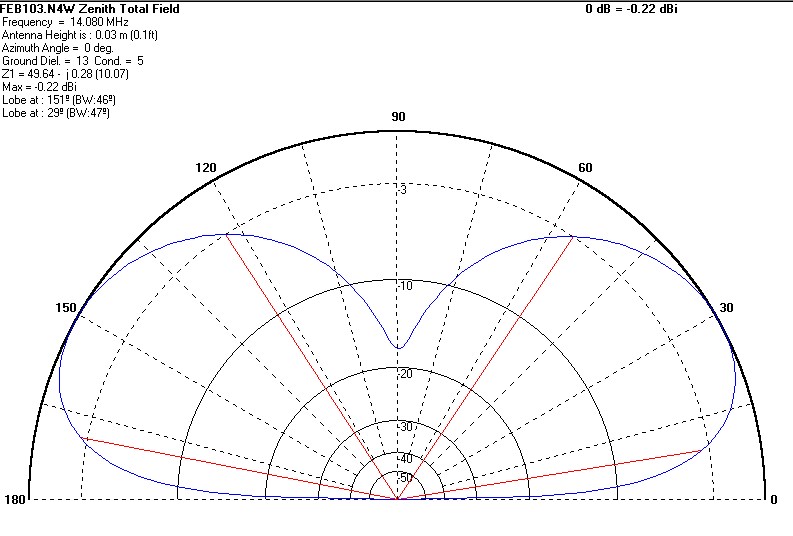

This is the elevation pattern.  Note that the null at the top is not as deep as the other version.  Gain is much the same.


Here is the azimuth pattern at 29 degrees

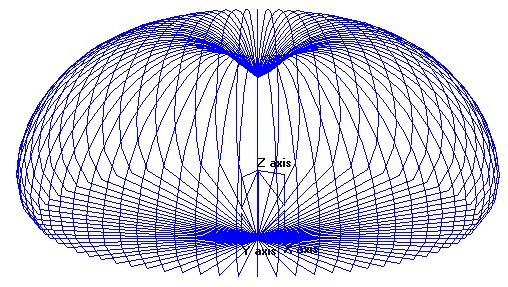

Here is the 3D pattern

This page was uploaded on Feb. 6, 2003.
