Installation of HPS Supercharger with my own custom Intercooler

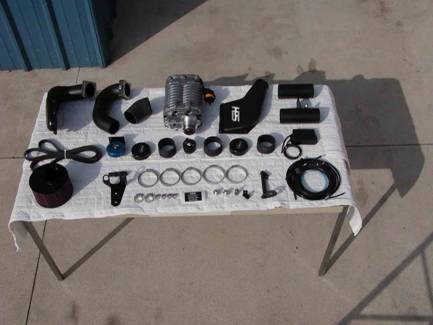

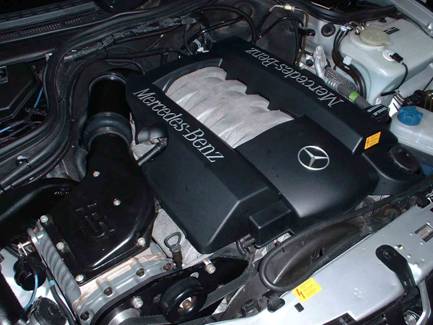

                                  This is the base HPS kit                                                    Note the custom Intercooler from AWC at the top. Coolers are a must.

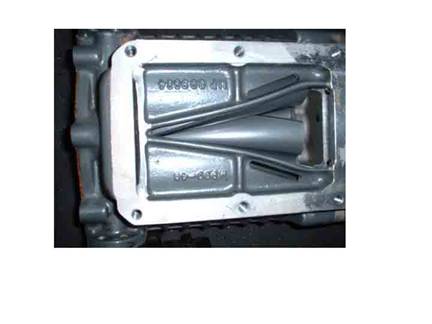

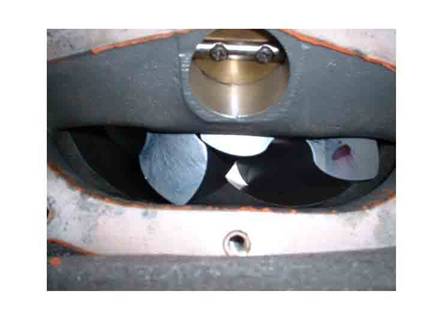

Have you ever seen the inside of a Supercharger?

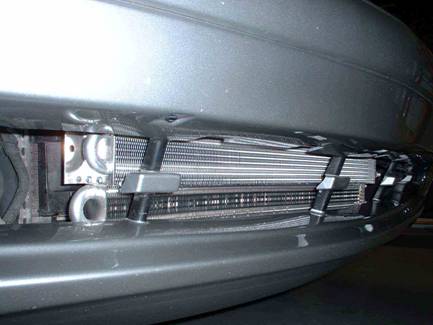

This is the custom cooler at the front of the car

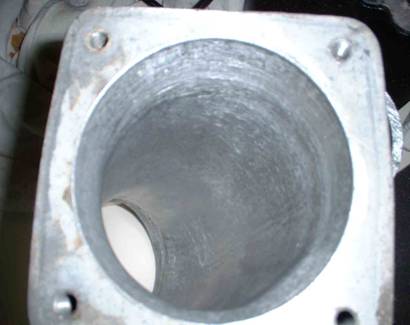

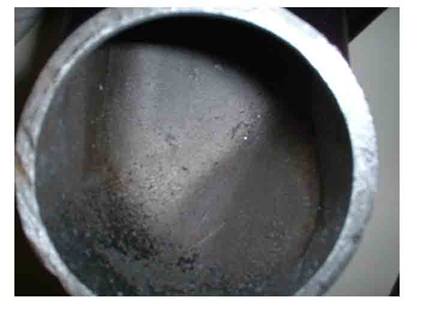

The stock HPS tubing could use some work.  This was an air tube before I cleaned and ported.

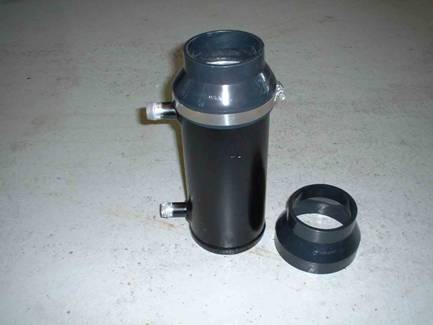

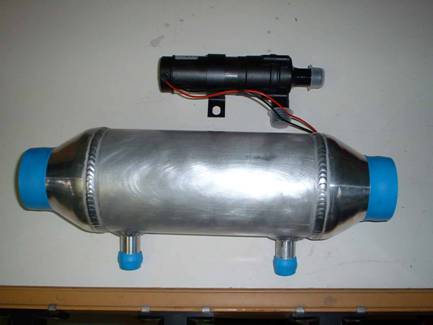

This is the custom Intercooler and water pump.   Below is the Intercooler after painting and removing the ends.

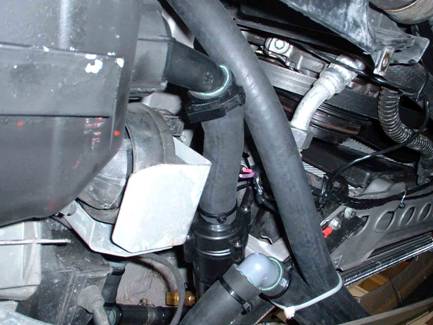

This is a picture looking up at the Intercooler Water Tank and

Pump in the driver side fender well.
