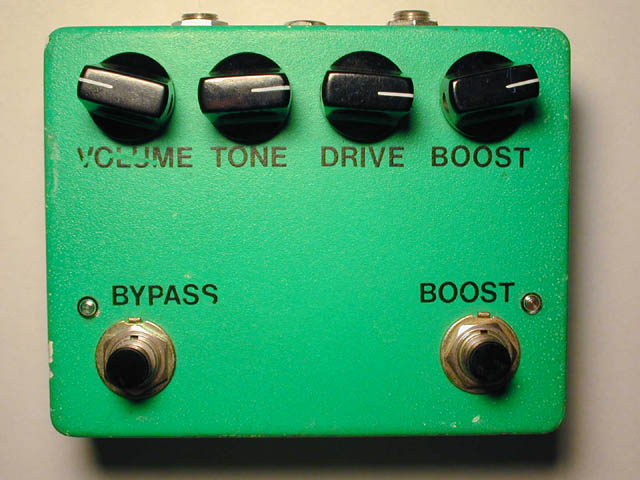

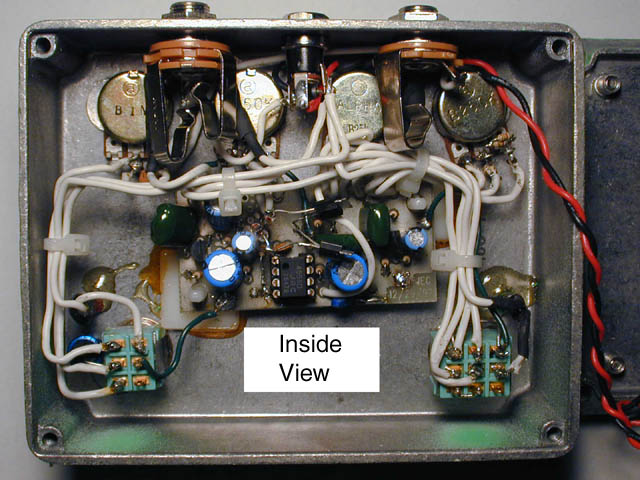

The enclosure is a Hammond 1590BB cast aluminum box. I spray painted
it with a white primer and then florescent green spray paint over that.
After applying the dry transfer lettering I coated it with a clear acrylic.
The paint chips pretty easily and the clear acrylic didn't protect the
lettering very well either. So I try a different method shown below.
The stomp switches are an Augat/Alcoswitch, part number MPG-306D
for the TPDT. The matching DPDT is part number MPG-206N. |
I now have a copy of the schematic (~50K)
available for viewing. It has everything except for the input/output jacks
and power switching. That is all pretty standard and I didn't feel it necessary
to fill up the schematic with it. Actually I was just lazy, who am I trying
to kid? |

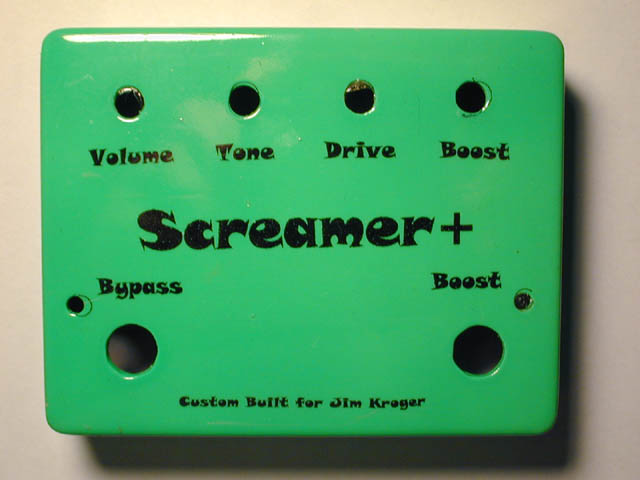

Here is a pic of the new cover I did for a friend.
|
