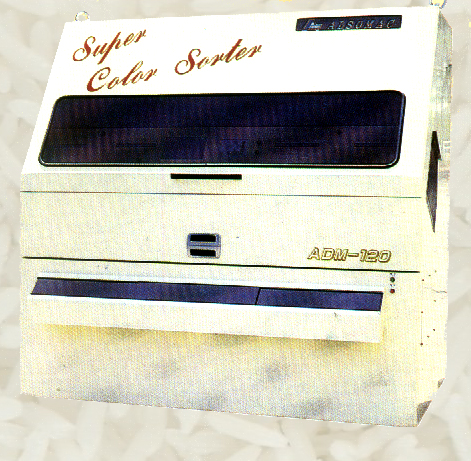

ANZAI SUPER COLOR SORTER

"THE MOST ADVANCE TOOL  IN THE RICE MILLING INDUSTRY..."

ALSOMAC SUPER COLOR SORTER MODEL ADM-SERIES

• SORTING EXAMPLE

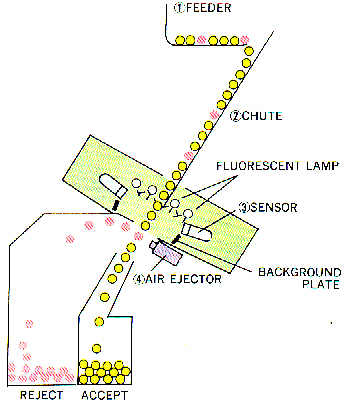

• PRINCIPAL OF OPERATION

• Through the Feeder (1), the materials are fed to the chute (2) to be aligned.

• Sensor (3) inspects each grain of the materials at the same time from two directions.

• If any materials other than the acceptable materials pass the point, the sensor signals to the main amplifier to operate the air ejector (4) to remove the reject materials.

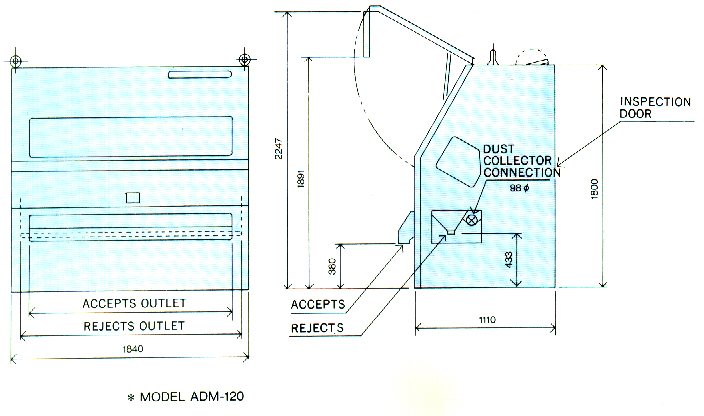

• DIMENSIONS

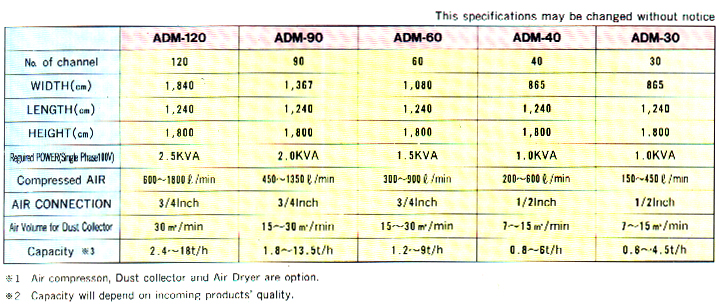

• SPECIFICATIONS
