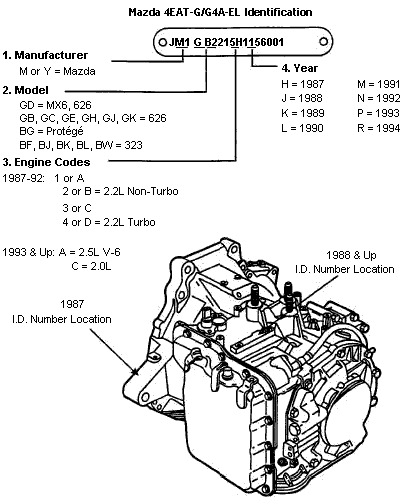

The G4A-EL/4EAT-G was Mazda's
first four-speed automatic. This is an overdrive transaxle in
which all shifts are computer controlled. Line pressure is
operated by a throttle cable. This unit was used first in 1987

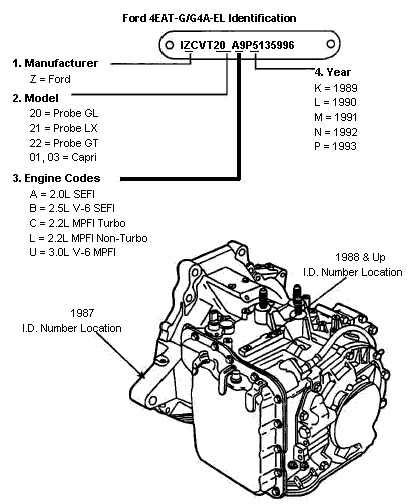

in Mazda 626 vehicles. Ford began using the transaxle, which is
known as the 4EAT transmission, in its 1989 Probe vehicle. It
also was used in Capri vehicles starting in 1991. This transaxle
breaks down into three specific categories: The 1987 2.2L Mazda
626 vehicle ONLY, 1988- 92 non-turbo 2.2L vehicles and 1988-92
turbo & 3.0L V-6 vehicles.
It is mostly
electronic (reason for the "EL" in the name). This
transmission included three shift solenoids, a lockup solenoid,
a vane-type pump, and a throttle cable. This transmission uses
16 operating valves in the valve body and governor for shift
functions. There are also three valves in the valve body that
serve no function, giving the G4A-EL a total of 19 valves.
| Gear
Ratio |
| Gear
Ratio: First |
2.800 |
| Gear
Ratio: Second |
1.540 |
| Gear
Ratio: Third |
1.000 |
| Gear
Ratio: Fourth |
0.700 |
| Gear
Ratio: Final |
3.700 |
| Gear
Ratio: Reverse |
2.333 |
|


|
