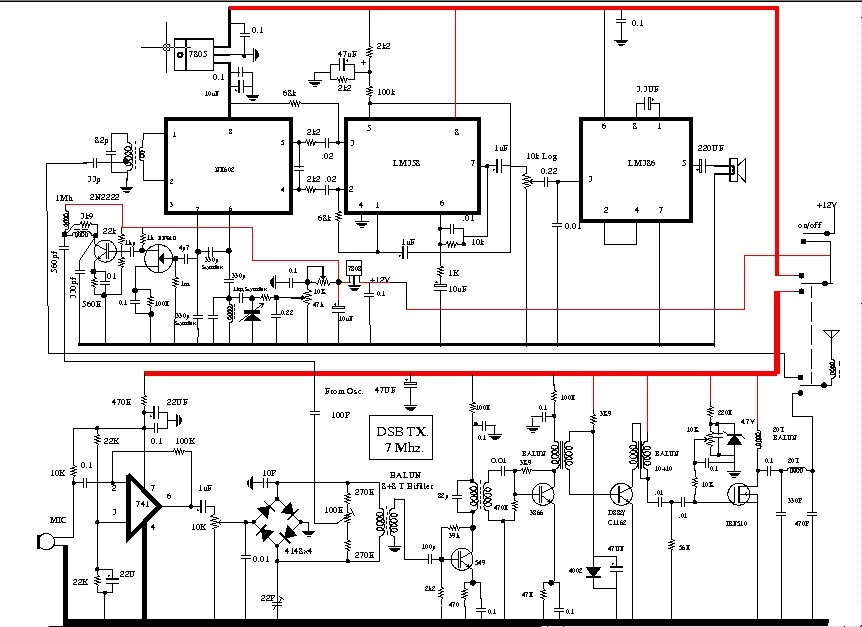

40m.DSB CIRCUIT


H.F.LINEAR Circuit

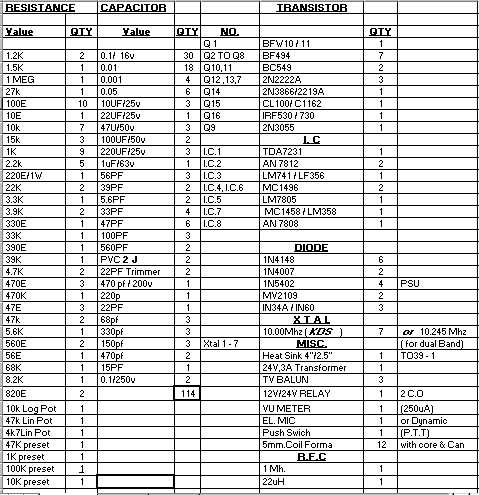

GCM2KL COMPONENT LIST


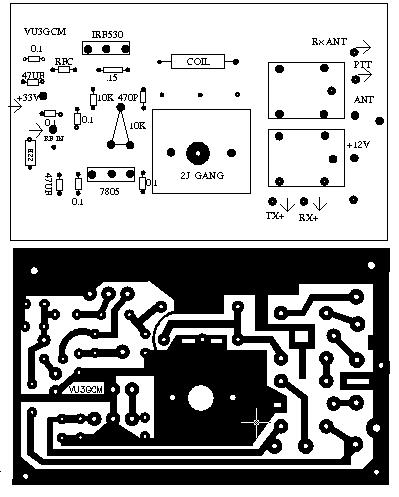

H.F.20W LINEAR PCB

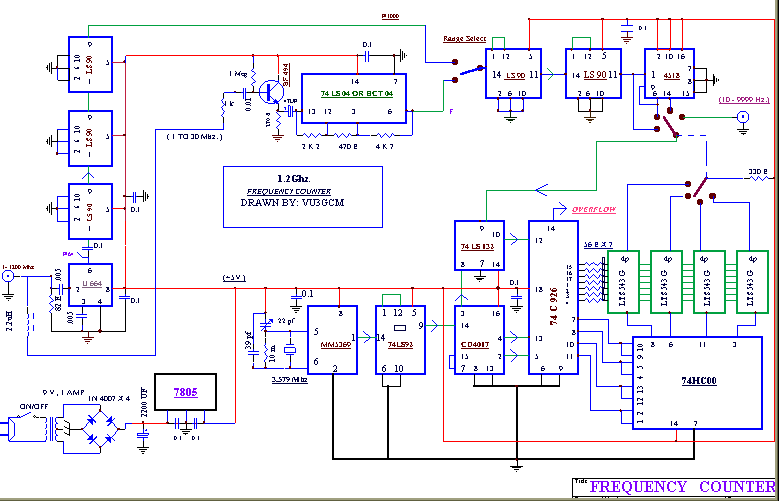

40Mhz Frequency Counter

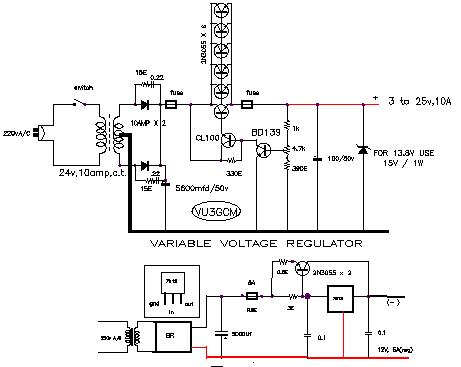

REGULATED PSU

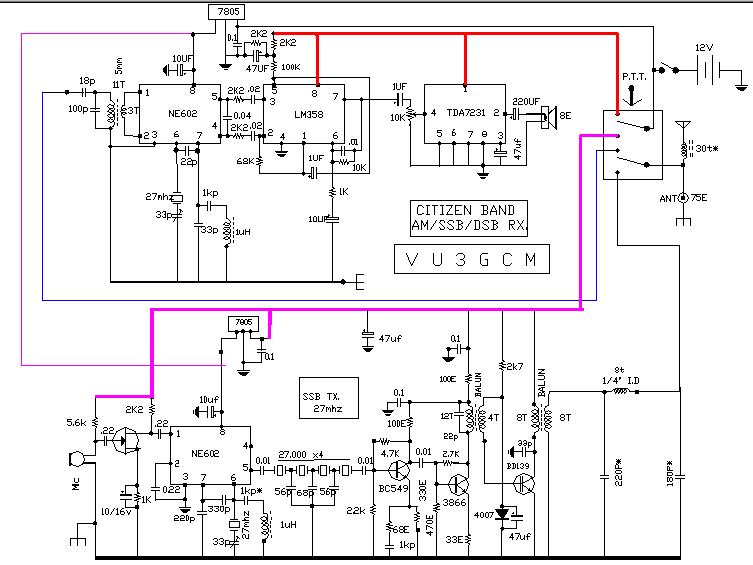

C.B.S.S.B.CIRCUIT

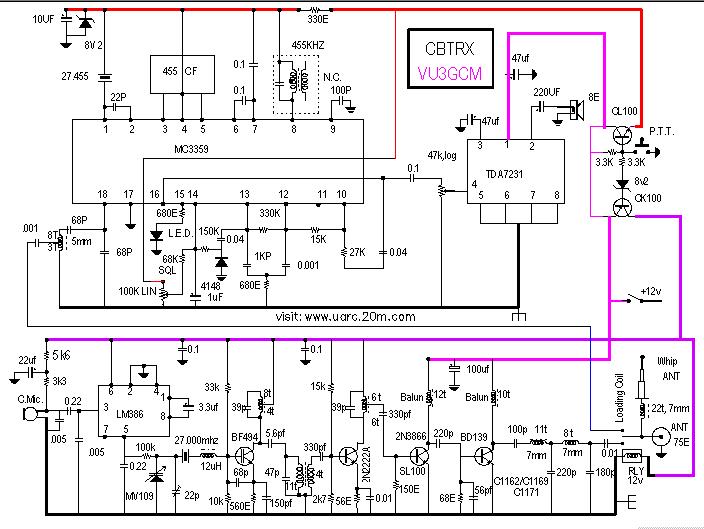

C.B.F.M.CIRCUIT

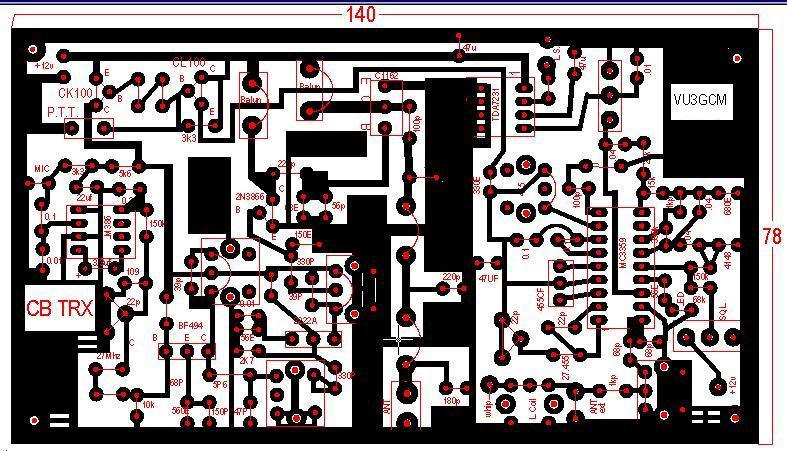

C.B.PCB.DESIGN

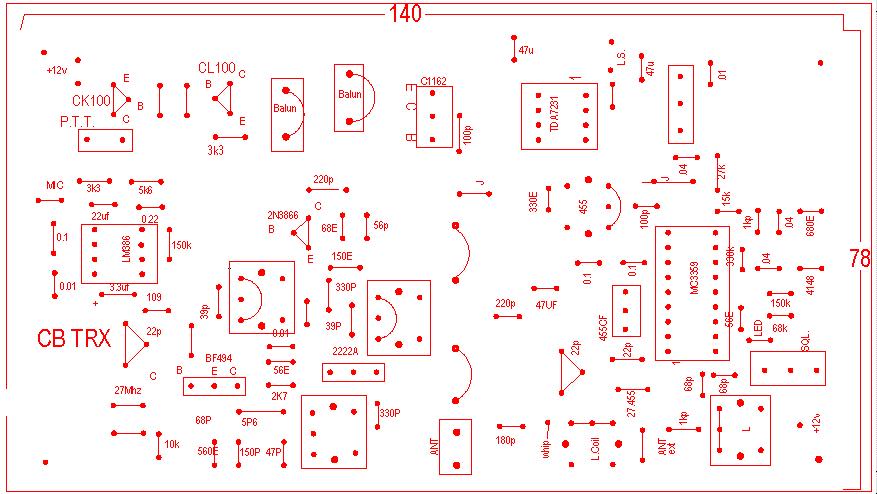

C.B.COMPONENT PRINT

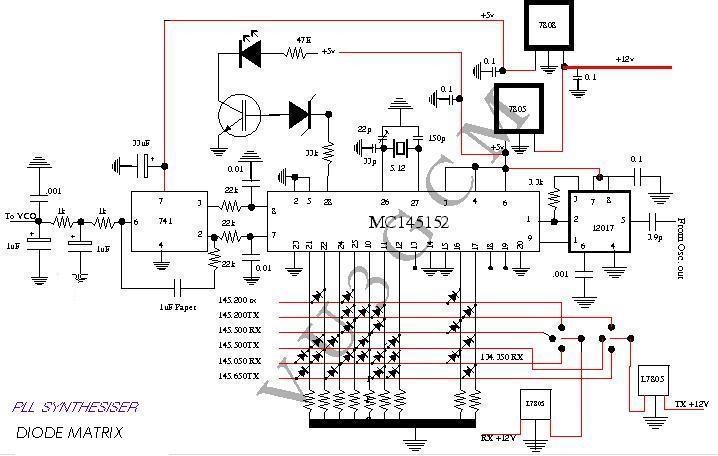

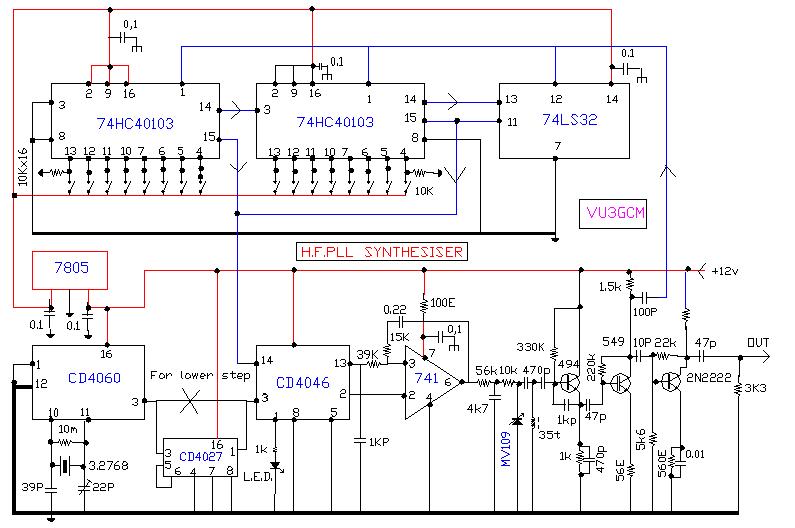

H.F P.L.L SYSR .Circuit

H.F.PCB ComponentPrint

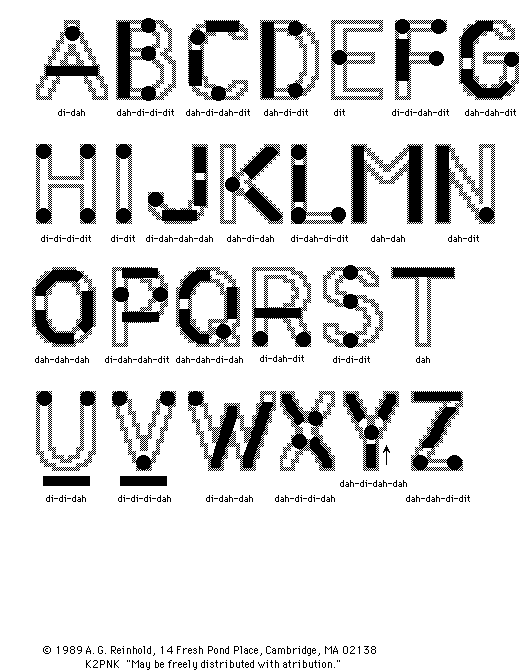

MORSE CODE Picture

MORE CIRCUITS

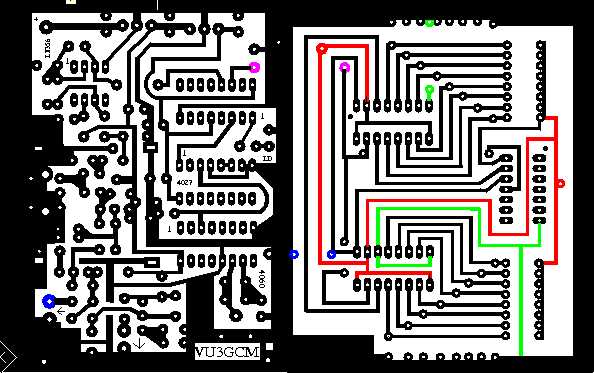

SYNTHESISER PCB

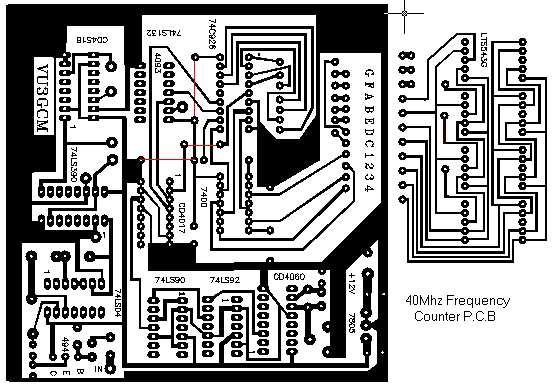

FREQUENCY COUNTER PCB

DTMF Decoder Circuit


P.I.C  Programmer  Site

PIC Programmer Circuit

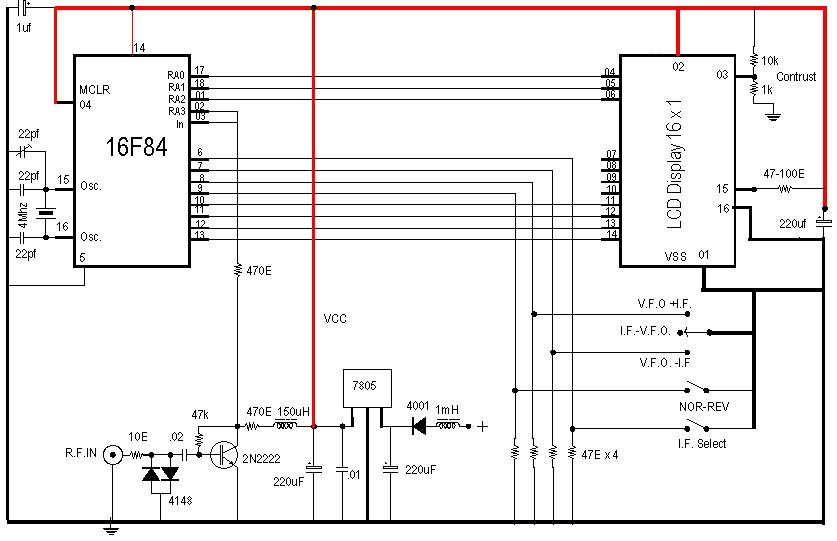

PIC LCD Counter Circuit

PIC LED Counter Circuit

P.I.C Programmer P.C.B

PIC L.C.D Counter P.C.B

PIC L.E.D Counter P.C.B.

PIC L.E.D. Display P.C.B

STUDY MATERIAL

   INDEX

MADE FOR AMATEUR RADIO OPERATORS WHO IS INTERESTED IN Homebrewing


WHAT IS AMATEUR                   RADIO?

Amateur Radio is a fascinating hobby in the field of experimental wireless communication.

Save the Nation during emergency; war; floods; earthquake; fire etc.

Amateur Radio is the art of communication all over the world. No other hobby can bring such pleasure.

Pass A.S.O.C. Exam. & obtain License from W.P.C. Wing.



GCM2KL H.F.SSB TRANSCEIVER                       Members Picture

1200 Mhz. FREQUENCY COUNTER             7w 2meter Transceiver

S.S.B HANDHELD TRANSCEIVER              SWR with ATU Circuit


GCM2KL IN                 DETAIL:

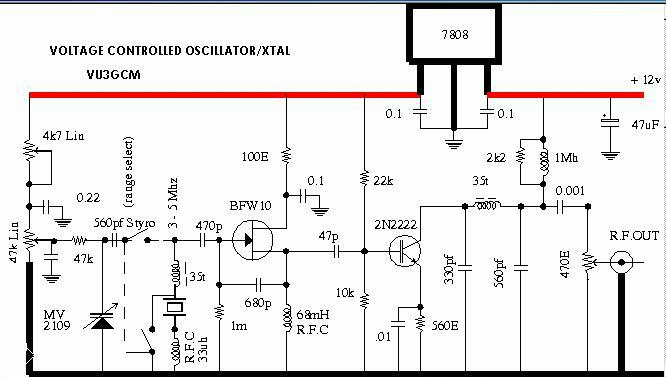

V.C.O/XTAL                                      2K Block Diagram

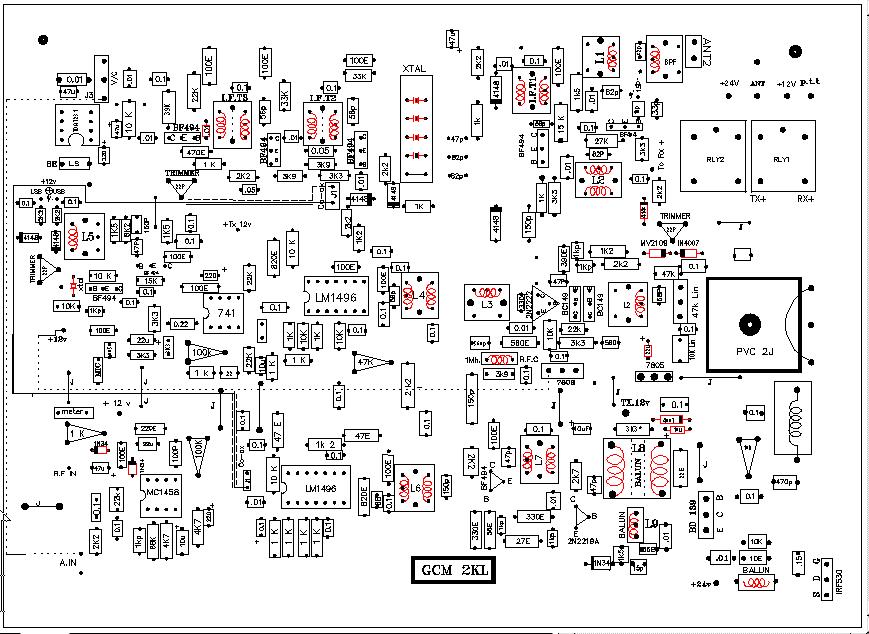

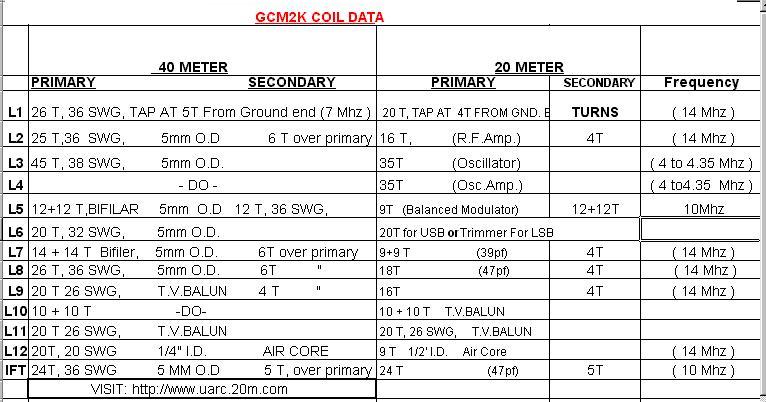

2KCoil Data                   GCM2k P.C.B        GCM2KComponent Print

 H.F.PCB DESIGN                                PIC  Programmer Site

H.F.HANDY TX.P.C.B.                              ECHOLINK  DOWNLOAD

H.F.HANDY RX.P.C.B.                        SSTV  SOFTWARE    DOWNLOAD

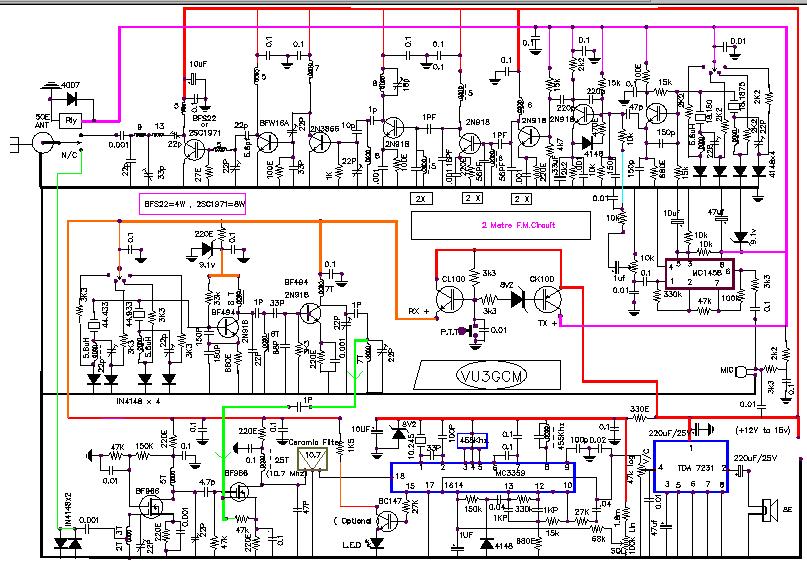

H.F.LINEAR 40W                            VHF PLL CIRCUIT

H.F.LINEAR20W
