             "HiPerMite Audio Filter"

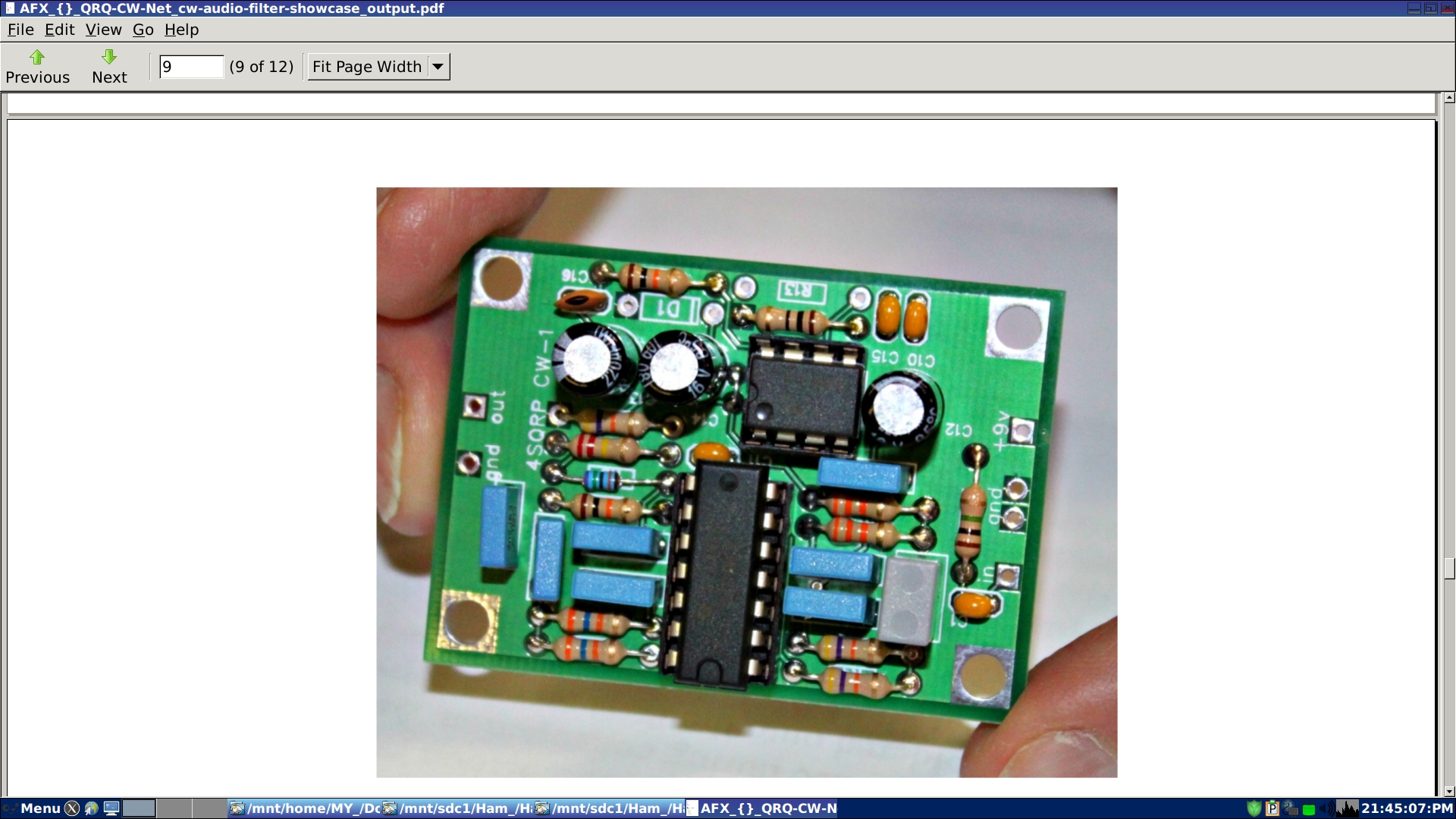

Above is the HiPerMite 2015 Kit assembled.
Stages in the HPM are Lo,Lo,Lo,Hi pass.

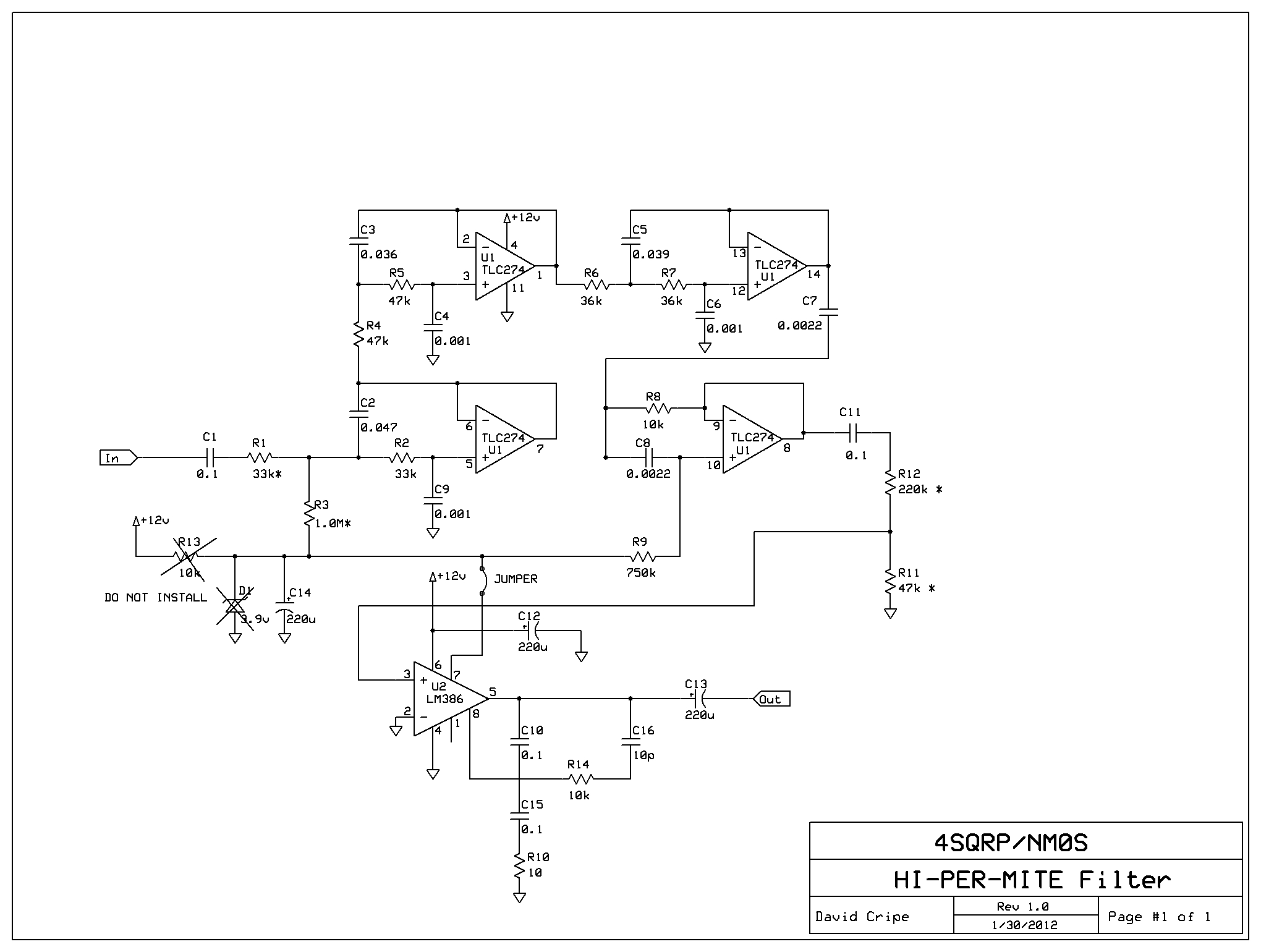

Stages here are VCVS topology ,
and produce a pronounced 'Band Pass" Butterworth shape .

HPM designer Cripe used the VCVS circuit design, which works well.
F(center) is adjusted by adjusting hard-ware components.  No Single f() control.


Precision components required.    Difficult to adjust for component variations.
Be sure to trim and pad resistors to 1% and use precision caps.

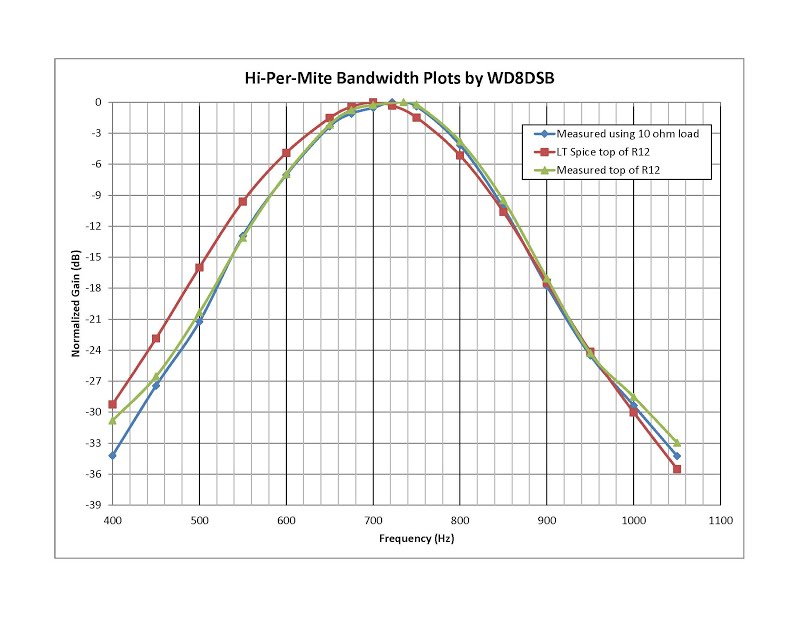

*** This Bode is from WE8DSB

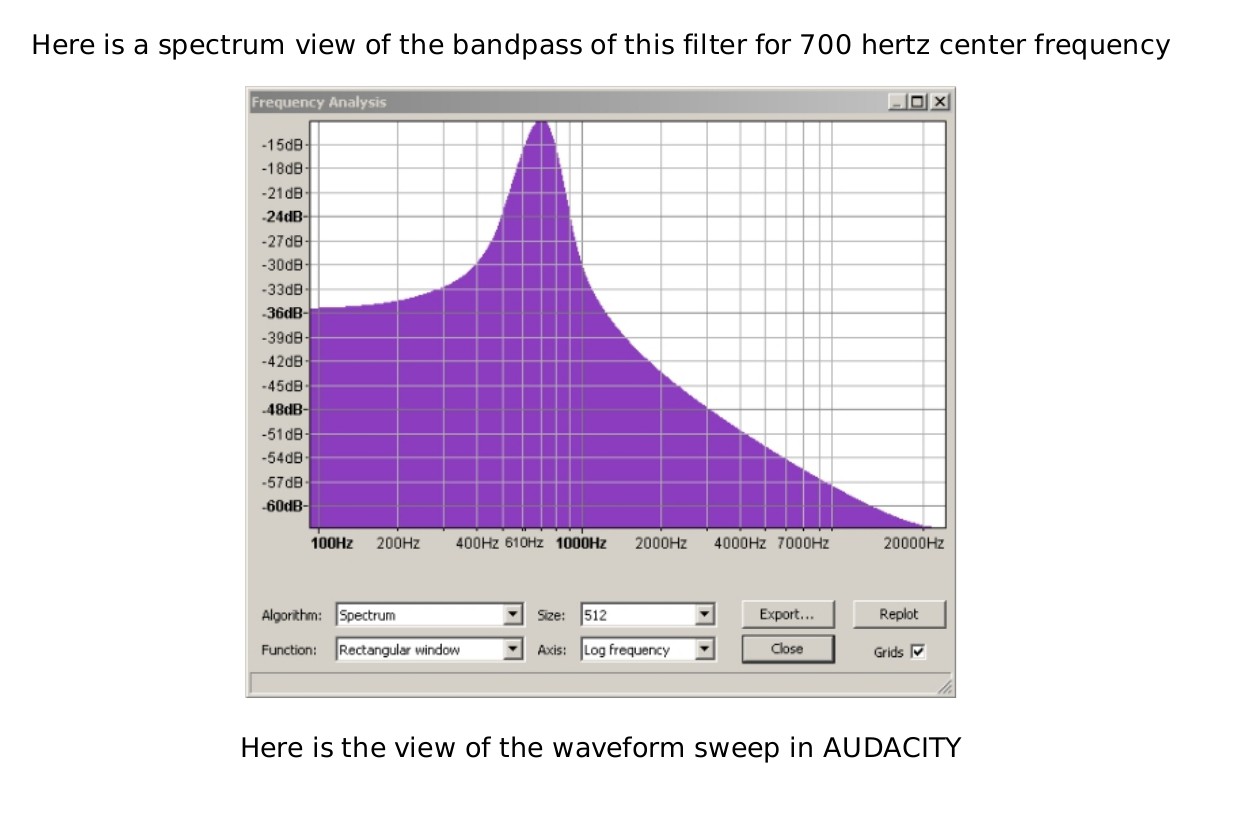

This Bode is from QRQ-CW.net, showing the depth of the filter action.


*********************************************************************************************

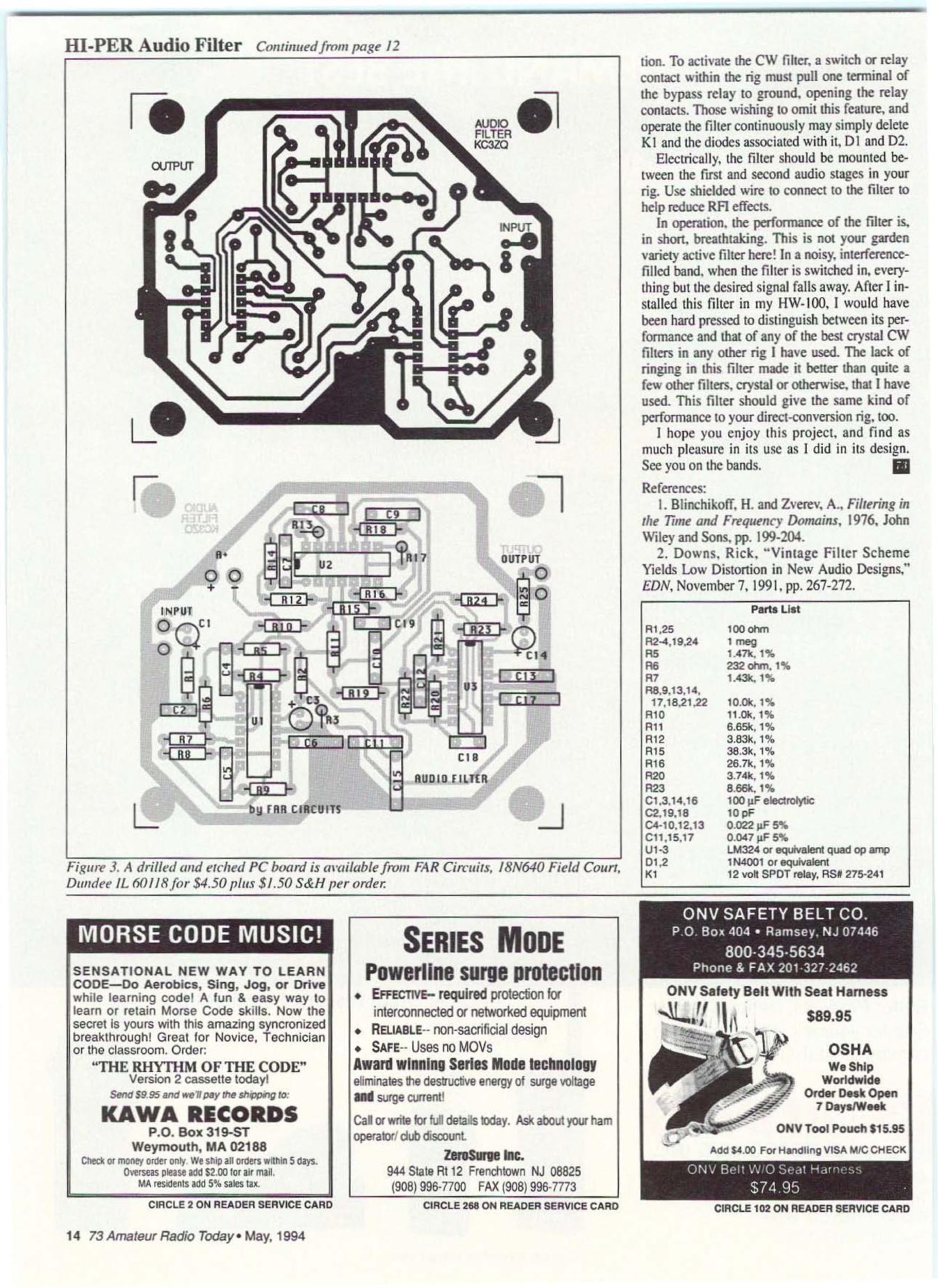

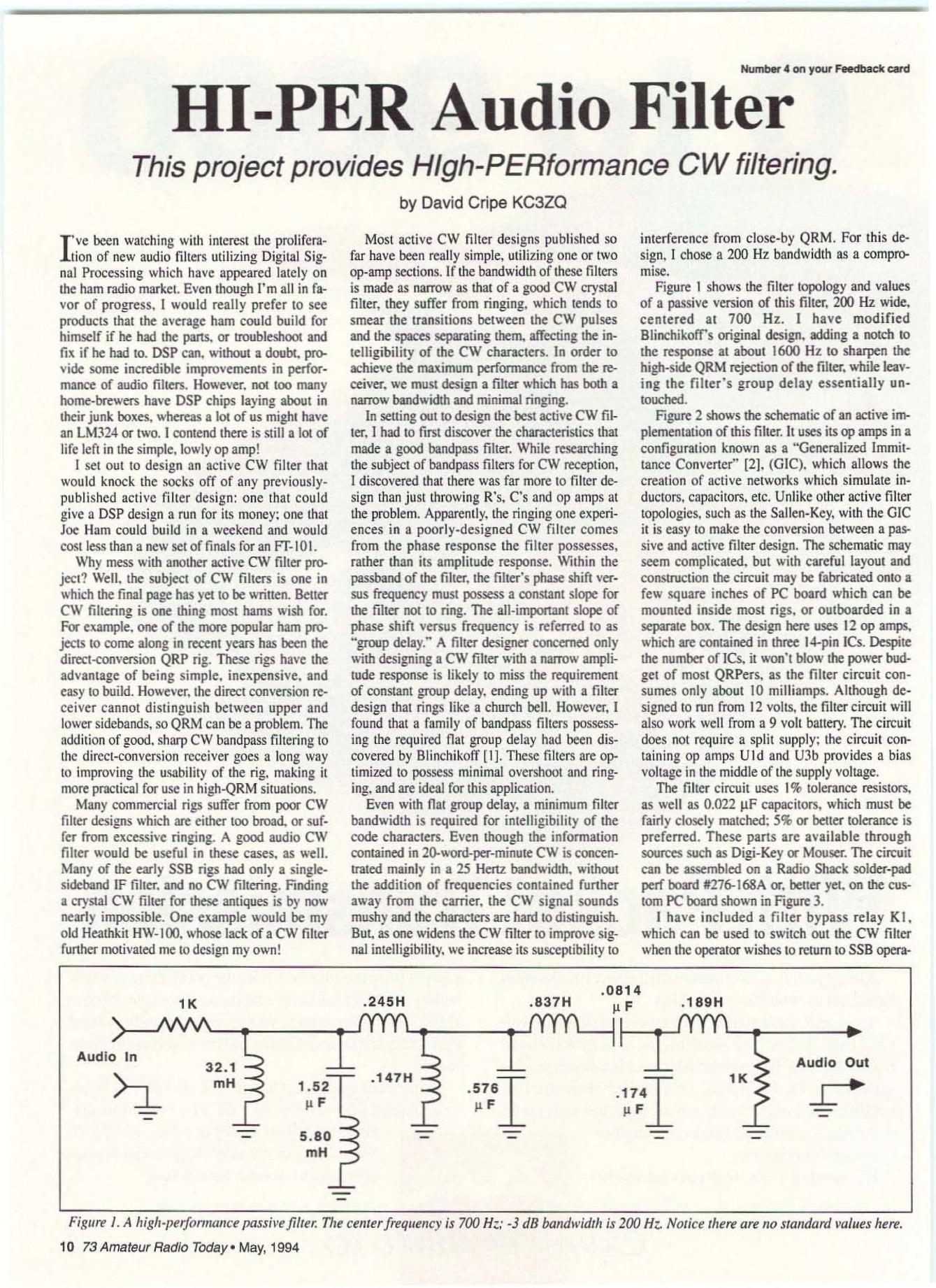

"Original" Hi-Per-Mite article from a 1994 magazine, original 12 chip layout.

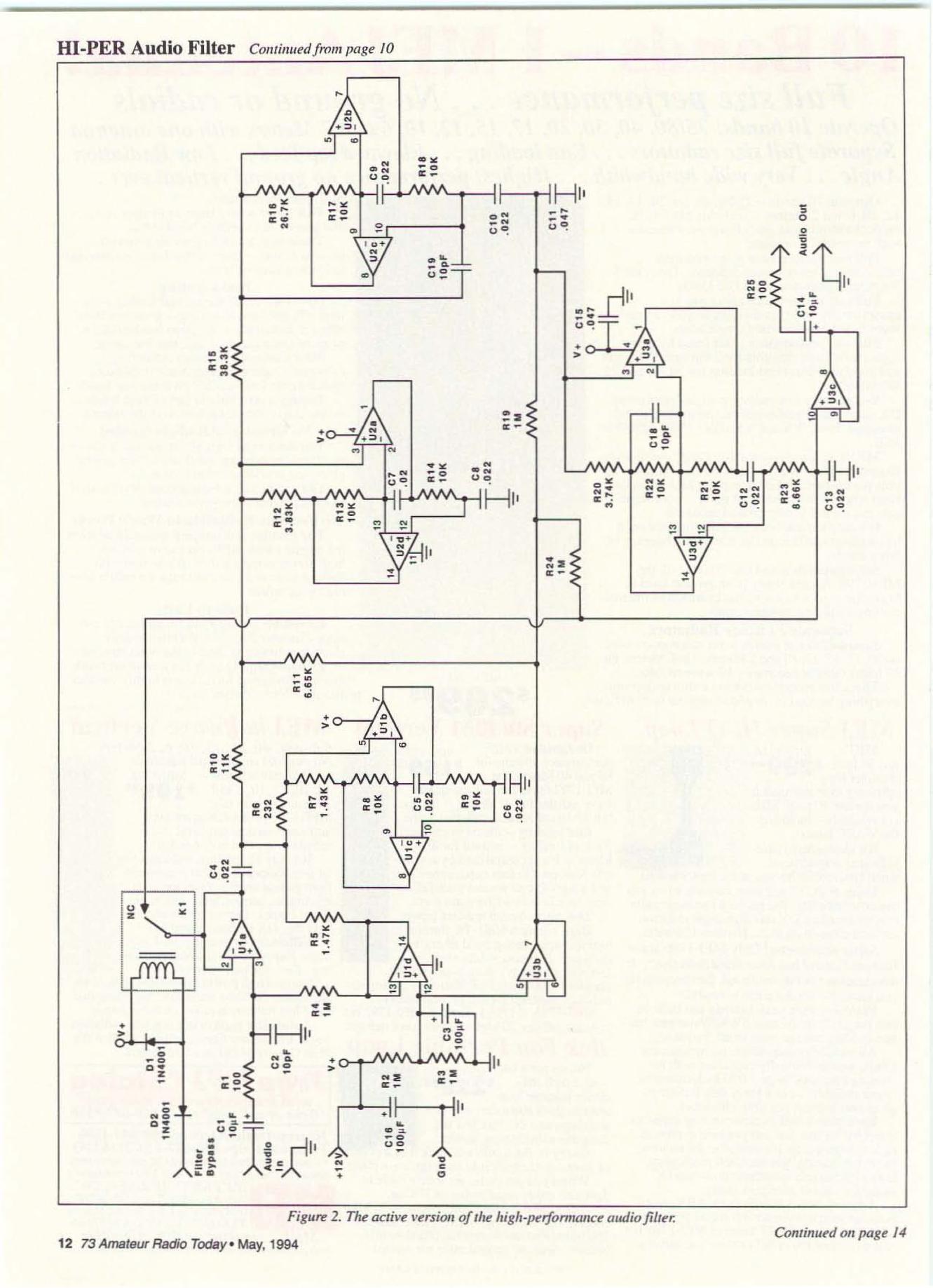

*** 1994 Original Active circuit Schematic.

****************************************************************************************************

****************************************************************************************************
