"THE STREET RAG" Let's stop "Big Telecoms" -HERE'S HOW.--! |
 |
These five previous images above were reduced. Should any be required,contact me or any distributor listed at the end of this page. (IMAGE NO.8)At left, the orbiting satellites are in a near orbit, shown here is a twelve hour orbit with eight satellites in it and all part of one system. With two million stckholders each owning a share ($100.00 each maybe),we could have access to all on this planet should they all do the same, owning theirs,and it can all be free communications forever. Installation and upkeep with that money may last us twenty years. We then repeat the same indefinitely.Since all human beings on this planet have the right to the band spectrum we must request it back.The U.N. who permitted coporations to bid on them to exploit us in the past should make them do so, and as we need it for our own systems. Although , as usual, those affected would object, they like us must move on to new possibilities.For instance the launching means by many countries such as China, Russia, Arianne,Nasa, etc. , the orbiting satellites,maybe by Pakistan, the cellular stations made maybe by Afganistan, toroid antennas(shown at right)made by firms probably in Libya, existing and new broadcasting stations,fax, and many other communications then could create new areas for development and growth.One can just imagine having ,(as shown four images down) a neck mounted "cellular-stereo-beeper" unit with the new shirts, blouses,sweaters, dresses,etc, all having provisions for the unit so when they,the user, when preparing for the day,could mount that unit around their neck and out of sight(continued five lines down.) |
 |
(Note: The first three lines in this image are a rescan of the image above,ignore them.It's content is the continuation of it.)(At left, IMAGE NO.9) Because every one can own, across the planet ,their own cellular and have free access to communicate to all it will be obvious for the clothing industries to include the central pouch on all garments like shirt pockets at present.(for India And Philippines). A few days ago(5/21/98) a stationary satellite went awry making all beepers useless for several days,in this near orbit system having 8 satellites, should one fail the other seven can within a few hours slightly reposition themselves to 51.4 degrees and still be receptive on 60 degree toroid antennas on earth wether at the cellular or broadcasting stations,and even the toroid antennas at home. As mentioned in images No.8+9 ,of course the giant corporations will object..but...,if every two million users own their local facilities, as stockholders, all use of them will be free. Not long ago excerpts of this idea was presented to the public in early 98, since then..., it scared the phone companies into lowering their rates. the same with the E.V.system above see image 1+2, it made the gas prices go down substantially.(Also see three images down for your new neck mounted cellular-stereo set).Type In Here!! |
 |
(IMAGE NO.10)These toroid antennas ,millions will be required can be ,with conditions,built by Libya for helping their economy. The image at right is an excerpt of "The street rag" issue No.130 page 1. Instead of a dish antenna, this one shown (not to be confused with a segmented dish unit) is a toroidal one.It has a radial curve(arcuate)on the 'horizontal' plane and a hyperbolic one on the vertical one with a series of horns at near proximity to the reflector, central on the horizontal plane or a single horn if placed far enough to have all echo signals refract at one point. Thus all satellites in view ,fixed or moving relative to earth, can be sending their signals without any lost contact. Since all multiple satellite systems in near orbits (8 or more) would be scanning all the ground toroid antennas, described earlier,every system would continually have access to all on the planet aswell as to each ohter's system owned by each and every one of us as stockholders with all communications free for all of us. I.E. All user owned systems wiht minimal costs for repair and upkeep with afew bucks needed two decades later to keep those systems in operations. (Type In Here!!) |
 |

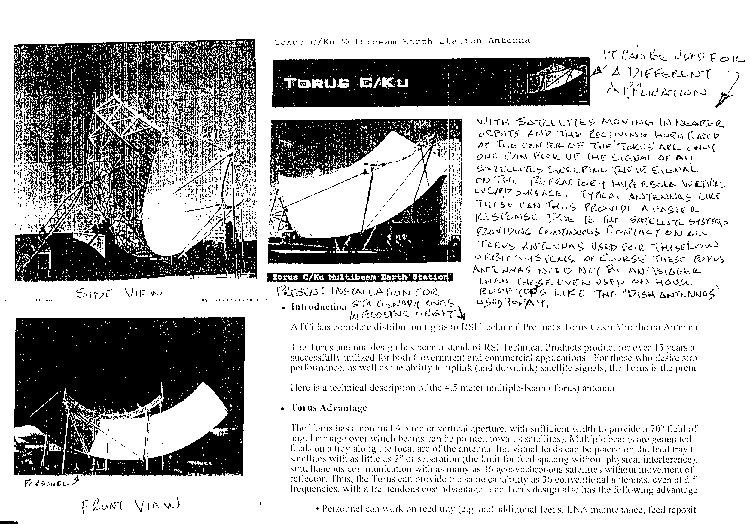

above(IMAGE NO.11)These toroid antennas above are existing and presently used only for stationary satellites in the 24 hour orbit and are equipped with multiple receiving heads but the new satellite systems suggested in near orbits could with a central focal point require only one head instead making it much simpler and cheaper if used (Cont.) |
 |

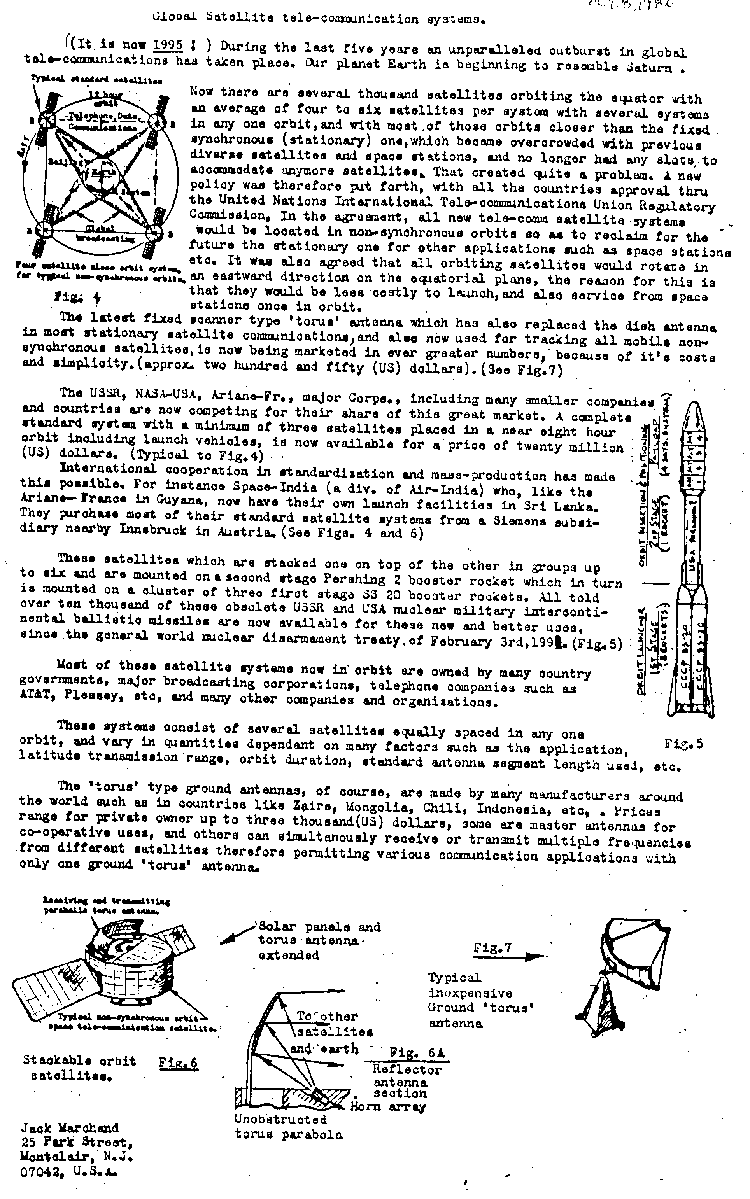

(IMAGE NO.11a above -- Dec.4th,1987--Enlarged later)(Cont.) |
 |

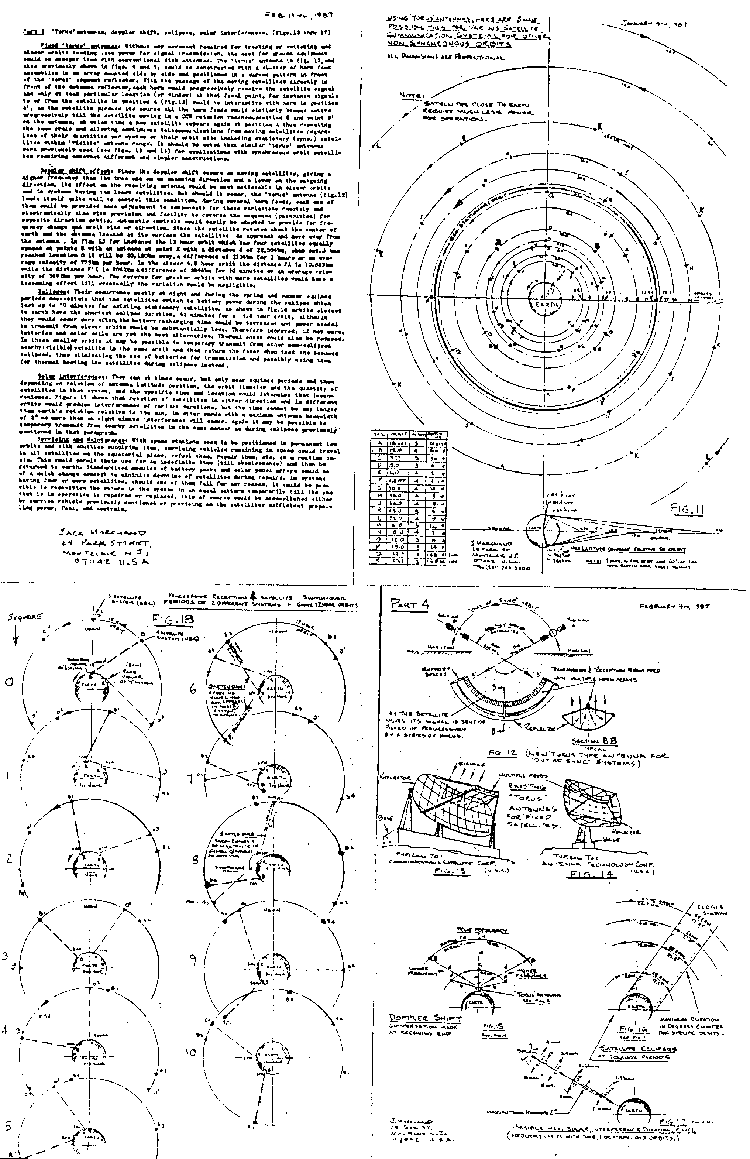

(IMAGES NO.11b above -- Oct10th to Dec 4th,1987--Enlarged later)(Cont.) |
 |

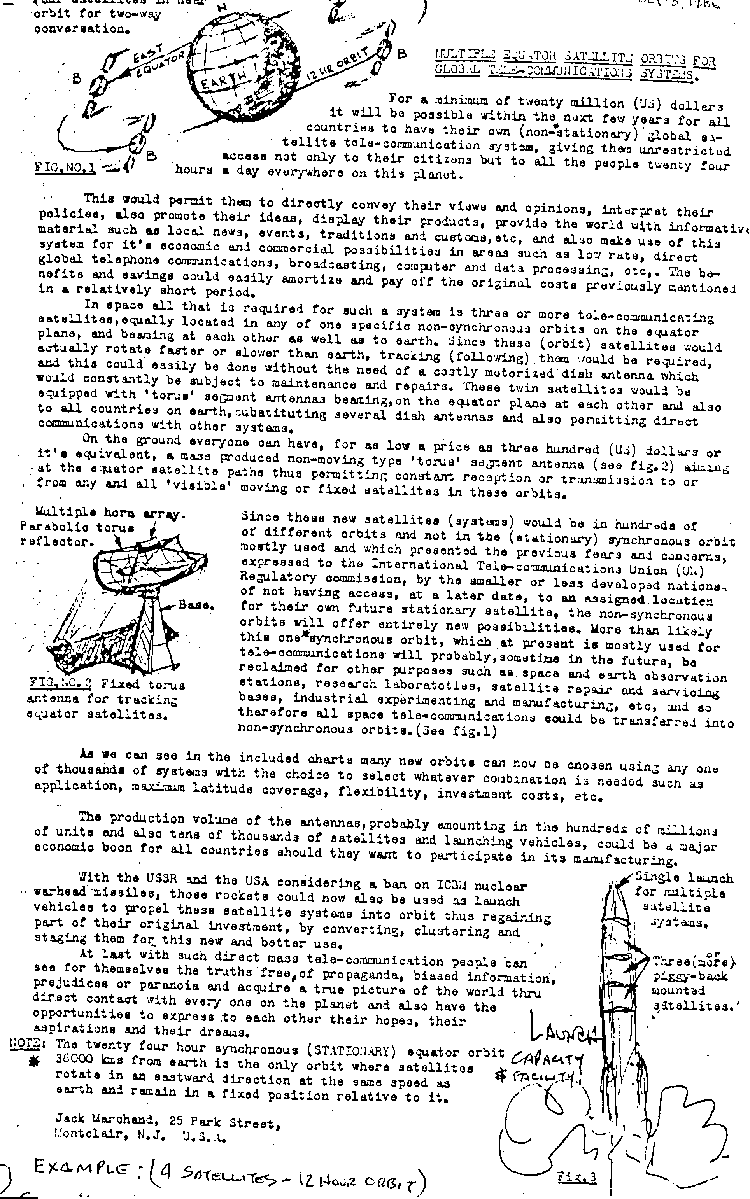

| (IMAGE NO.11c above -- Oct10th to Dec 18th,1986--Enlarged later) (Cont.) |
 |

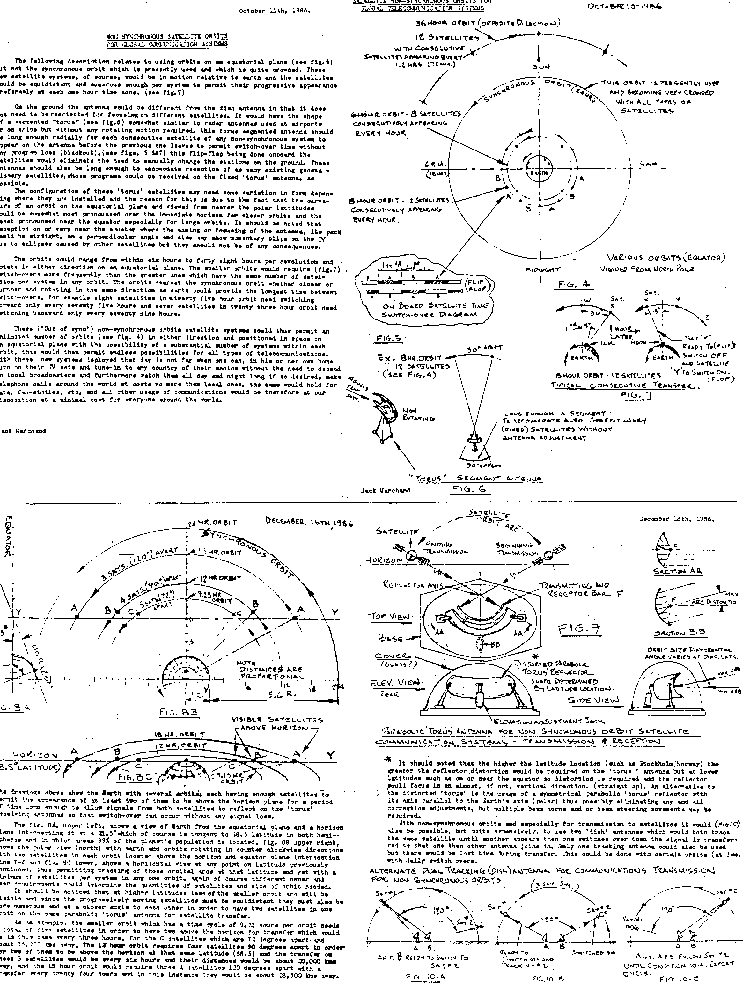

| (IMAGE NO.11d above -- Jan.9th,to Feb.9th 1987--Enlarged later) (Cont.) |
 |

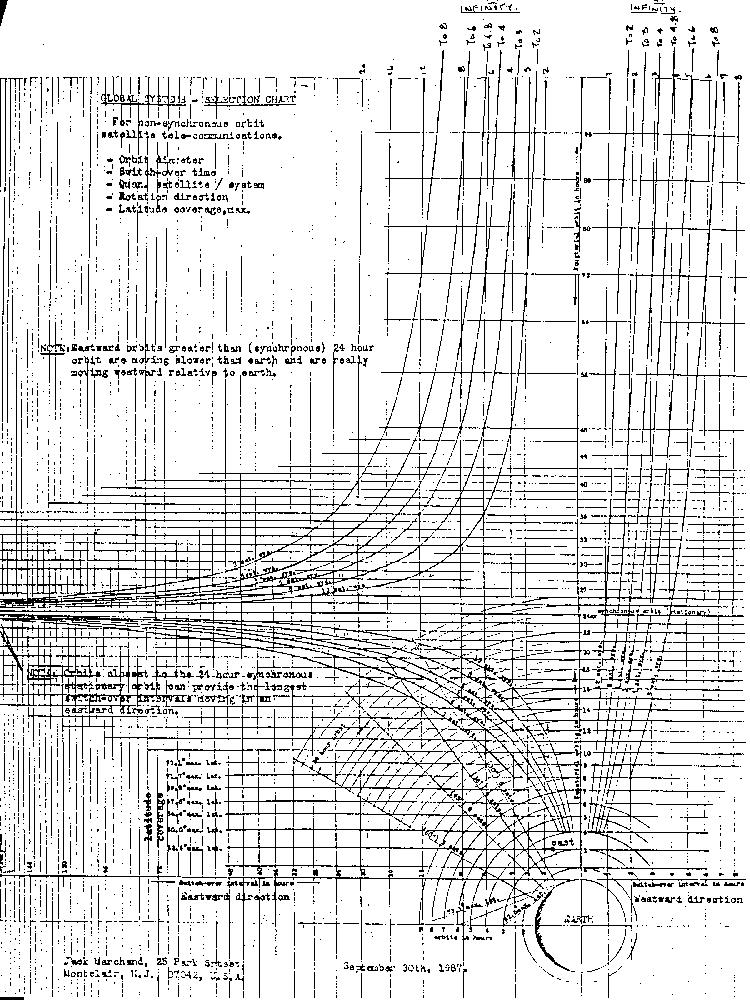

| (IMAGE NO.11e above -- Sept.30th,1987--Enlarged later) (Cont.) |
 |

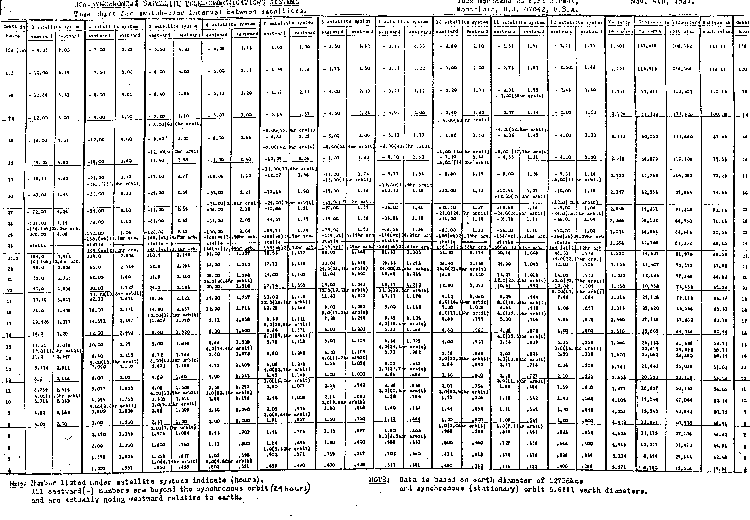

| (IMAGE NO.11f above -- Nov.4th,1987--Enlarged later)This is a chart (based on Kepler formula)showing various possible orbits(non-stationary ) which can be used. They range from 4 hours (at bottom) to 186 hrs at the top of the chart. The near orbits such as 8hrs to 12 hrs may be the preferred ones due to the short response time loss.The chart also gives the switch over time between appearing satellites and in a specific direction with the number of satellites per system. (Cont.) |
 |

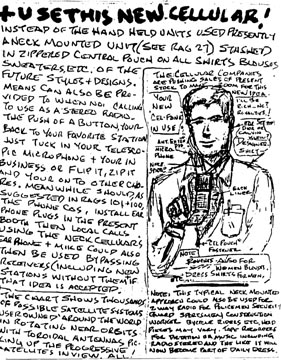

IMAGE NO.12)The cellular phone shown could be altered to accomodate the user while having it hanging high at the neck and stored in garments providing protection while out of site. For a decade now, using a regular stereo such as a "walkman" with a neck band fastened to it,I was able to make use of it every day from morning till night removing it only to sleep, during which time I'd plug it to my charger mounted to the wall inlet. AT no time were the batteries ever removed until they were unable to be recharged again.As mentioned in no.8, soon all our clothing,even children's will provide for it. Like wearing glasses or a watch ,we'll provide a pouch for a neck suspended 'cellular-stereo- beeper'within it and it will be part of our morning dressing up also. North Korea can make them ,with conditions also. As soon as mentioned in no.8 all communications become user owned and free this whole picture will evolve...finally. Then to use the cellular, you put your 'ears' on, lower the phone dial flap as shown make the call,pull the telescopic mike out, zip up and chat (with your hands in your pockets). After the call,push the microphone back down and thru the clothing, and by pushing a button, you switch back to your favorite stereo program or the AM band.LikeRadio-Shack's wireless home stereo headset and the hidden hearing aid units presently available as shown in previous 'street rag'issues no wires will be needed from the neck mounted unit to the users ears if its their choice (as soon as nokio, motorola etc. pay me a royalty maybe they'll make 'em for North Korea if they ,for awhile can't or don't want to...No?) Type In Here!! |
 |

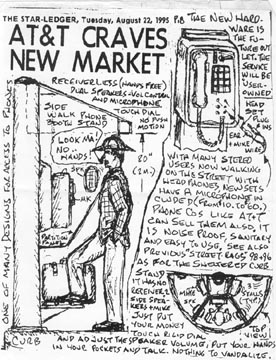

(IMAGE NO.12a)This phone station comprising three units in this case can be mounted to any pole on the street eliminating cluttering any city with extra obstructions. Simplicity is the name of the game. It could act as a rain shelter by a bus stop when no one calls, also a sun shade etc. As a phone it has several new features not available now. For instance it has no receiver-speaker to hold or be damaged by vandals. The 60 degree partitions have mounted on them a speaker on both sides of the caller at approx 5 ft. with a volume control nearby the microphone at the center on the dialing box which is typical to present ones . On it also an added feature provides plug-in holes for a stereotype headset even those including a mouthpiece(mike) which would permit, on the noisiest streets, listening without any difficulties.Even lap tops could then be used if provision to support it is available. i'll design it also if need be. ..(cont) |
.
